Lenovo ThinkServer RS160 User Manual

•“RemovingthePCIecard”onpage56
•“InstallingthePCIecard”onpage56
Notes:
•ThePCIecardissensitivetoESD.Ensurethatyoureadandunderstand“Handlingstatic-sensitive
devices”onpage46firstandcarefullyperformtheoperation.
•Dependingonthespecifictype,thePCIecardmightlookdifferentfromtheillustrationsinthistopic.
RemovingthePCIecard
ToremovethePCIecard,dothefollowing:
1.Prepareyourserver.See“Preparingyourserverinadvance”onpage47.
2.RemovethescrewthatsecuresthePCIecardtotherisercardassembly.Then,graspthePCIecardby
itsedgesandcarefullypullitoutofthePCIecardslotontherisercard.
Note:ThePCIecardmightfittightlyintothePCIecardslot.Ifnecessary,alternatemovingeachsideof
thePCIecardasmallandequalamountuntilitiscompletelyremovedfromtheslot.

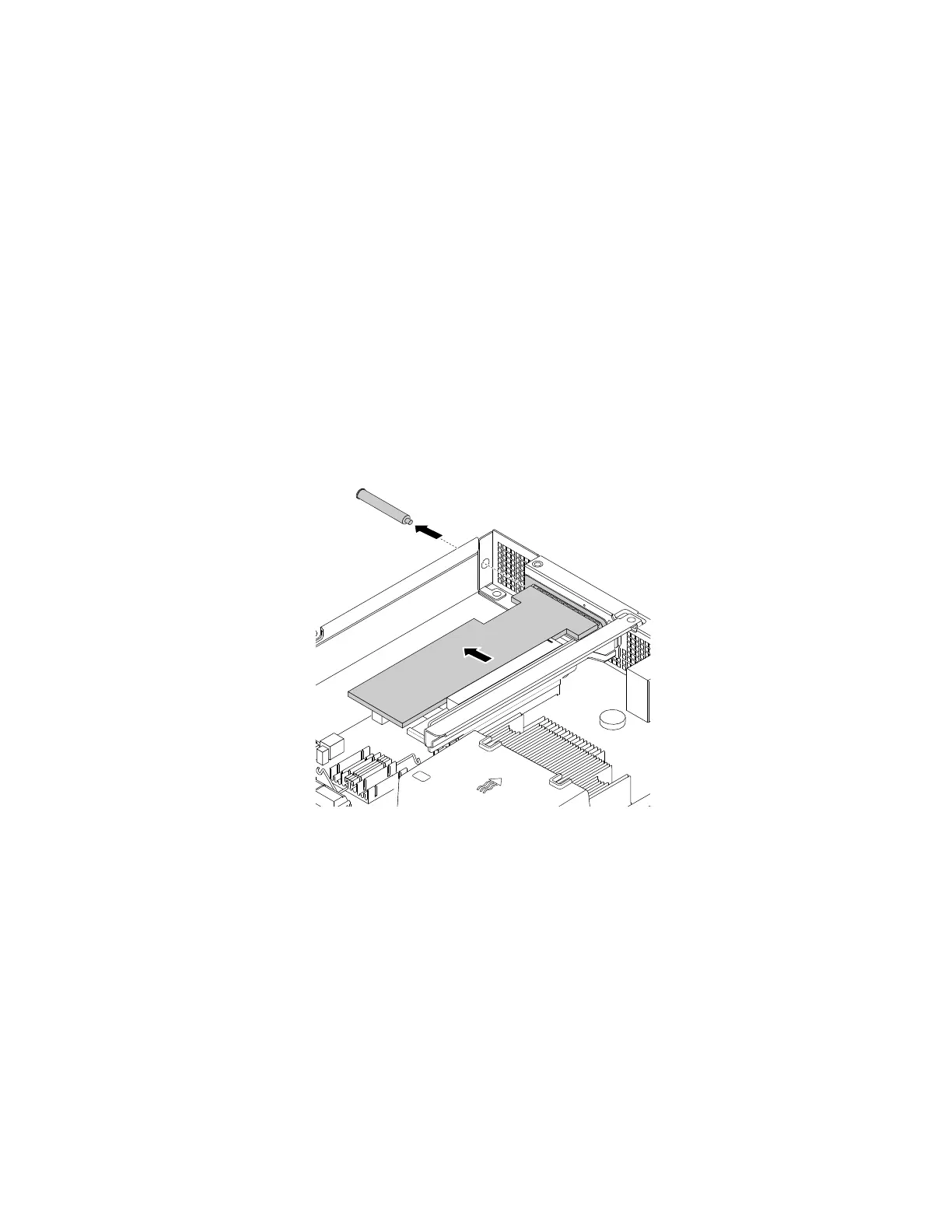

Figure29.RemovingthePCIecard
3.DisconnectanycablesfromthePCIecard.
4.InstallanewPCIecardtoreplacetheoldoneorinstallaPCIe-card-slotbrackettocovertheplace.See
“InstallingthePCIecard”onpage56
.
5.IfyouareinstructedtoreturntheoldPCIecard,followallpackaginginstructionsanduseanypackaging
materialsthataresuppliedtoyouforshipping.
Tocompletethepartsreplacement,goto“Completingthepartsreplacement”onpage95.
InstallingthePCIecard
ToinstallthePCIecard,dothefollowing:
1.Prepareyourserver.See“Preparingyourserverinadvance”onpage47.
2.Dooneofthefollowing:
56ThinkServerRS160UserGuideandHardwareMaintenanceManual
