1.Connectthefollowingtypeofmini-SAScabletotheRAIDcardasshown.
Note:Intheillustration,connectors0and1willbeconnectedtothecorrespondingsignalconnectors
ofHDD0andHDD1.Theremainingconnectoristhepowerconnectorandwillbeconnectedtothe
powercablefromthepowersupply.
0
1

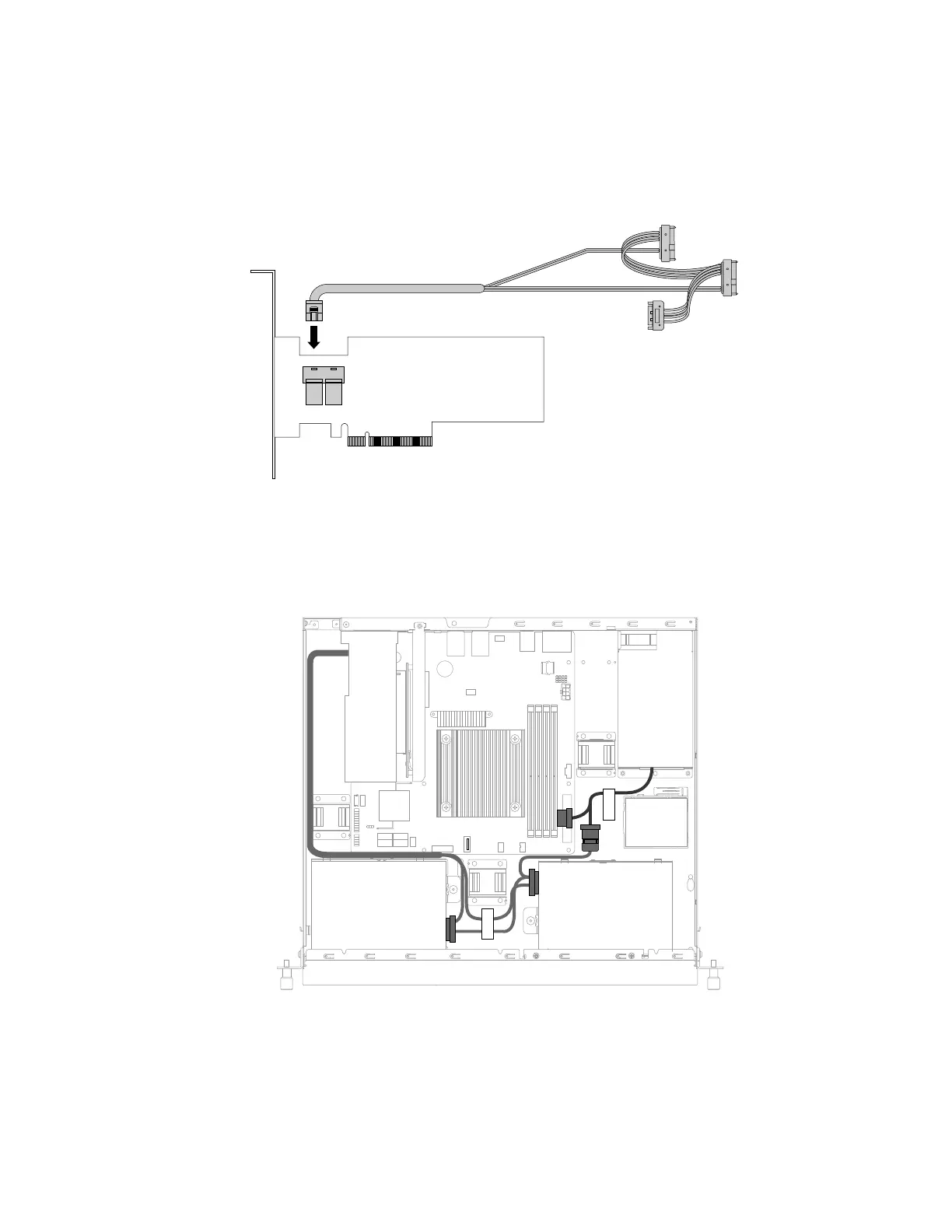

Figure15.Connectingthemini-SAScabletotheRAIDcard
2.InstalltheRAIDcardtotherisercardassembly.See“InstallingthePCIecard”onpage56.
3.Connectthemini-SAScabletotheHDDsandanyoneofthepowercableconnectorsasshown.
Figure16.Connectingthemini-SAScabletotheHDDsandpowercableconnector
4.Routethecablesusingthecableclipsortiesinthechassis.
Connectingtheslimopticaldrive
Note:Theslimopticaldriveisavailableonsomemodels.
Chapter3.Productoverview23
