2.IfthereisaPCIecardinstalledontheoldrisercardassembly,removethePCIecard.See“Removing
thePCIecard”onpage56
.
3.Removetheoldrisercard.See“Removingtherisercard”onpage58.
4.Touchthestatic-protectivepackagethatcontainsthenewrisercardtoanyunpaintedsurfaceonthe
outsideoftheserver.Then,removethenewrisercardfromthepackage.
5.Alignthescrewholesinthenewrisercardwiththecorrespondingonesinthebracket.Then,installthe
twoscrewstosecuretherisercardtothebracket.

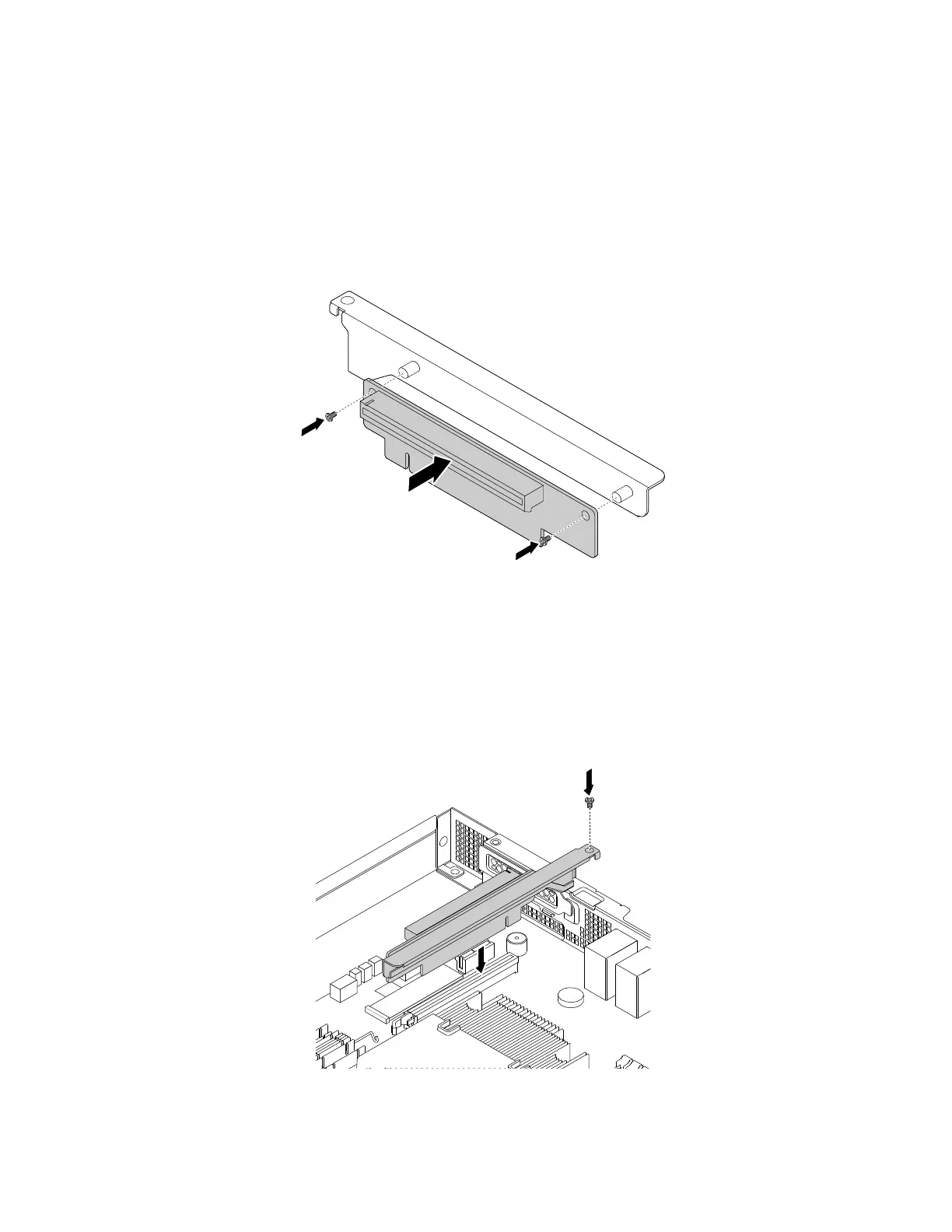

Figure34.Installingtherisercard
6.Positiontherisercardassemblyonthechassisandalignitwiththerisercardassemblyslotonthe
systemboard.Alignthescrewholeintherisercardassemblywiththecorrespondingholeinthe
chassis.Then,carefullypresstherisercardassemblystraightdownintotheslotuntilitisfullyseated.
Then,installthescrewtosecuretherisercardassemblytothechassis.
Figure35.Installingtherisercardassembly
60ThinkServerRS160UserGuideandHardwareMaintenanceManual
