3.RemovetheRAID520ikeyfromtheLenovoThinkServerRAID520iPCIeAdapter.

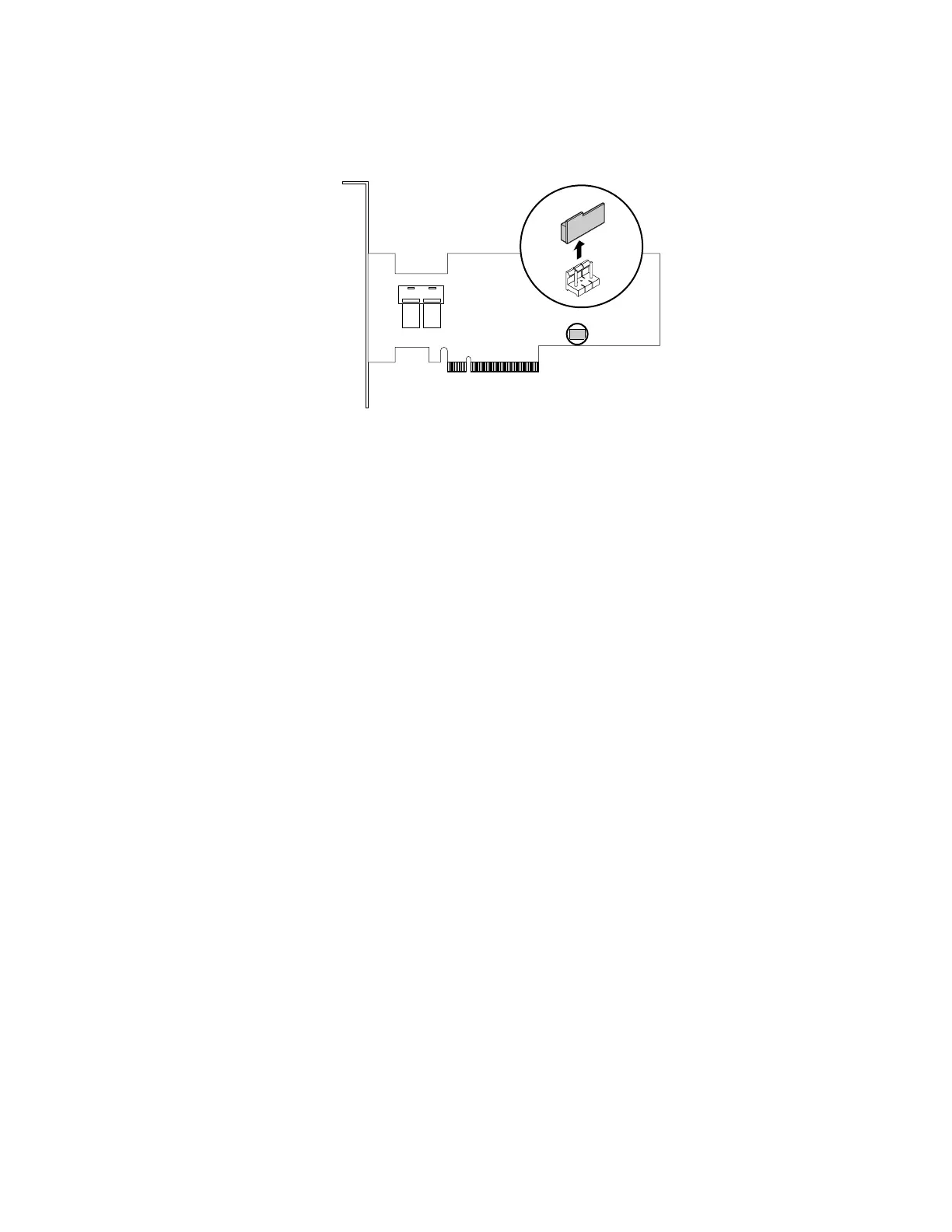

Figure43.RemovingtheRAID520ikey
4.IfyouareinstructedtoreturntheoldRAID510ikey,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
5.ReinstalltheLenovoThinkServerRAID520iPCIeAdapter.See“InstallingthePCIecard”onpage56.
Tocompletethepartsreplacement,goto“Completingthepartsreplacement”onpage95.
ThehardwareRAID5isnotavailablewithouttheRAID520ikey.Therefore,youmightneedtoreconfigure
RAIDforyourserver.ForinformationaboutconfiguringhardwareRAID,refertotheMegaRAIDSASSoftware
UserGuide.ThisguideisavailableontheLenovoSupportWebsiteat:
http://www.lenovo.com/support
InstallingtheRAID520ikey
ToinstalltheRAID520ikey,dothefollowing:
1.Prepareyourserver.See“Preparingyourserverinadvance”onpage47.
2.RemovetheLenovoThinkServerRAID520iPCIeAdapter.See“RemovingthePCIecard”onpage56.
3.Touchthestatic-protectivepackagethatcontainstheRAID520ikeytoanyunpaintedsurfaceonthe
outsideoftheserver.Then,taketheRAID520ikeyoutofthepackage.
Note:CarefullyhandletheRAID520ikeybyitsedges.
Chapter5.Replacinghardware67
