Lenze 9300 vector - Page 93

Wiring of the standard device
Basic devices in the power range 250 ... 400 kW

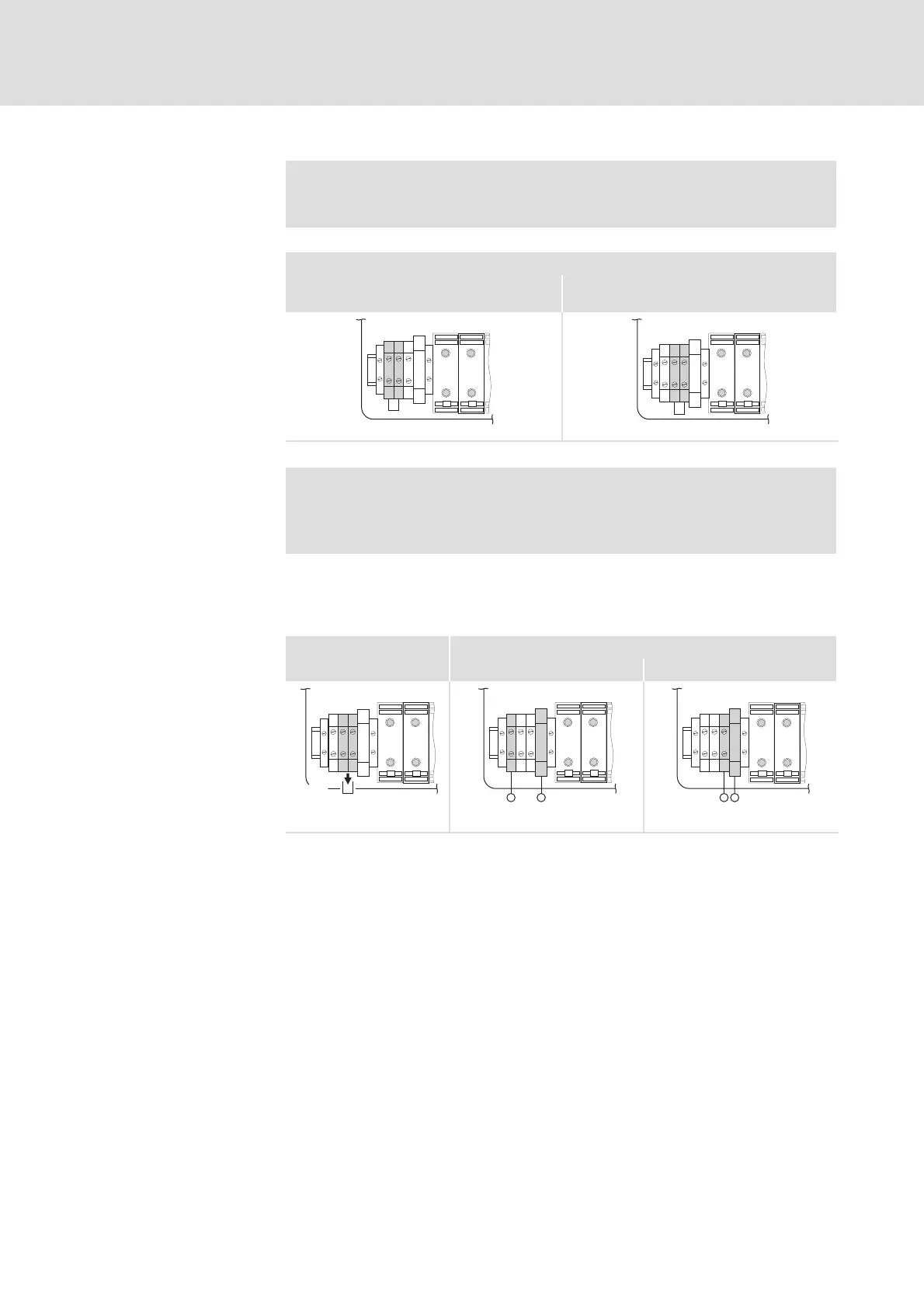

Supply and fan connection of the controller for 400 V/500V mains voltage
5
5.4
5.4.4

5.4−10
EDSVF9383V EN 6.0−11/2009
 Note!
Connect the fan to the master and the slave.
Lay a bridge between the terminals when a controller is operated on a mains.
AC 340 ... 440 V AC 440 ... 577 V
(when being delivered)
L1 L2
101
102
103
104
101
102
103
104
L1 L2
9300vec044 9300vec045
 Danger!
When the fan is externally supplied with voltage, the terminal L2
carries dangerous mains voltage!
When the controller is supplied via the DC bus, the fan must be separately
supplied with mains voltage (see ). In this case, the bridge between the
terminals 102 and 103 must be removed (see ).
Remove bridge
Mains connection for the operation of the fan on
AC 340 ... 440 V AC 440 ... 577 V
101
102
103
104
}
0
L1 L2
AC 340 … 440 V
101
102
103
104
1
L1 L2
AC 440 … 577 V
101
102
103
104
1
L1 L2
9300vec160 9300vec046 9300vec047
Fan connection
Fan connection when
controller is supplied with
mains voltage
Fan connection when
controller is supplied via the
DC bus
