Wiring of the standard device
Basic devices in the power range 250 ... 400 kW
Supply and fan connection of the controller for 400 V/500V mains voltage
5
5.4
5.4.4
5.4−11
EDSVF9383V EN 6.0−11/2009
In case of an external voltage supply the fan is protected by a fuse integrated
in terminal 104.
101
102
103
104
L1 L2
0
1
9300vec161

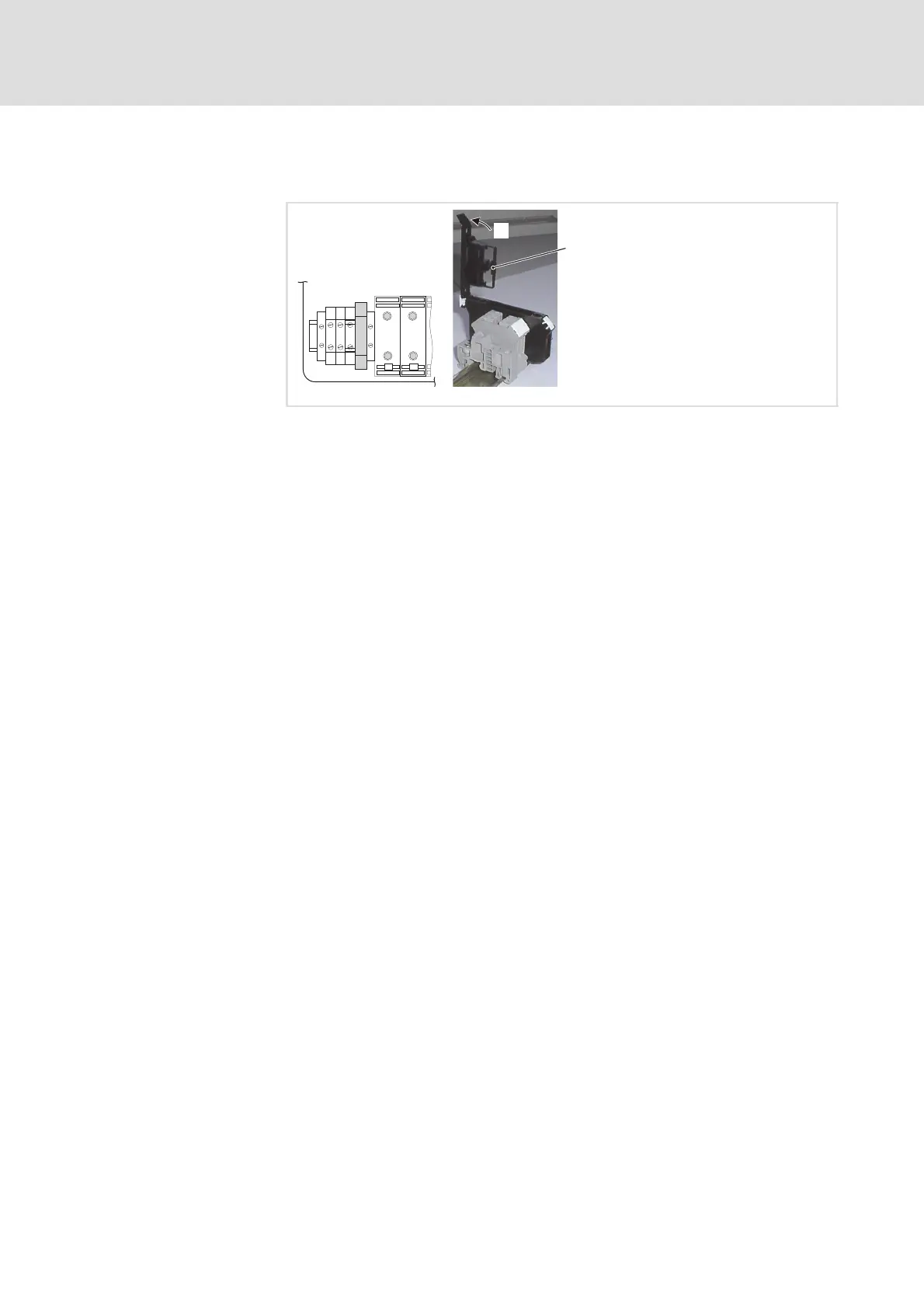

Fig. 5.4−10 Fusing of the fan
Open the fuse holder.
Remove the defect fuse from the support and replace it by the following
type:
Type: 500V SA 2A 6.32
Ref. no.: P098131
Manufacturer: Ferraz Shawmut
Exchange defect fuse
