Lenze E82EV User Manual

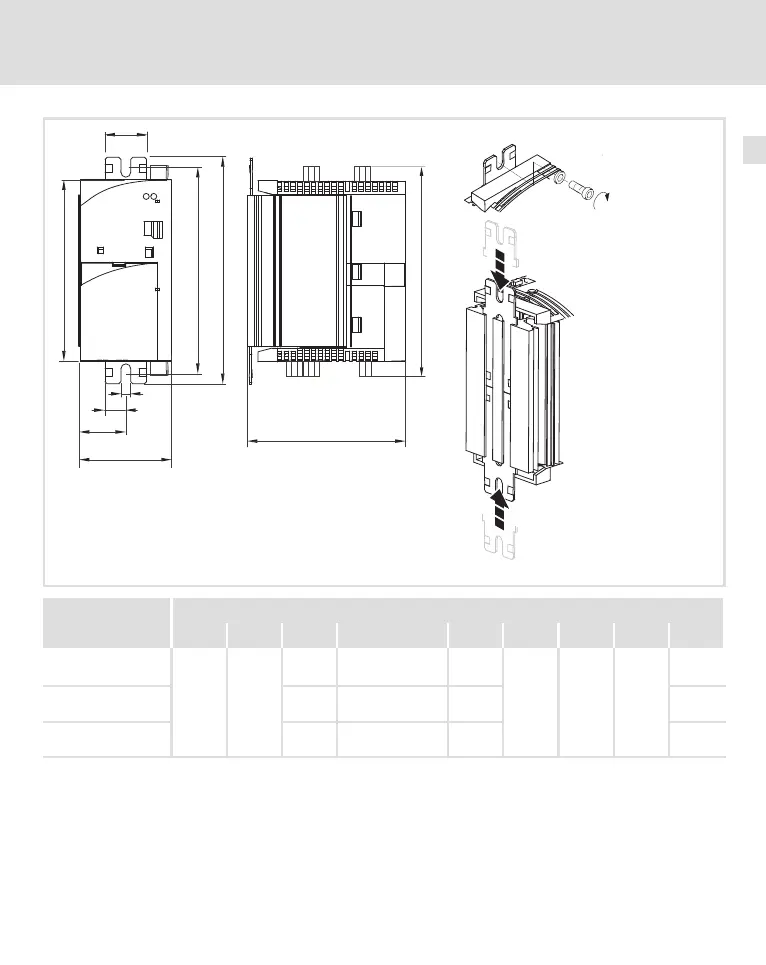

Mechanical installation
Mounting in cold−plate design
4

111
EDK82EV222 DE/EN/FR 13.0
M6
4Nm
35 lbin
c
f
a1
b1
b
a
d
c1
b2
e
8200vec029
Dimensions in [mm]
8200 vector a a1 b b1 b2 c
1
d e f
E82CV251K2C
E82CV371K2C
60
30
150 130 ... 140 120
106 6.5 27.5
148
E82CV551KxC
E82CV751KxC
210 190 ... 200 180 208
E82CV152KxC
E82CV222KxC
270 250 ... 260 240 268
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of
function modules in PT design protrude above the housing by 14 mm.
