Lenze EPM-H310 - Dimensions; Mounting Cutout

Technical data
Dimensions
2

48
EDBPM−H310 DE/EN/FR 7.1

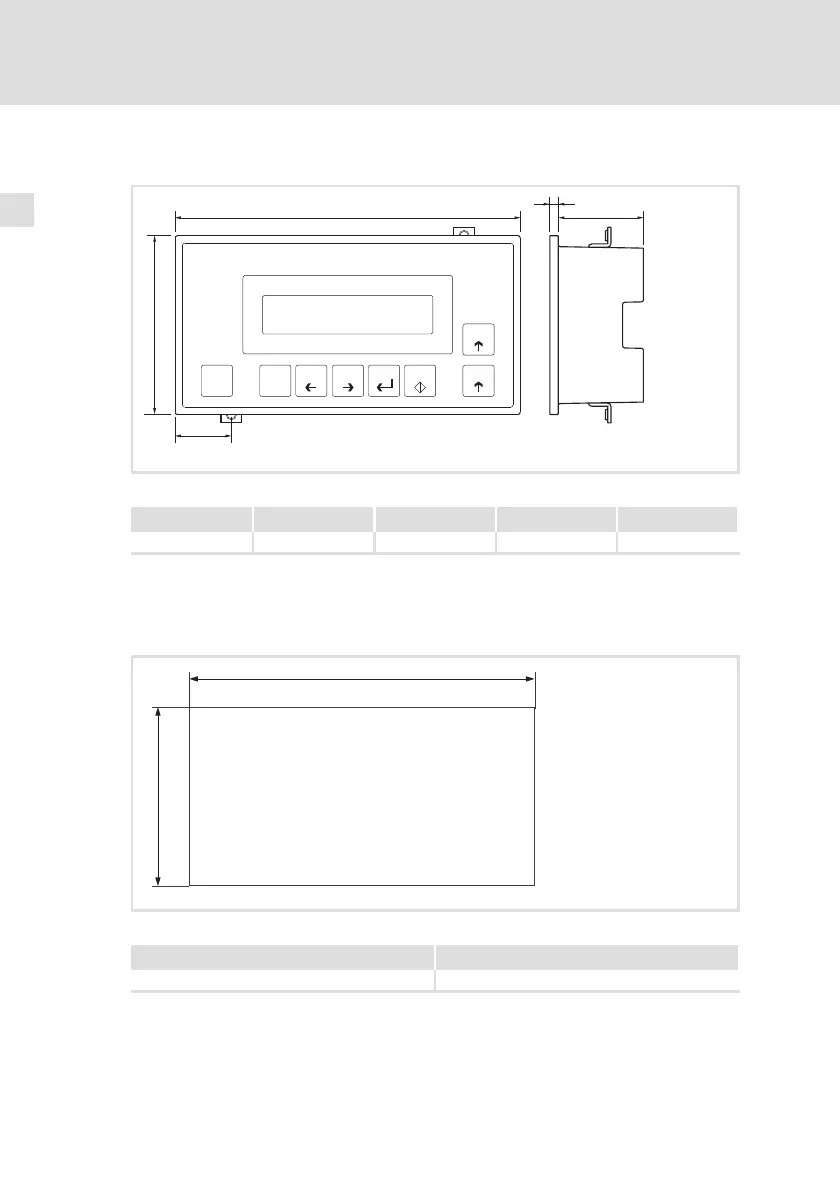

2.3 Dimensions
d
a
b
c
shift
F1
Esc
F2 F3 F4 F5
e
Help
Info
h310_001
Fig. 2−2 Dimensions
a [mm] b [mm] c [mm] d [mm] e [mm]
166.0 86.0 27.0 4.0 41.0
2.4 Mounting cutout
b
a
h312_004
Fig. 2−3 Mounting cutout
a [mm] b [mm]
77.0 157.0
