Accessories (overview)
Safety modules
SM100
8
432
EDS94SPP101 EN 10.2

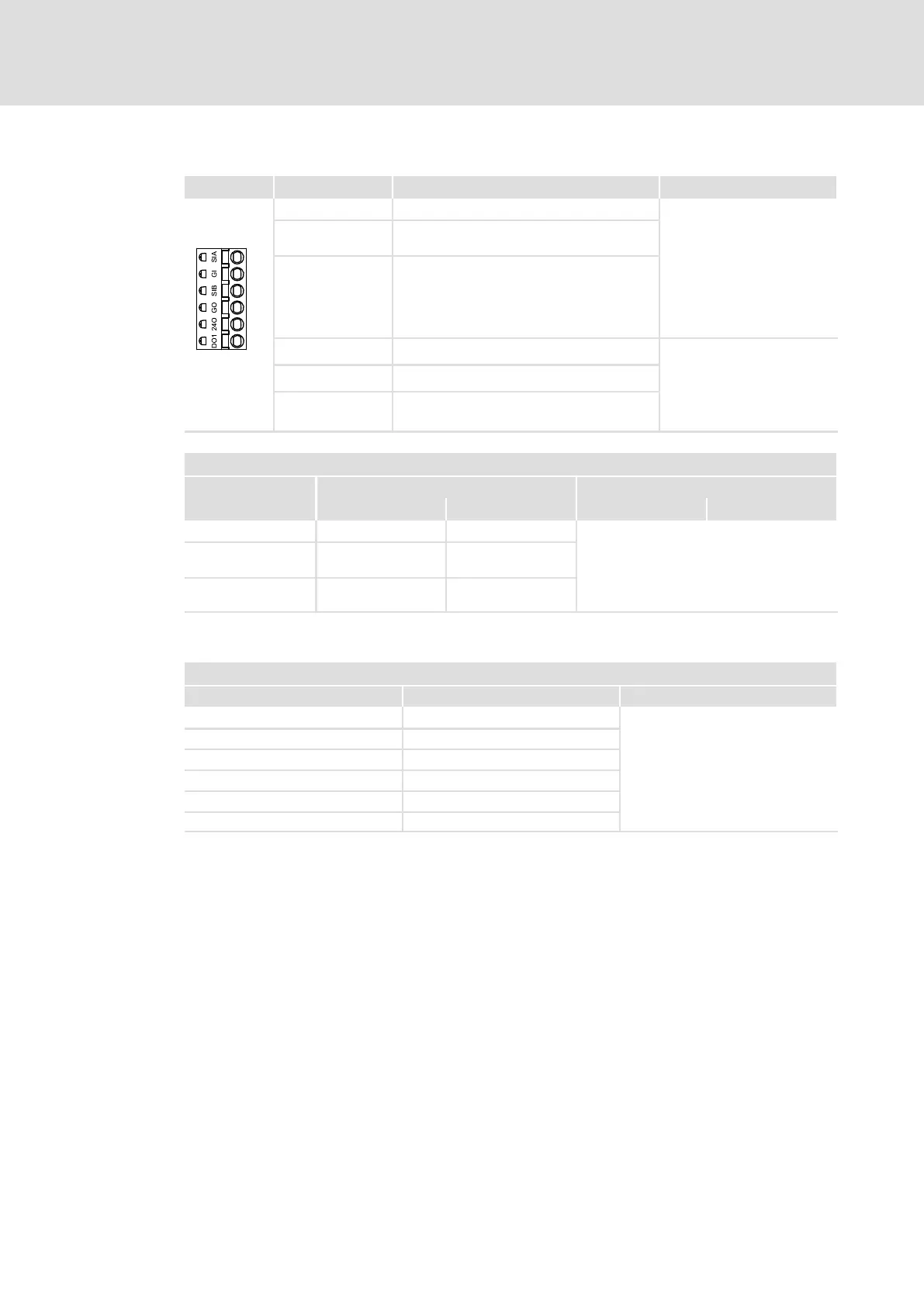

Connection data
X80 Marking Description Electrical data
SIA Input first shutdown path SIA: I
typ
= 160 mA
GI GND potential for SIA/SIB
LOW: −3 ... 5 V,
HIGH: 15 ... 30 V,
SIB Input second shutdown path SIB: I
typ
= 28 mA
Supply through safely
separated power supply unit
(SELV/PELV)
GO GND potential feedback
24 V, max. 0.7 A,
short−circuit−proof,
LOW−active,
Supply through safely
separated power supply unit
(SELV/PELV)
24O 24 V supply feedback
SSP9400X80
DO1 Non−safe signalling output: "Safe pulse
inhibit"
Terminal data
Conductor cross−section Tightening torque
[mm
2
] [AWG] [Nm] [lb−in]
Rigid
0.2 ... 2.5
24 ... 12
Spring terminal
Wire end ferrule,
insulated
0.2 ... 1.5 24 ... 16
Twin wire end
ferrule
0.5 ... 1.0 20 ... 18
Stripping length / contact length: 10 mm
Information for the exchange of modules of different hardware versions
up to HW: VB from HW: VC Comment
SI1 SIA
The exchange of the spring terminal
is required!
GI GI
SI2 SIB
GO GO
24O 24O
DO1 DO1
