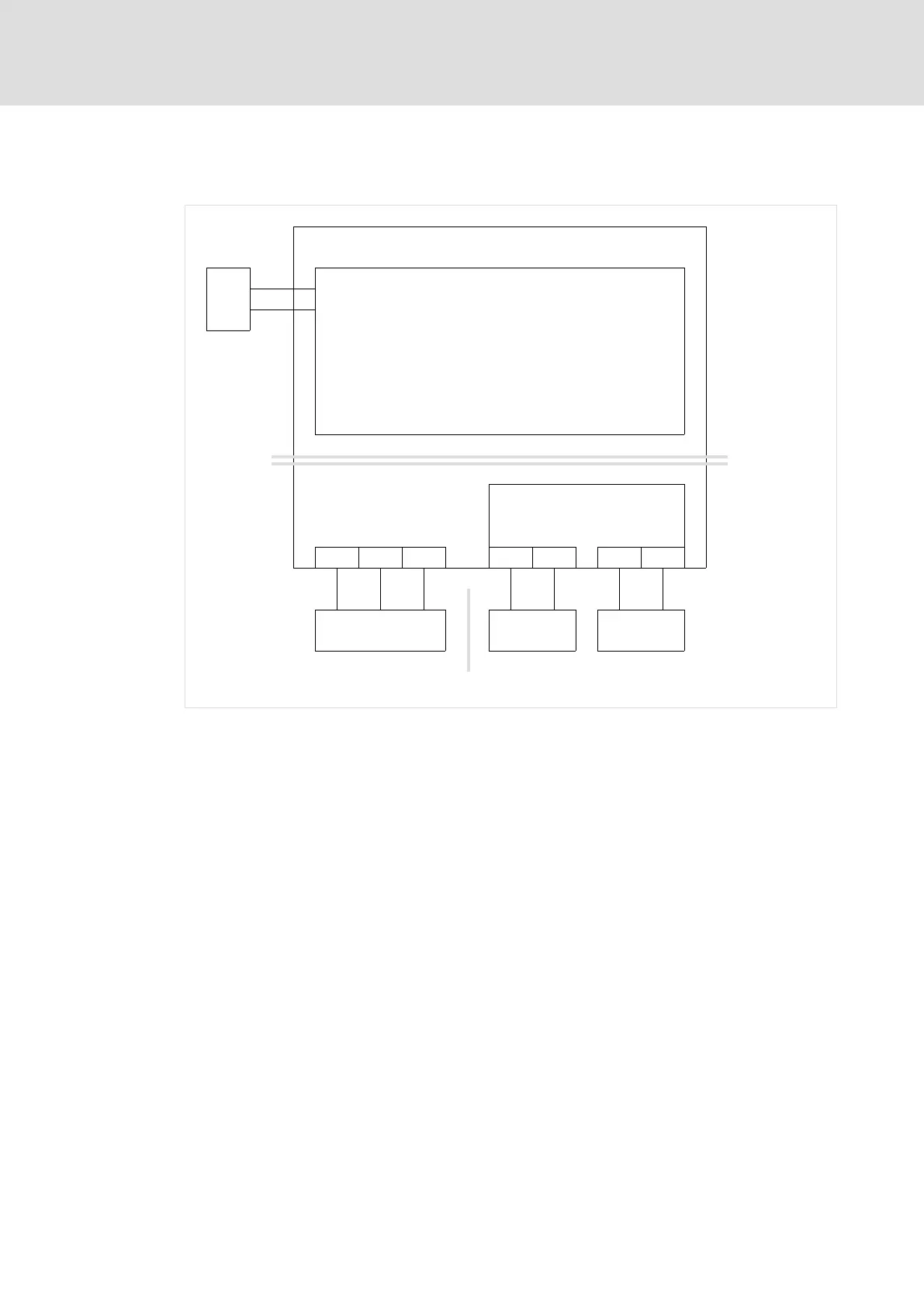

Electrical isolation / protection against accidental contact
Motor holding brake control modules
9400 controller
24 V
Control card
Double
insulation
Motor brake control
U V W BD1 BD2 + −
3~ motor Brake 24 V
Basic insulation in the
Lenze system cable
The principle of electrical isolation can be analogously transferred to the modules with
other voltages for motor holding brakes.
