LevelOne WAP-6012 - Chapter 3 Access Point Setup

Introduction
5
Rear Panel

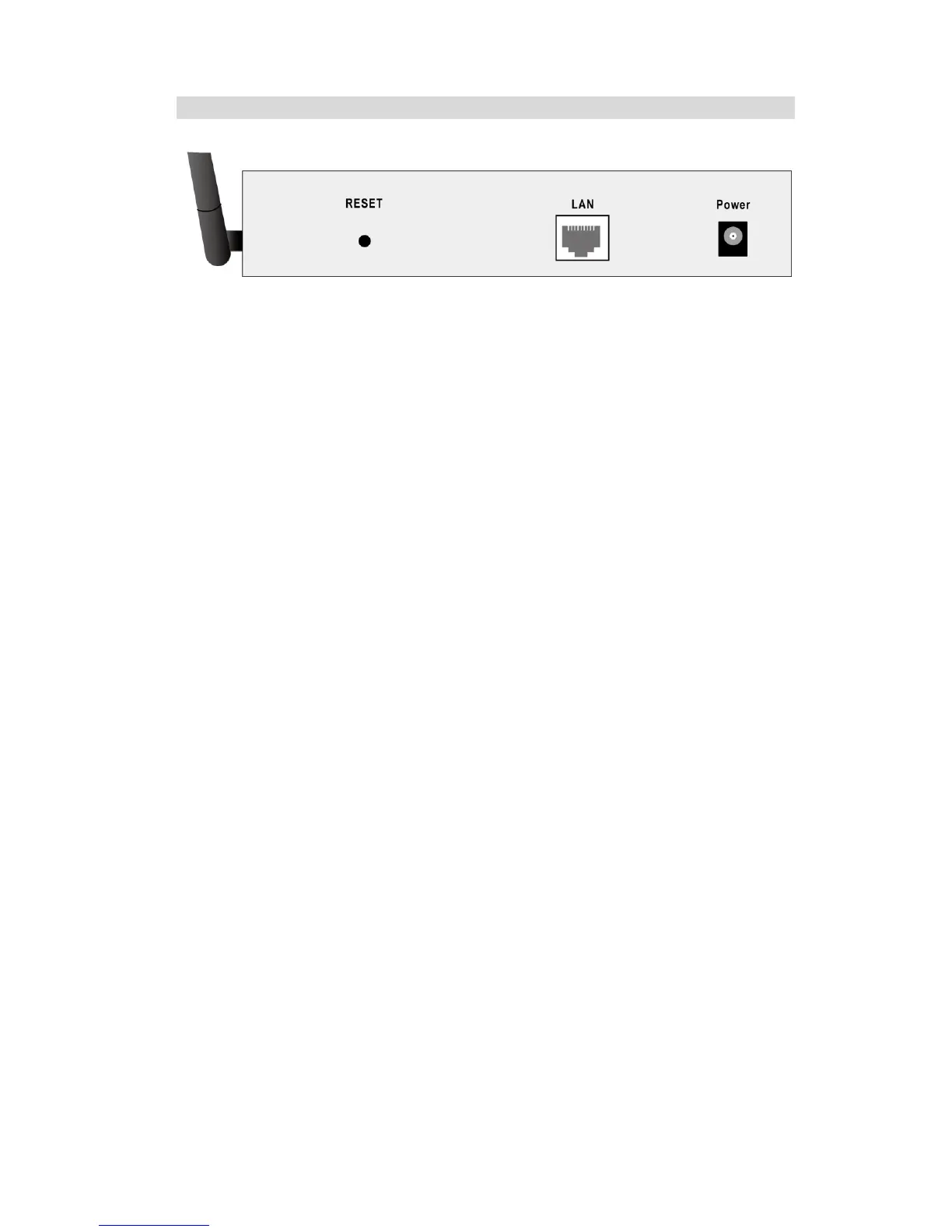

Figure 3: Rear Panel
Reset Button
This button has two (2) functions:
 Reboot. When pressed and released, the Wireless Access
Point will reboot (restart).
 Reset to Factory Defaults. This button can also be used to
clear ALL data and restore ALL settings to the factory default
values.
To Clear All Data and restore the factory default values:
1. Hold the Reset Button until the Status (Red) LED blinks
TWICE, usually more than 5 seconds.
2. Release the Reset Button.
The factory default configuration has now been restored, and
the Access Point is ready for use.
LAN
Use a standard LAN cable (RJ45 connectors) to connect this
port to a 10/100/1000BaseT hub/switch on your LAN.
Power port
Connect the supplied power adapter (12V@1A) here.
