Checking TCP/IP Settings - Windows Vista / 7
1. Select Control Panel - Network Connections.
2. Right click the Local Area Connection Status and choose Properties. Click Contin-
ue to the User Account Control dialog box, then you should see a screen like the
following:

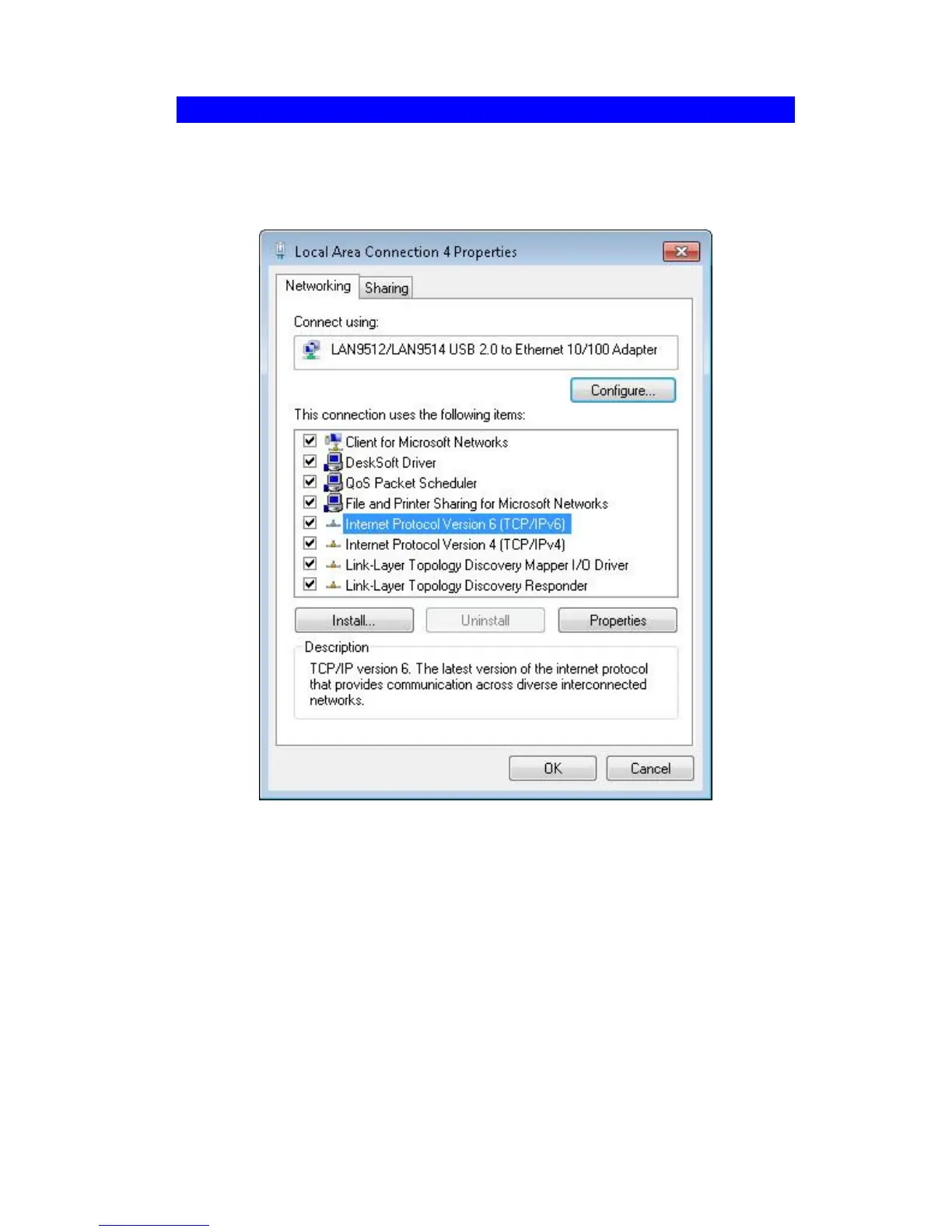

Figure 72: Network Configuration (Windows Vista)
3. Select the TCP/IP protocol for your network card.
4. Click on the Properties button. You should then see a screen like the following.
