User Guide
Page 14 of 62 Leviton MLC 16D Motorized Lighting Controller
62
7

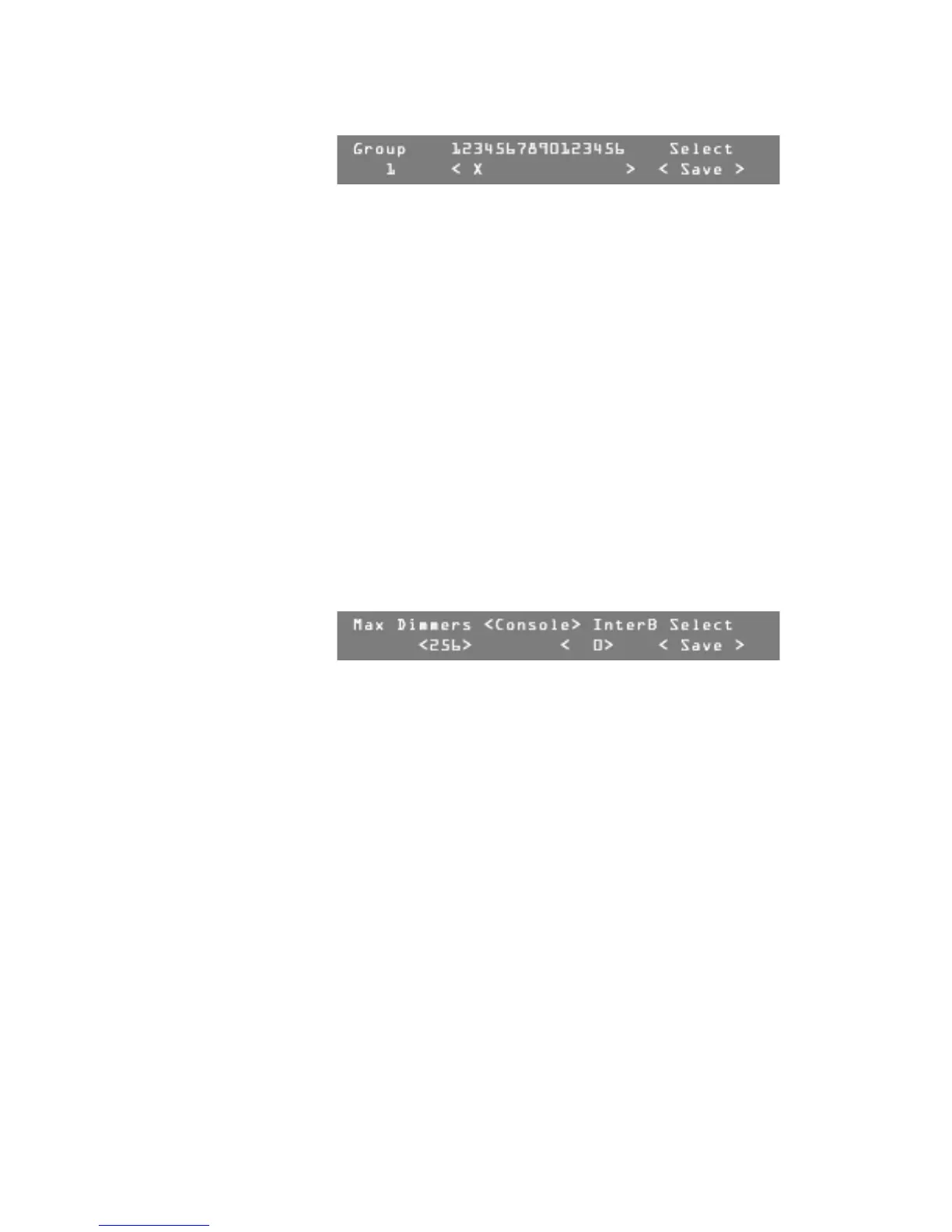

Turn Modify wheel 2 to move the cursor to the fixture location.
8
Turn Modify wheel 3 to add X or remove X as needed for each location.
Note:
When there is no fixture assigned to a location, the X is inactive.
9
Continue until all your fixtures have been assigned.
10
Press F4, above Select <Save>, or turn Modify wheel 4 to Select
<Cancel> to cancel the action.
11
Continue assigning fixtures into groups, or press Blackout or Edit to exit
the Group Setup menu.
Setting the Maximum Dimmers
The MLC 16D can control up to 512 dimmers or control channels. If you are using
fewer, you should reduce the Maximum Dimmers setting to the number needed,
to prevent the console from sending needless information.
To change the Maximum Dimmers setting:
1
Press Edit.
2
Press F4, above Setup.
3
Press F3, above Console.
4
Press F4, above Select Edit.
5
Turn Modify wheel 2, under Max Dimmers, to select a value between 48
and 512.
6
Turn Modify wheel 4 to select <Save> or <Cancel>.
7
Press F4, above <Save> or <Cancel>. The action is saved or cancelled.
8
Press Blackout or Edit to exit the Console Setup menu.
Setting the Interbyte Delay
Some fixtures cannot keep up with DMX512 at full speed. This usually appears as
a momentary glitch, because the fixture has missed some data and uses incorrect
values. Putting additional time between each byte transmitted can usually
alleviate this problem.
If you are experiencing intermittent control problems, try varying the interbyte
delay. A value of 256 is the maximum delay (about 200 microseconds); 0 indicates
no delay.
To set the interbyte delay:
1
Press Edit.
2
Press F4, above Setup.
3
Press F3, above Console.
4
Press F4, above Select Edit.
5
Turn Modify wheel 3 under InterB, to select the desired value.
