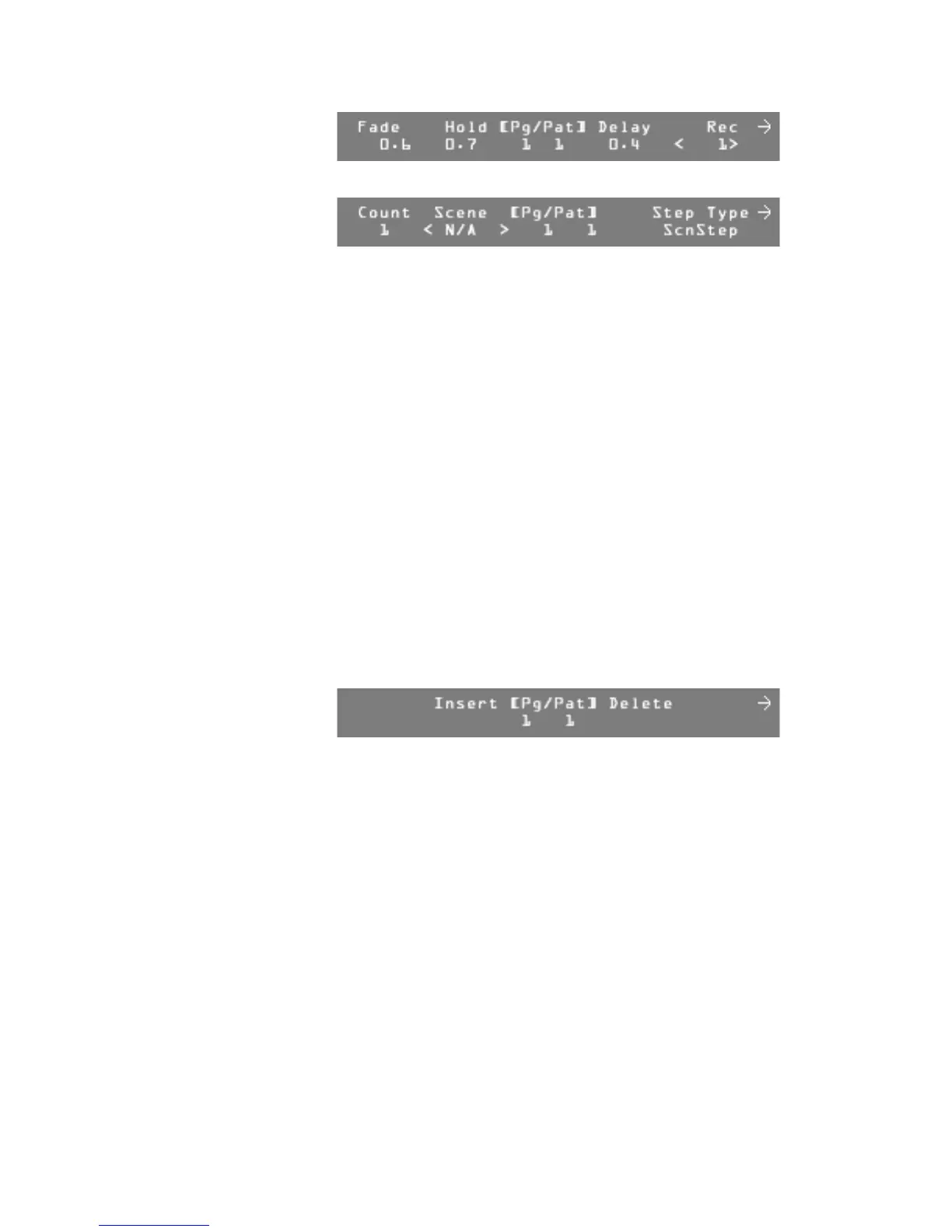

7 Press the More button to access the scenes.
8 Turn Modify wheels 1 and 2 to change the desired scenes.
Note: After making edits in each step, you must save them before editing
another step.
9 Press the Record button,
or press the More button two times, then F4, above Rec.
The changes to the step are saved.
10 Continue making changes to pattern steps,
or press the Blackout or Edit button to exit Edit mode.
Inserting or Deleting Pattern Steps
To insert or delete pattern steps:
1 Press the Edit button.
2 Press F2, above Pattern.
3 Turn Modify wheel 1 to select a pattern.
4 Press F4, above Edit.
5 Turn Modify wheel 4 to select the step to be deleted, or the place to insert
a step.
Note: An inserted step will be a copy of the step selected, and will be
inserted after it. Once the new step is inserted, you can edit its content.
6 Press the More button two times.
7 Press F2, above Insert, to add a pattern step,
or press F3, above Delete, to remove a pattern step.
8 Continue to insert and/or delete pattern steps.
9 Press the Blackout or Edit button to exit Edit mode.
Using Real Time Record
It can be difficult to know exactly what times will be best when recording a
pattern. Using the Real Time Recording mode, you can modify the times of a
prerecorded pattern in real time while, for example, the selected music is playing.
To activate the Real Time Recording mode:
1 Press the Record button.
2 Press F2, above Pattern.
3 Turn Modify wheel 1 to select the Pattern number.
4 Turn Modify wheel 4 to select All traits or Select traits.
5 Press F2, above Real Time.
