User Guide
Leviton MLC 16D Motorized Lighting Controller Page 15 of 62
62
Large values will seriously affect the efficiency of the console, especially
with large numbers of output dimmers. Therefore, first try the maximum
value to see if the problem is alleviated. If so, reduce the value as low as
possible while still achieving the benefits.
6
Turn Modify wheel 4 to select <Save> or <Cancel>.
7
Press F4, above <Save> or <Cancel>. The action is saved or cancelled.
8
Press the Blackout or Edit button to exit Console Setup menu.
Setting and Using the DMX Input Mode
In addition to broadcasting DMX512, the console can receive DMX512 signals.
When DMX Input is enabled there are two modes of operation available:
• Pass Thru mode
• 9-Channel mode
Setting DMX Input to Pass Thru Mode
Pass Thru mode allows the MLC 16D to receive DMX512 signals from other
consoles and merge those values with the output of the console. The merging of
the signals is coordinated through a "highest takes precedence" arbitration
scheme. This means that the signal source with the higher value is used.
For example, if the input signal is 50 and the channel being controlled is an 8-bit
continuous channel, the console will only be able to control values between 50
and 255. The effect is what may appear to be a restriction of the range of control
on a channel-by-channel basis.
If the input signal is lost, the input values are retained until the console is
rebooted.

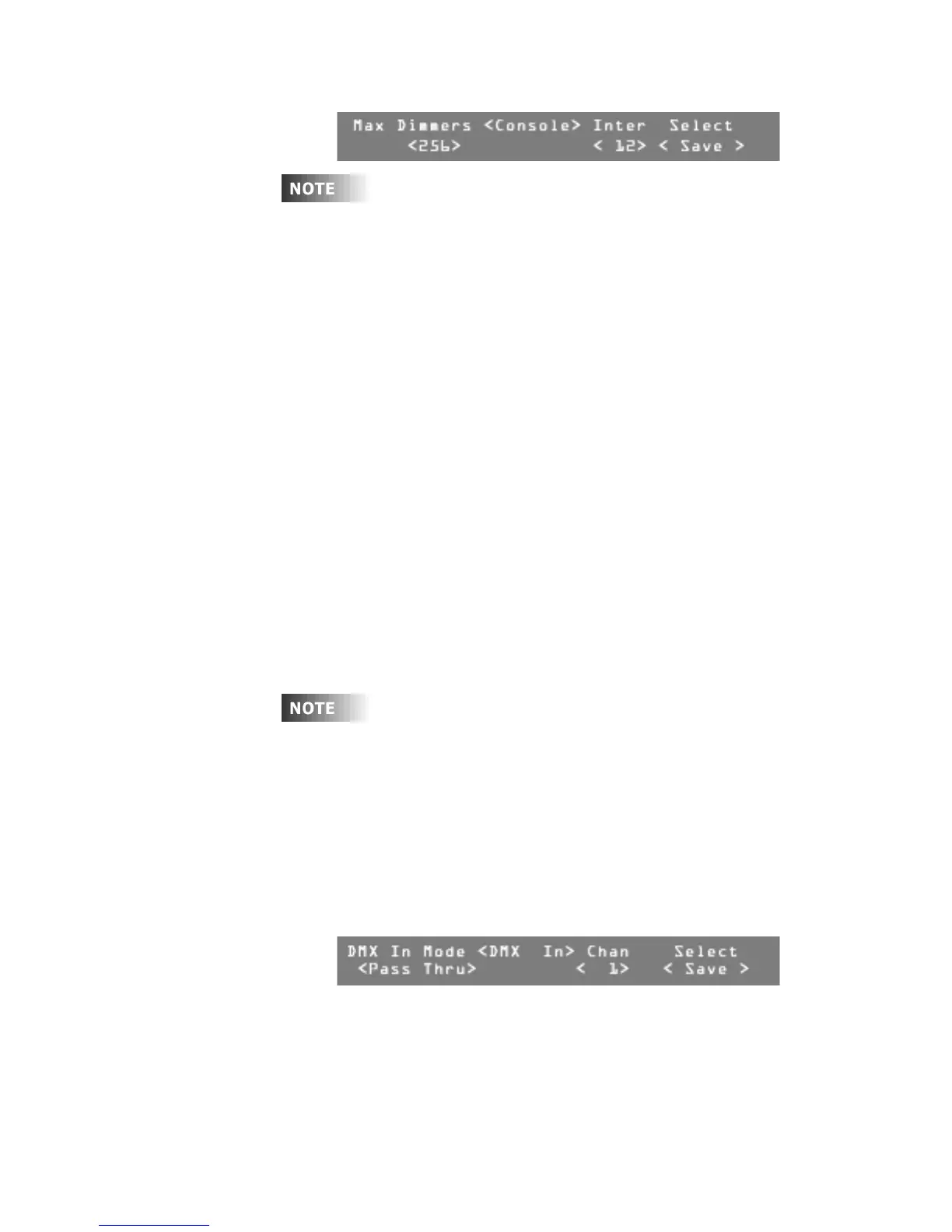

To set the DMX Input mode to Pass Thru mode:
1
Press Edit.
2
Press F4, above Setup.
3
Press F3, above Console.
4
Press More.
5
Pres F4, above Select Edit.
6
Turn Modify wheel 2 under DMX In Mode, to select Pass Thru.
7
Turn Modify wheel 4 to select <Save> or <Cancel>.
8
Press F4, above <Save> or <Cancel>.
The action is saved or cancelled.
9
Press Blackout or Edit to exit the DMX Input Mode menu.
