User Manual for BPS-2000
www.levitronix.com
PL-4021-00, Rev06, DCO# 21-037
2.6 Maximum Static Pressure for Pump Heads

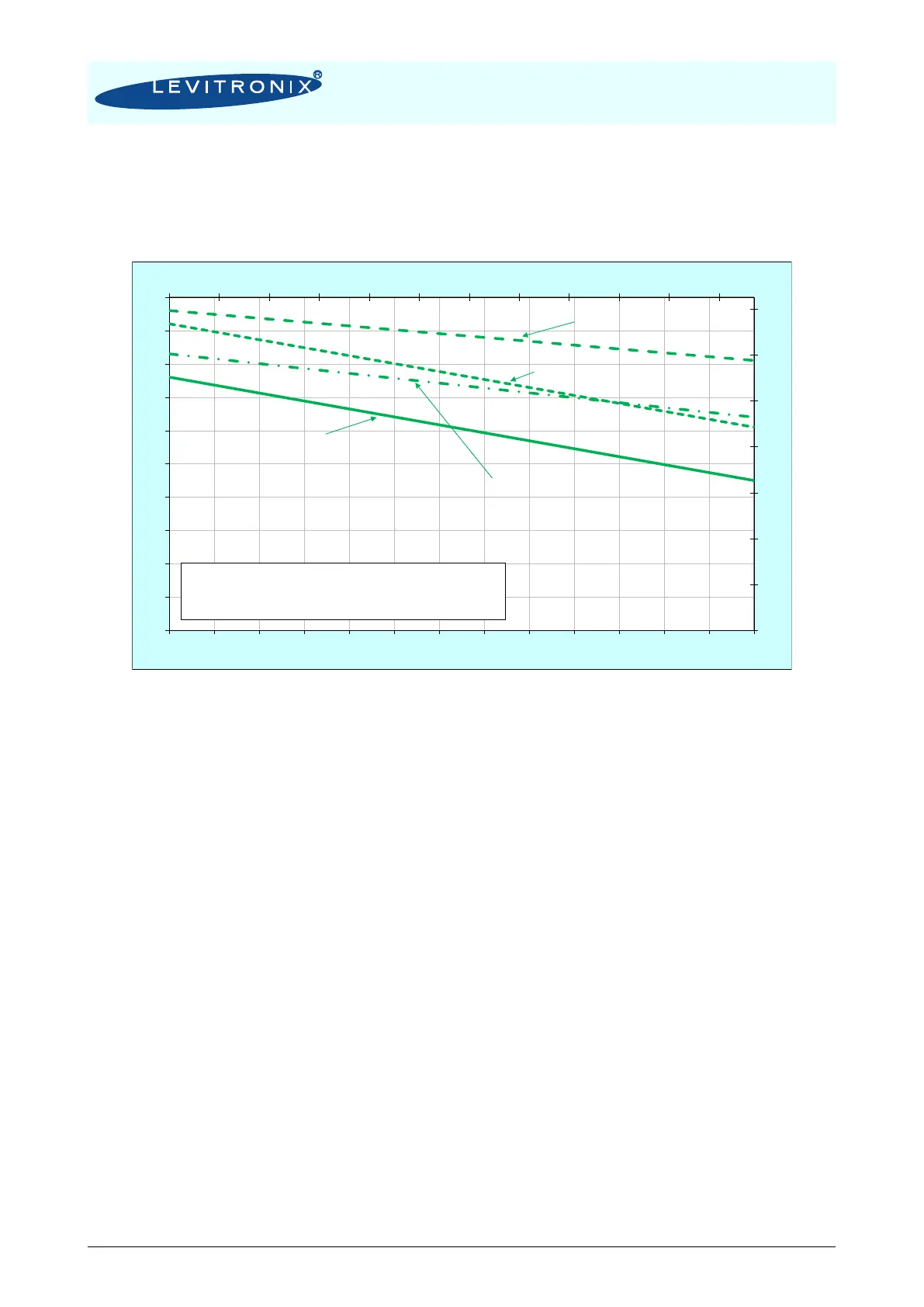

Figure 10: Specification for maximum static pressure of pump heads
(Pressure limits only valid for pump head mounted on motor.)
For the plastics pump heads at higher liquid temperatures or when hammering effects (dynamic static
pressure peaks) or thermal liquid cycles are expected, which might result in longer term deformation effects
of the standard PFA housing with O-ring, it is recommended to use pump heads with PTFE housing or the
sealless/welded PFA pump head. Under these conditions it is furthermore recommended to periodically
retighten the pump head and motor screws.
0
20
40
60
80
100
120
140
77 87 97 107 117 127 137 147 157 167 177 187
0
1
2
3
4
5
6
7
8
9
10
25 30 35 40 45 50 55 60 65 70 75 80 85 90
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Safety Factor = 1.3 (according to EN12162)
Limitation: Given by deformation. Burst pressure is significantly higher.
Ambient Temp = 25 C
Note: Pressure limit only valid for pumphead mounted on motor.
Pump Head LPP-2000.20
(Stainless Steel Housing and Screws)
Pump Head LPP-2000.22
(PFA Housing, SS Screws)
Pump Heads LPP-2000.7/14
(PTFE Housing, SS Screws)
Pump Head LPP-2000.21
(Sealless/Welded PFA Housing)
