2.7 Basic Dimensions of Main Components

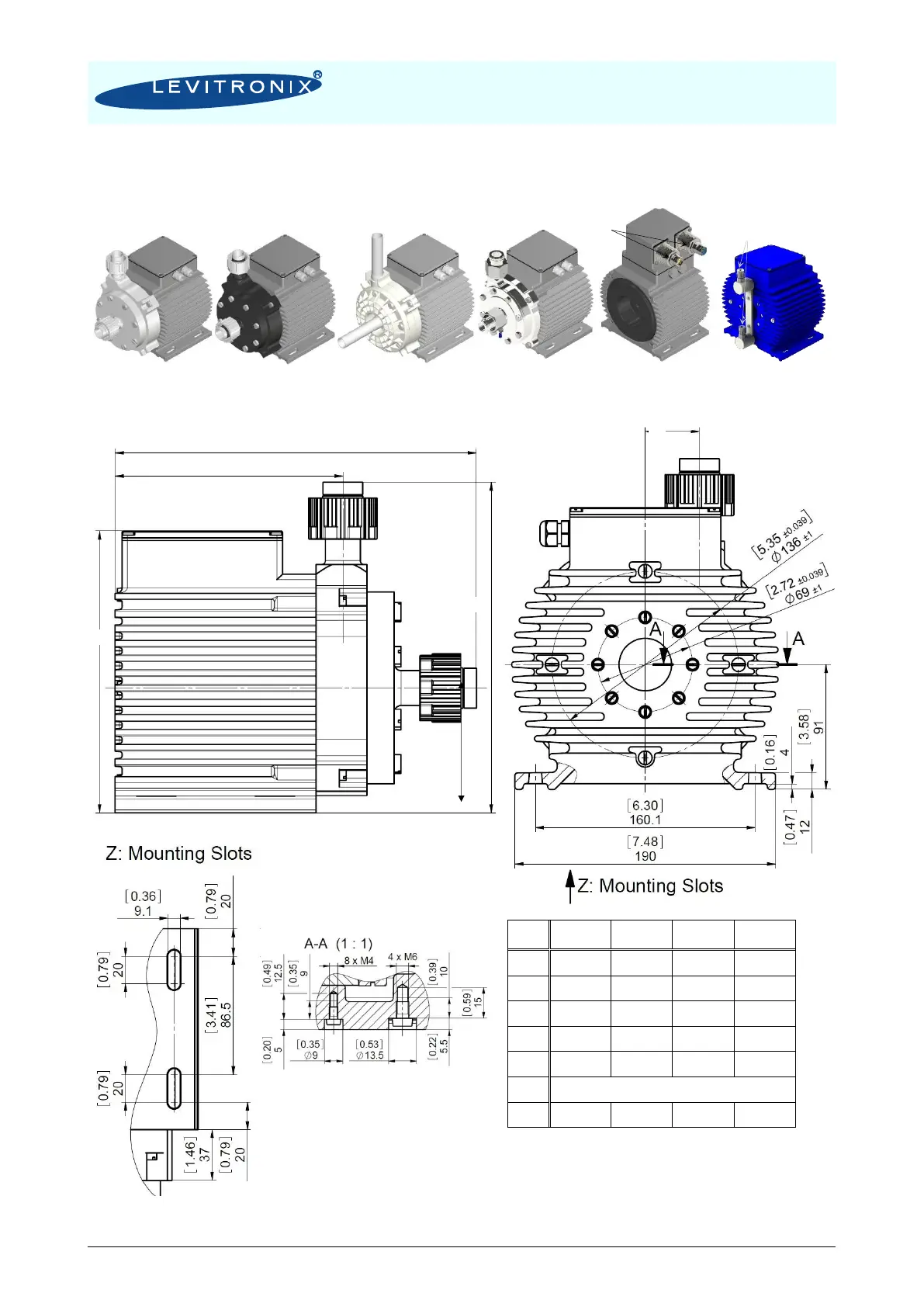

Figure 11: Basic dimensions of motors with pump heads
(Non-tolerated dimensions are for reference only.)

cable protection
conduit
mm
[inch]
LPP-2000.7
LPP-2000.14
LPP-2000.22
LPP-2000.21
LPP-2000.20
A
263.5
[10.37]
263.5
[10.37]
316.1
[12.44]
252
[9.93]
B
166
[6.54]
166
[6.54]
166.1
[6.54]
166
[6.54]
C
241
[9.49]
241
[9.49]
286
[11.26]
224.5
[8.84]
D
39.5
[1.56]
39.5
[1.56]
39.5
[1.56]
39.5
[1.56]
E
91
[3.58]
91
[3.58]
91
[3.58]
91
[3.58]
F
Standard Motors 2a,2b,2c: 205.5 / [8.09]
HazLoc Motors 2d, 2e: 275.5 / [10.85]
Inlet
Outlet
FM Pillar 1”
FM Pillar 1”
Tube 1”
VCR
®
1”
Pump Head
LPP-2000.7
(PTFE)
Pump Head
LPP-2000.14
(PTFE Antistatic)
E
A
F
B
D
Pump Head
LPP-2000.22 (PFA)
LPP-2000.21 (Sealless)
C
Pump Head
LPP-2000.20
(Stainless Steel)
HazLoc Motors
LPM-2000.9/17
Water Cooling In-/Outlet:
Pillar 
Water Cooled Motor
LPM-2000.18
