3.2 AC Supply and Power Consumption
3.2.1 Power Consumption

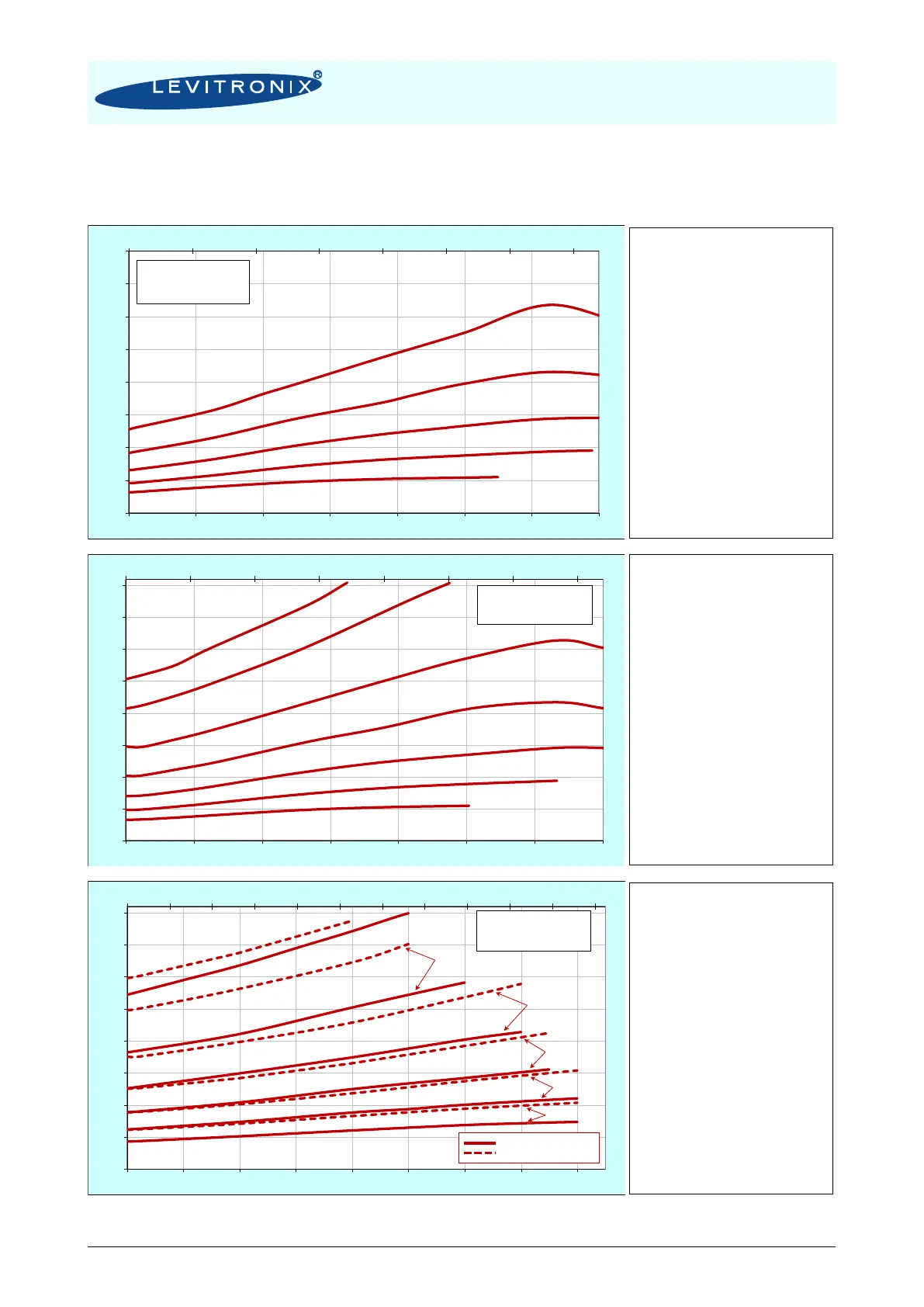

Figure 16: Electrical power consumption for main system configurations
0 5 10 15 20 25 30 35
0
250
500
750
1000
1250
1500
1750
2000
0 20 40 60 80 100 120 140
[gpm]
[Watts]
[lpm]
Specific gravity = 1 g/cm
3
Viscosity = ~ 0.7 cP
Liquid Temp.: 40 C
7000 rpm
6000 rpm
5000 rpm
8000 rpm
4000 rpm
0 5 10 15 20 25 30 35
0
250
500
750
1000
1250
1500
1750
2000
0 20 40 60 80 100 120 140
[gpm]
[Watts]
[lpm]
Specific gravity = 1 g/cm
3
Viscosity = ~ 0.7 cP
Liquid Temp.: 40 C
7000 rpm
6000 rpm
5000 rpm
8000 rpm
4000 rpm
9000 rpm
9500 rpm
0 2 4 6 8 10 12 14 16 18 20 22
0
250
500
750
1000
1250
1500
1750
2000
0 10 20 30 40 50 60 70 80
[gpm]
[Watts]
[lpm]
Specific gravity = 1 g/cm
3
Viscosity = ~ 0.7 cP
Liquid Temp.: 40
0
C
7000 rpm
6000 rpm
5000 rpm
8000 rpm
9000 rpm
10000 rpm
Pump Head LPP-2000.7
Pump Head LPP-2000.20
9500 rpm
“High Flow”:
Typical data for pump head LPP-
2000.22
Representative for pump head LPP-
2000.14
Operation with controllers LPC-
2000.x and motors LPM-2000.x
“Hybrid”:
Typical data for pump head LPP-
2000.21
Operation with controllers LPC-
2000.x and motors LPM-2000.x
“High Pressure”:
Typical data for pump heads LPP-
2000.7 and LPP-2000.20
Operation with controllers LPC-
2000.x and motors LPM-2000.x
