Levitronix BPS-2000 User Manual

User Manual for BPS-2000
www.levitronix.com
PL-4021-00, Rev06, DCO# 21-037
15

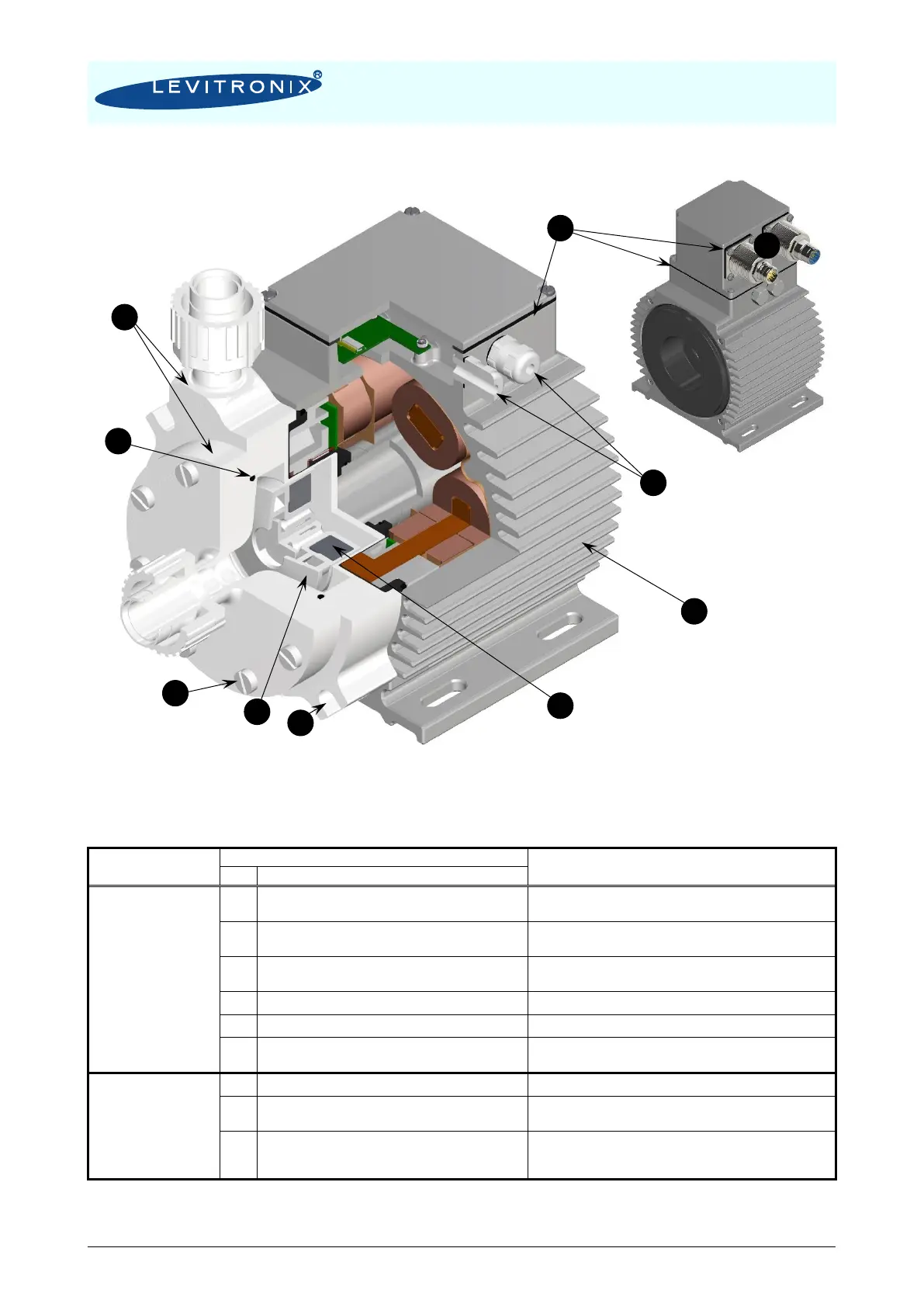

Figure 15: Sealing and material concept for motors with pump heads LPP-2000.7/14/20
Note 1: See Figure 14 and Table 7 for information on water-cooled motor LPM-2000.18.
System
Component
Item
Materials
No
Description
Pump Heads
LPP-2000.7 (PTFE)
LPP-2000.14 (Antistatic)
LPP-2000.20 (SS)
1
Pump housing (lid and bottom)
LPP-2000.7: PTFE LPP-2000.14: PTFE+CFR (antistatic)
LPP-2000.20: Stainless Steel
2
Static sealing of pump casing
LPP-2000.7/14: FFKM (Kalrez)
®
LPP-2000.20: FFKM unfilled
3
Screws for pump casing
LPP-2000.7/14: Stainless steel + PTFE Coating
LPP-2000.20: Stainless steel
4
Impeller
LPP-2000.7/14: PFA LPP-2000.20: Stainless Steel
5
Rotor magnet
Rare-earth material
6
Screws for pump/motor mounting
LPP-2000.7: Stainless steel (SS) + PTFE Coating
LPP-2000.14/20: Stainless steel
Standard Motors:
LPM-2000.2/8/15
HazLoc Motors:
LPM-2000.9/17
7
Sealing O-ring and gaskets for motor housing
FPM (= FKM)
8a
8b
Cable bushing (for motors LPM-2000.8 / 15)
Housing Connectors (for motors LPM-2000.15 / 17)
PVDF, cable jacket is FEP
Stainless Steel
9
Motor housing
ETFE coating, waterproof (IP67)
Coils and electromagnetic circuit potted with an epoxy
compound (UL94 V0).
Table 8: Materials used in the LPM-2000 motors with pump heads LPP-2000.7/14/20
9
5
8a
8b
Standard Motors
LPM-2000.2/8/15
HazLoc Motors
LPM-2000.9/17
7
1
2
6
4
3
