2.4 Pressure-Flow Curves

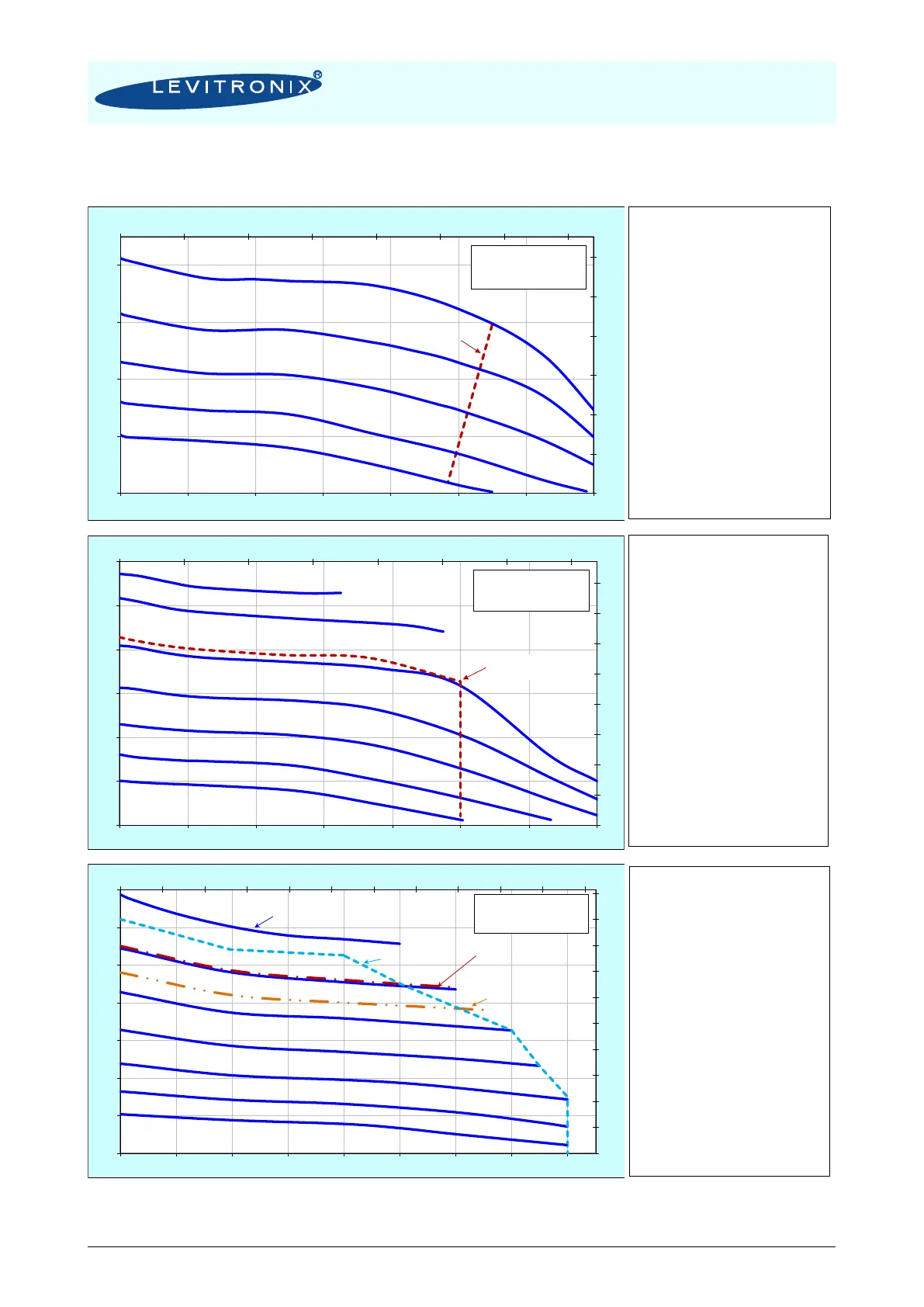

Figure 7: Pressure/flow curves for main system configurations.
0
10
20
30
40
50
60
0 5 10 15 20 25 30 35
0.0
1.0
2.0
3.0
4.0
0 20 40 60 80 100 120 140
[psi]
[gpm]
[bar]
[lpm]
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Liquid Temp.: 40 C
Limits for 90 C Liquid.
Limits due to caviation.
0
10
20
30
40
50
60
70
80
0 5 10 15 20 25 30 35
0.0
1.0
2.0
3.0
4.0
5.0
6.0
0 20 40 60 80 100 120 140
[psi]
[gpm]
[bar]
[lpm]
Specific gravity = 1 g/cm
9000 rpm
9500 rpm
Limits for 90 C Liquid:
Limits due to caviation
0
10
20
30
40
50
60
70
80
90
100
0 2 4 6 8 10 12 14 16 18 20 22
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
0 10 20 30 40 50 60 70 80
[psi]
[gpm]
[bar]
[lpm]
Specific gravity = 1 g/cm
Limits for > 75 C Liquid:
Cavitation and axial stability.
Limits for > 85 C Liquid:
Cavitation and axial stability.
Limits for Pump Head
LPP-2000.20
Pump Head
LPP-2000.7
“High Flow”:
Typical data for pump head LPP-
2000.22
Operation with controllers LPC-
2000.x and motors LPM-2000.x
Curves are representative for pump
head LPP-2000.14
The cavitation limits have been
determined for water. They can be
different for other liquids and depend
also on the hydraulic circuit design.
For example: higher inlet pressure
reduces cavitation effects.
“Hybrid”:
Typical data for pump head LPP-
2000.21
Operation with controllers LPC-
2000.x and motors LPM-2000.x
The cavitation limits have been
determined for water. They can be
different for other liquids and
depend also on the hydraulic circuit
design. For example: higher inlet
pressure reduces cavitation effects.
“High Pressure”:
Typical data for pump heads LPP-
2000.7 and LPP-2000.20.
With controllers LPC-2000.xand
motors LPM-2000.x
The cavitation limits have been
determined for water. They can be
different for other liquids and
depend also on the hydraulic circuit
design. For example: higher inlet
pressure reduces cavitation effects.
