4.3 Mechanical Installation of the Controller
▪ The controller can be mounted with the 2 DIN rail brackets on the housing (see Figure 13)
▪ If no forced air-cooling is used, mount the controller in upright position and assure that the
heat of the controller can dissipate. Avoid mounting the controller in a cabinet where heat is
stagnated and accumulated.

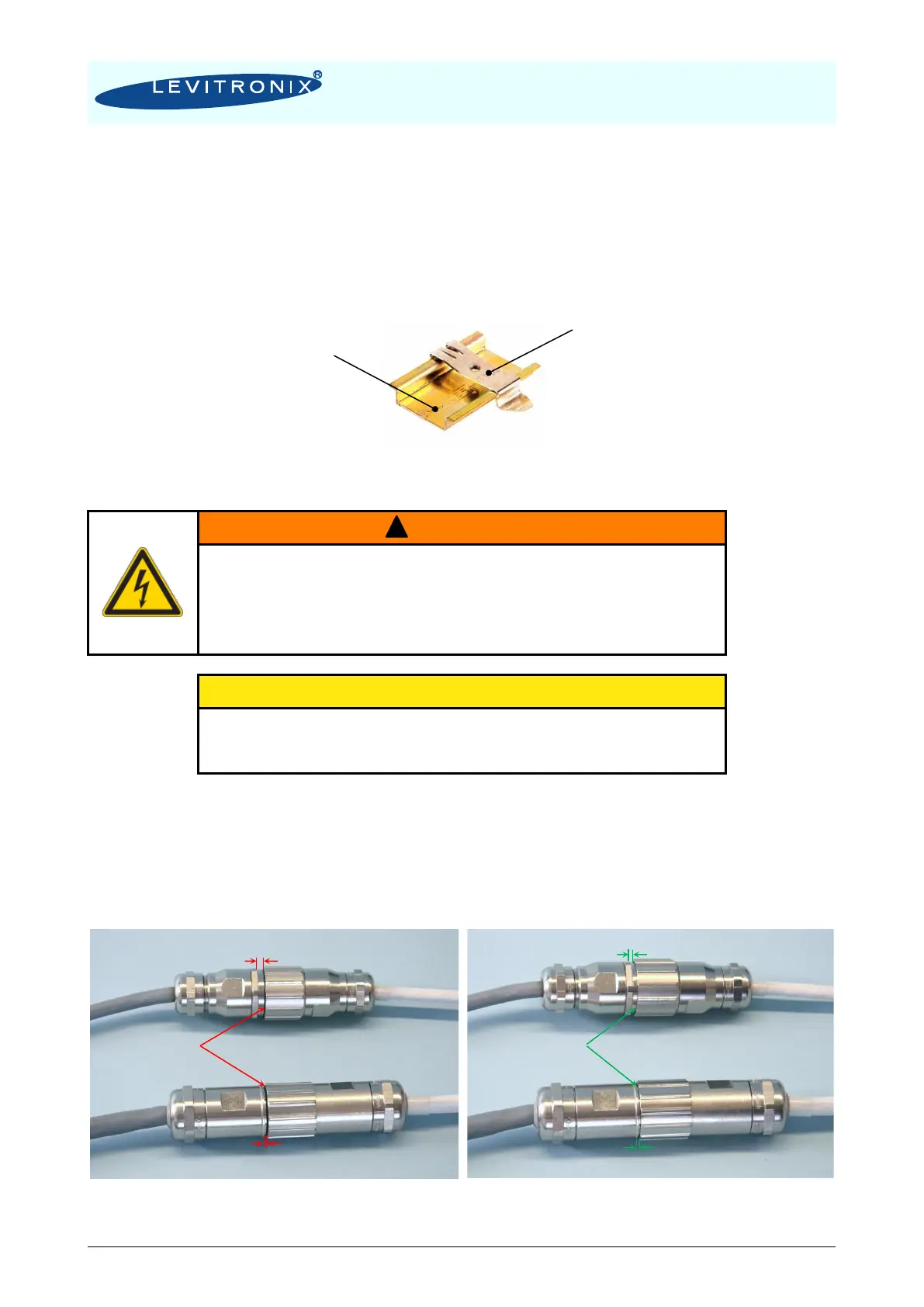

Figure 34: Din-rail bracket for mounting of the LPC-2000 controller
Hazardous voltage may be present.
In order to avoiding fluid spills shorting mains or other voltages within the
controller, place the controller in a spill protected electronic cabinet.
If explosive flammable gases are present, place the controller in an
explosion-proof cabinet.
Do not under any circumstances open the controller. Levitronix
®
does not
assume responsibility for any damage, which occurs under such
circumstances.
4.4 Mechanical Installation of Adaptor/Extension Cables
For connecting the motor to the controller the adaptor cables MCAP-2000.x (for power cable) and
MCAS-600.x (for sensor cable) shall be used (see Table 3 for adaptor cables). For the cables which use an
M23 threaded metallic Hummel connector type, check the connection according to the following pictures:
Figure 35: Wrong and correct Hummel connector type assembly
