2.2.3 ATEX / IECEx System Configuration
Together with the standard pump head and controllers an ATEX / IECEx certified motor allows installation of
motor and pump head in an Ex classified area (see Figure 5). The ATEX/IECEx motor (Pos. 2b in Table 2)
comes delivered with special connectors and relevant extension cables (Pos. 5a and 5b in Table 3). One
option to lead the cables outside of the classified area is an Ex certified cable sealing system as listed in
Table 4 (see Pos. 10) and shown in Figure 2.

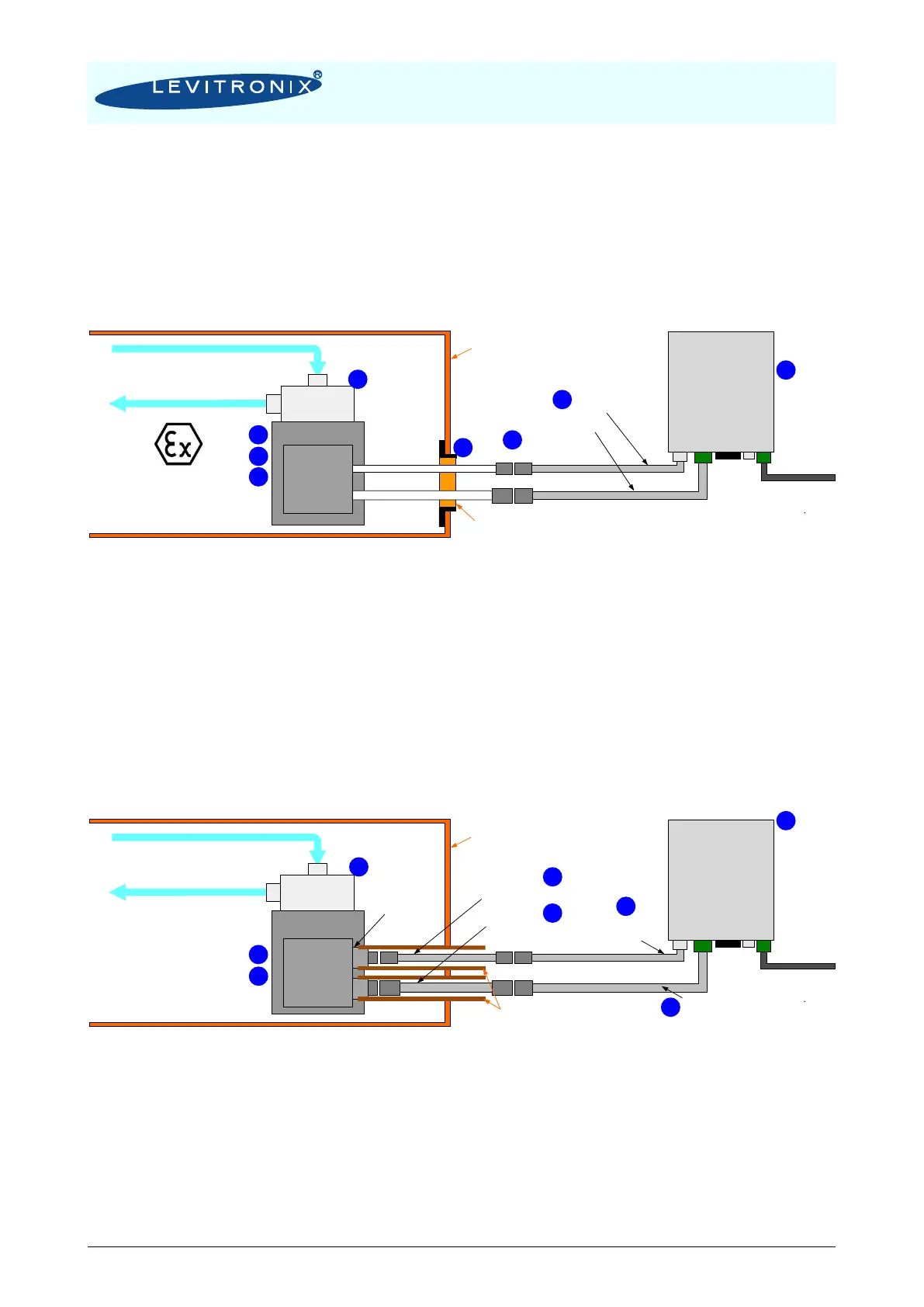

Figure 5: System configuration for ATEX / IECEx applications
2.2.4 Hazardous Location Cl1 Div2 System Configuration
Together with the standard pump head and controllers a Class1 Div2 certified motor allows installation of
motor and pump head in a hazardous classified area (see Figure 6). The Cl1 Div2 motor (Pos. 2d in Table 2)
comes with provisions for conduits which will lead the extension cables outside of the classified area.
Figure 6: System configuration for Cl1 Div2 applications
Motor
(ATEX)
Fluid In
Fluid Out
Motor Sensor Cable
Motor Power Cable
Adaptor/Extension
Cable for Sensors
Adaptor/Extension
Cable for Power
All
Controller
Types
ATEX conform cable sealing system
Cabinet Boundary for
ATEX Zone 2 Area
ATEX Zone 2 Classified Location
Chemical Resistance and IP-67 Space
3 x AC 200-240V or
1 x AC 200-240V
Pump Head
