Lexmark E120 - Paper Pick Assembly Removal

Repair information 4-15
4506-1xx

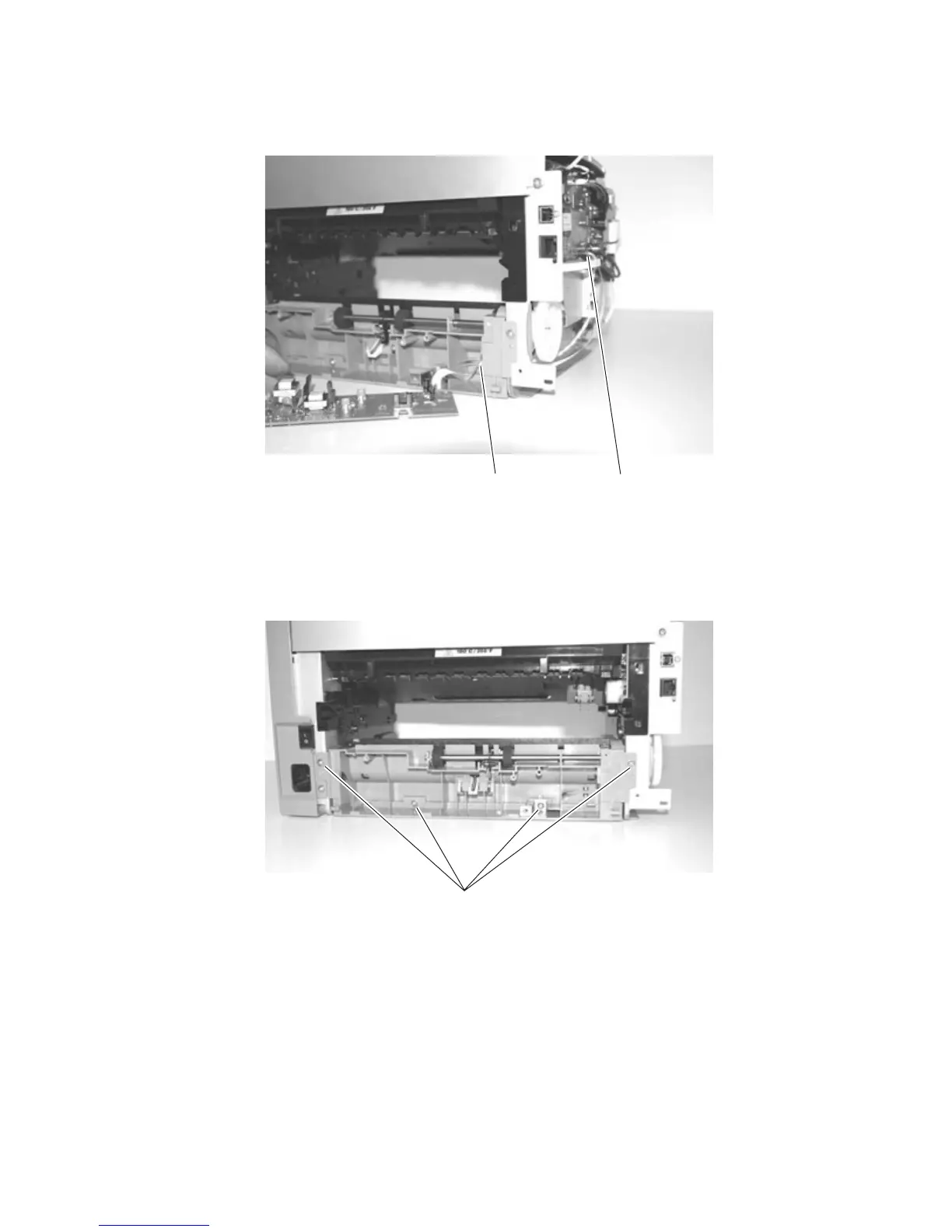

4. Disconnect the cable (B) from the controller card at J9.
5. Remove the card and cable assembly carefully by sliding the cable through the retainer (C).
Paper pick assembly removal
1. Remove the transfer card and input sensor assembly. See “Transfer card and input sensor assembly
removal” on page 4-14.
2. Remove the four screws (A).
C
B
A
