Lexmark E120 - LVPS;HVPS Removal

Repair information 4-19
4506-1xx

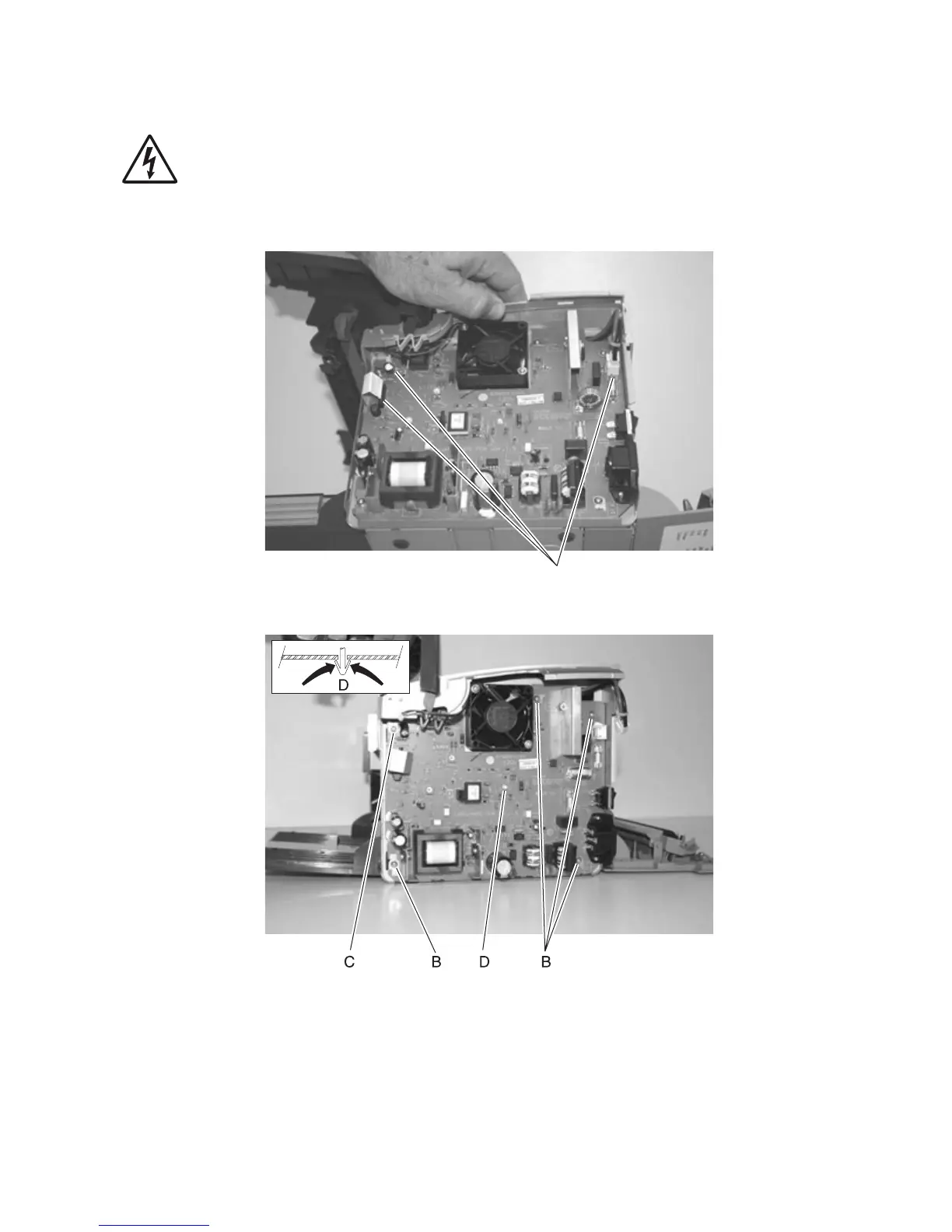

LVPS/HVPS removal
1. Remove the right cover. See “Right cover removal” on page 4-7.
2. Disconnect the three cables (A) connected to the LVPS/HVPS card.
3. Remove the four common screws (B) and the unique screw (C).
4. Squeeze the latch (D) to free the card.
A
