Lexmark S400 Series - Midframe Removal

Repair information 4-11
Lexmark S400 Series
Midframe removal
1. Remove the ADF/scanner assembly. See “ADF/scanner assembly removal” on page 4-3.

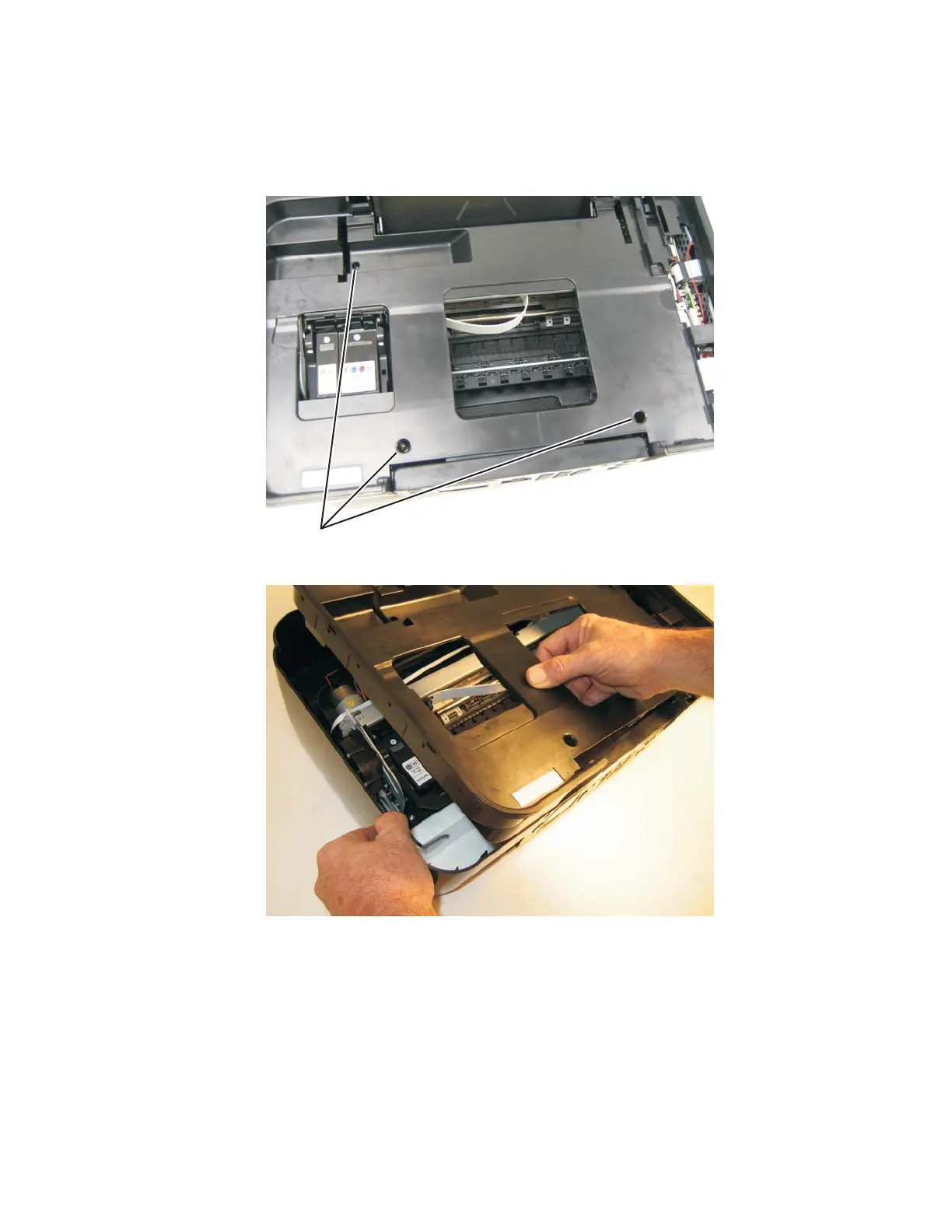

2. Remove the three screws (A) from the top of the midframe cover.
3. Disconnect the midframe cover from the left side of the printer base.
A
