Repair information 4-23
Lexmark S400 Series
Paper feed assembly removal
1. Remove the ADF/scanner assembly. See “ADF/scanner assembly removal” on page 4-3.
2. Remove the midframe. See “Midframe removal” on page 4-11.
3. Remove the operator panel. See “Operator panel removal” on page 4-18.
4. RFID card. See “RFID card removal” on page 4-27.
5. Remove the print engine. See “Print engine removal” on page 4-19.

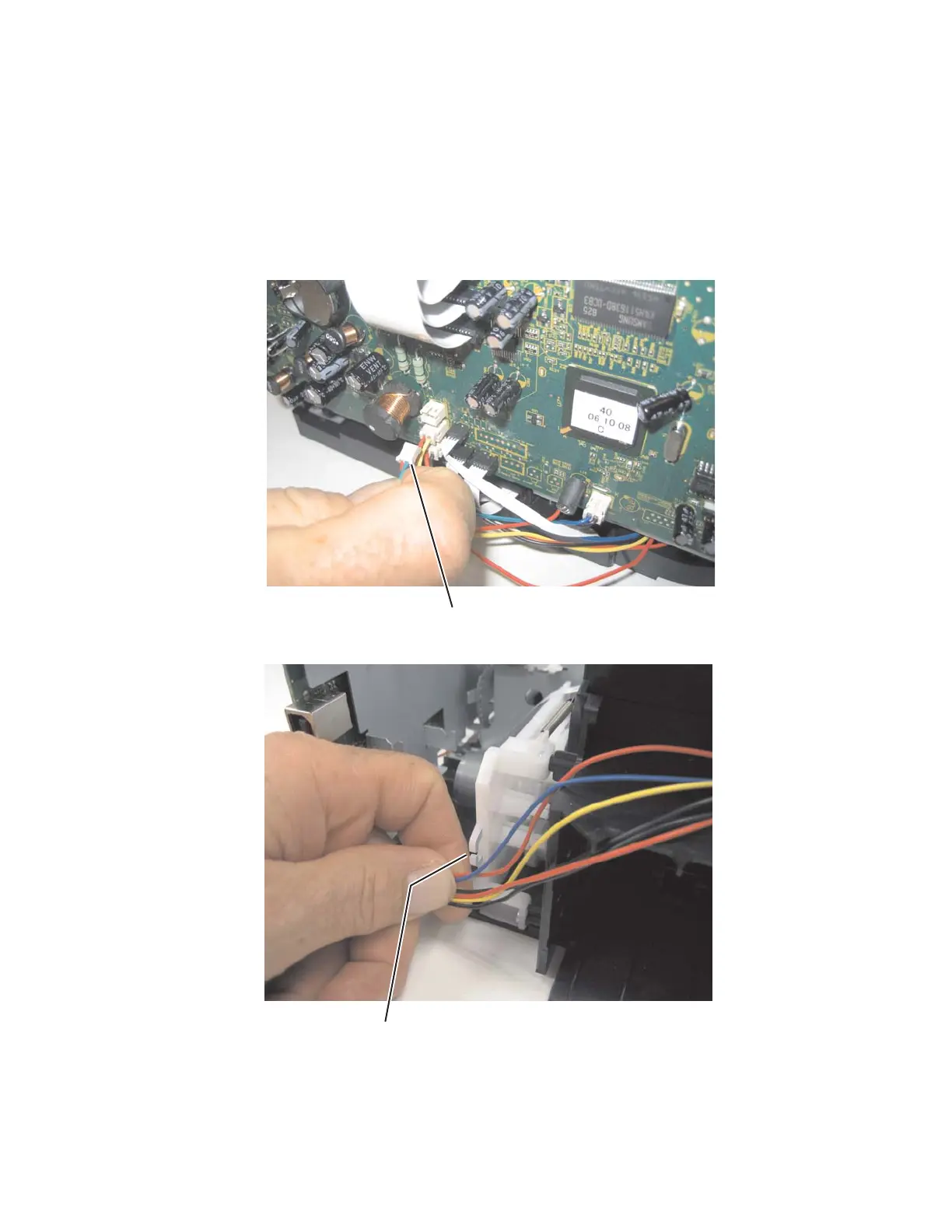

6. Disconnect the paper feed motor cable (A).
7. Loosen, and remove the cables from the clip (B).
A
B
