Repair information 4-19
Lexmark S400 Series
Print engine removal
1. Remove the ADF/scanner assembly. See “ADF/scanner assembly removal” on page 4-3.
2. Remove the midframe. See “Midframe removal” on page 4-11.
3. Remove the operator panel. See “Operator panel removal” on page 4-18.
4. RFID card. See “RFID card removal” on page 4-27.

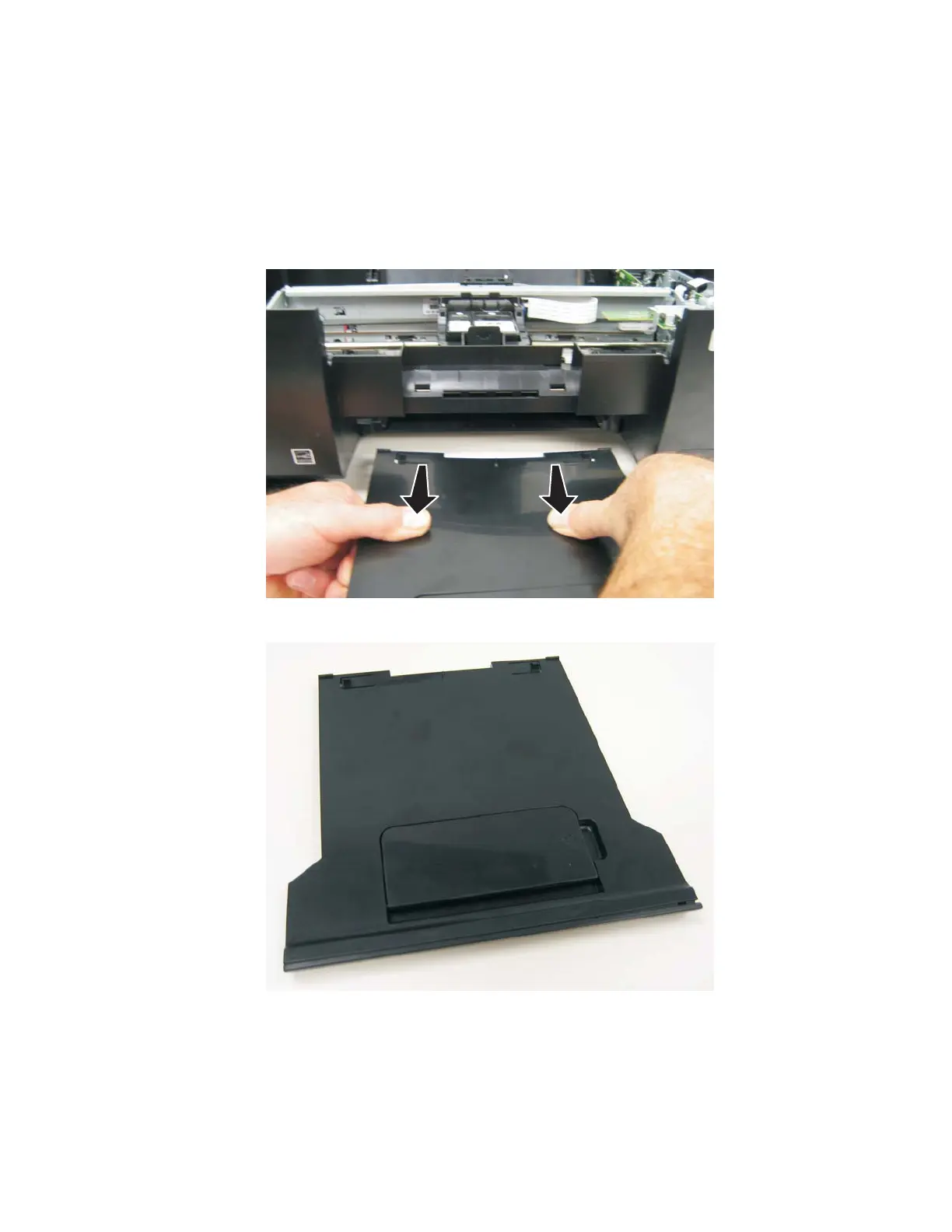

5. Press down in the middle of the paper exit tray to disconnect it from the front of the printer.
6. Remove the paper exit tray.
