Lexmark S400 Series - Printer Base Removal

4-42 Service Manual
Lexmark S400 Series
Printer base removal
1. Remove the ADF/scanner assembly. See “ADF/scanner assembly removal” on page 4-3.
2. Remove the midframe. See “Midframe removal” on page 4-11.
3. Remove the operator panel. See “Operator panel removal” on page 4-18.
4. Remove the print engine. See “Print engine removal” on page 4-19.

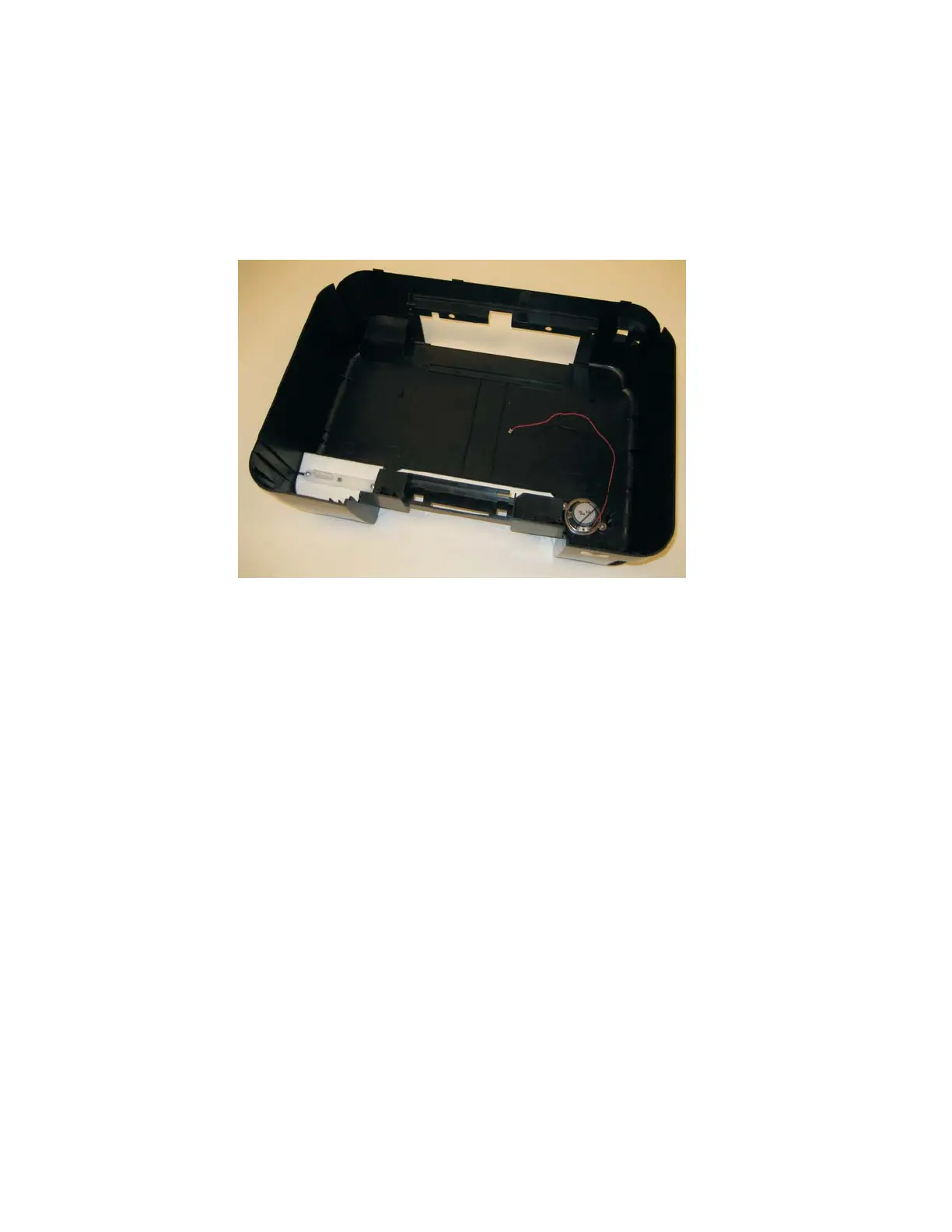

The printer base remains.
