Lexmark S400 Series Service Manual

Locations and connectors 5-1
Lexmark S400 Series
5. Locations and connectors
Locations

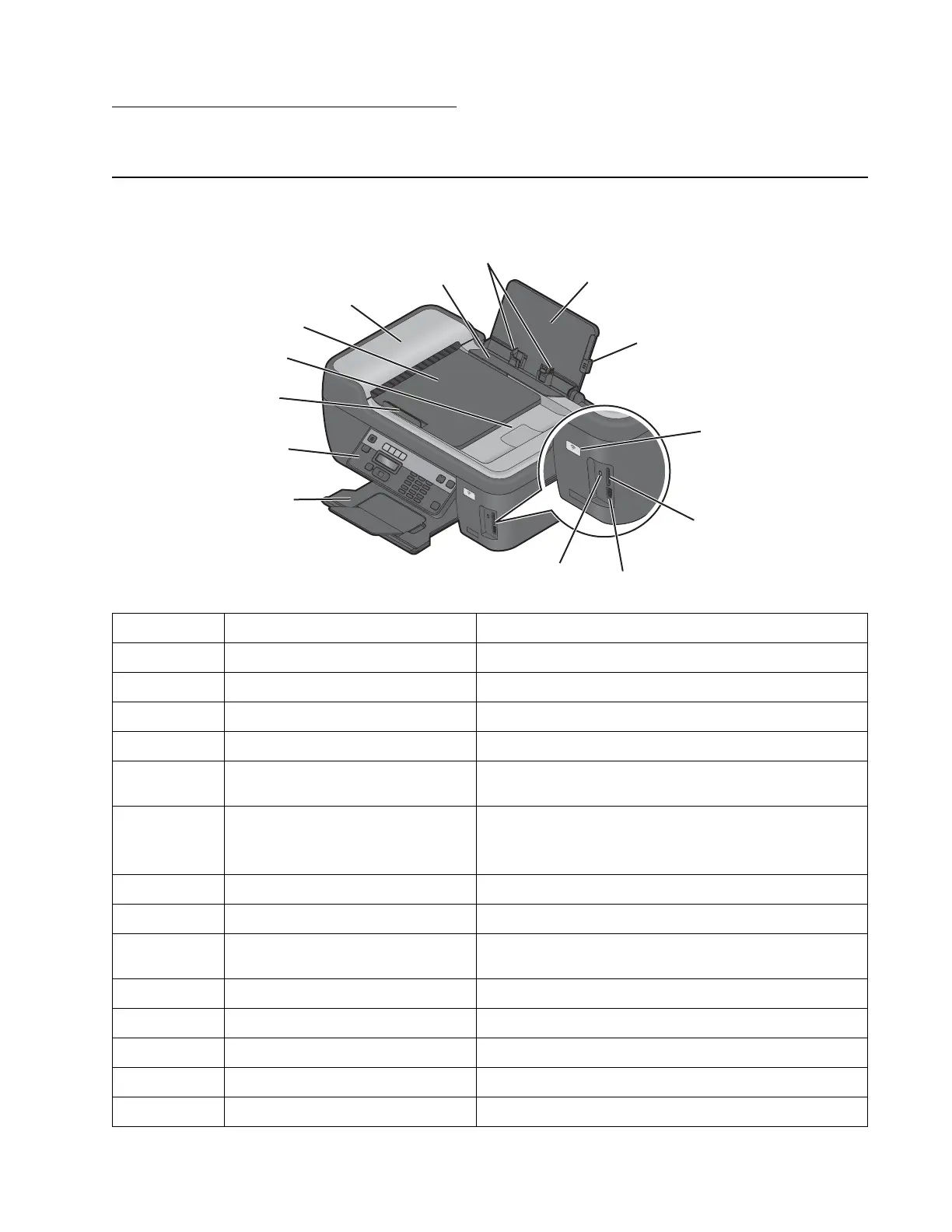

Front view
Number Part Function
1 Paper support Loads paper
2 Paper guide adjustment lever Adjusts the paper guides
3 Wi-Fi indicator Checks wireless status
4 Memory card slots Inserts a memory card
5 PictBridge and USB port Connects a PictBridge-enabled digital camera, Bluetooth
adapter, or a flash drive to the printer
6 Card reader light Checks card reader status
The light blinks to indicate that a memory card is being
accessed.
7 Paper exit tray Holds paper as it exits
8 Printer operator panel Operates the printer
9 Automatic document feeder (ADF)
paper guide
Keeps paper straight when feeding it into the ADF
10 ADF output tray Holds documents as they exit from the ADF
11 ADF tray Loads original documents in the ADF
12 ADF Scans, copies, or faxes multiple-page documents
13 Paper feed guard Prevents items from falling into paper slot
14 Paper guides Keeps paper straight when feeding
W
F
I
I
P
R
I
N
T
I
N
G
5
6
4
7
3
8
1
9
2
W
F
I
I
P
R
I
N
T
I
N
G
14
13
12
10
11
