Lexmark S400 Series - Page 67

Repair information 4-33
Lexmark S400 Series

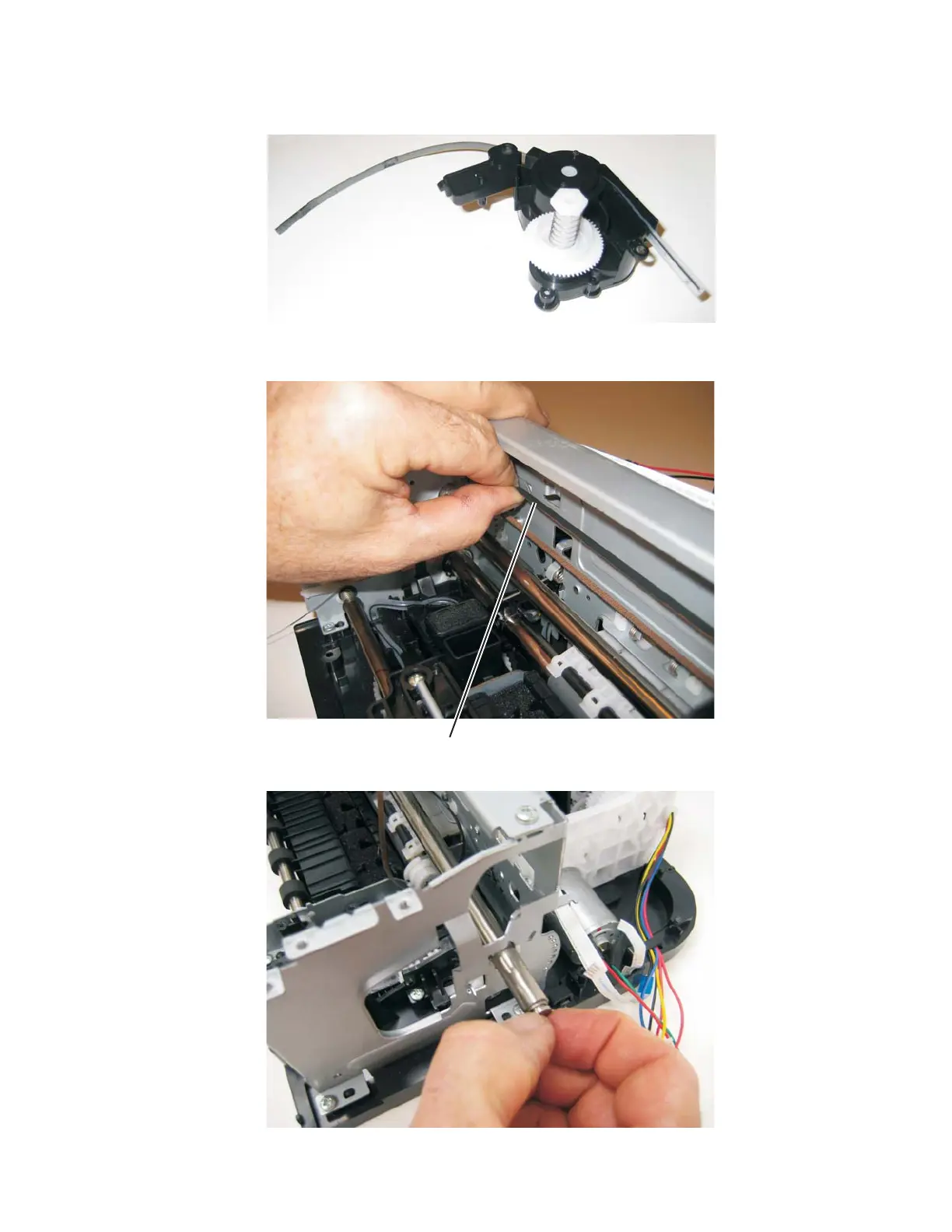

11. Lift the purge pump, and remove.
Note: Be sure to pay attention to the position of the encoder dial when reinstalling the purge pump.
12. Disconnect the belt (F).
13. Remove the carrier shaft through the right side of the carrier assembly frame.
F
