1.7.3 Wall Mount
LDP-9200 series phones can be mounted on the wall as
needed. The following instructions describe the wall mount
installation. Note the foot-stand must be removed.
1. If installed, remove the
foot-stand from the
Phone and DSS.
2. Connect all wiring to
the phone as described
in “1.7.1 Phone
connection”. Connect
the phone side wiring
only.
3. If required, install the
DSS console.

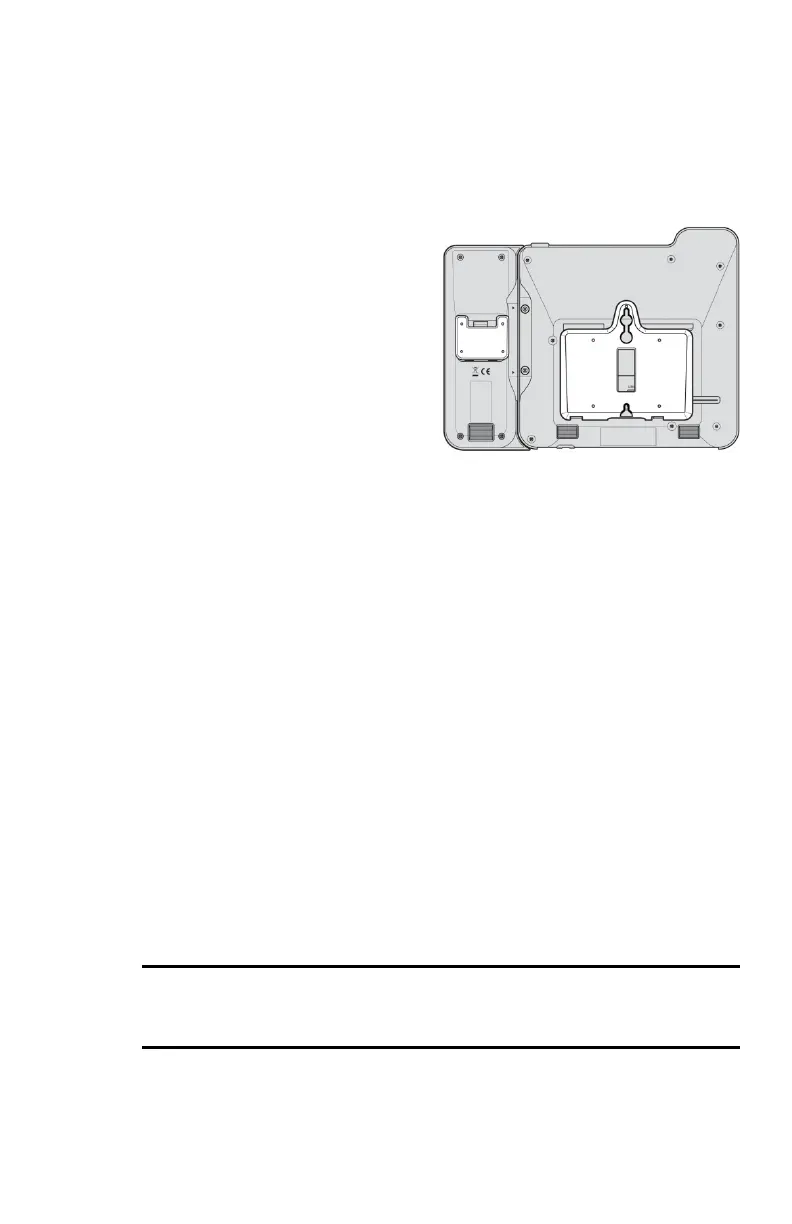

4. Align the wall-mount bracket (ordered separately) over the
back of the phone, then press the bracket onto the phone
applying steady pressure until it clicks into place.
5. Install the DSS console wall-mount bracket if required, in
the same way as the bracket for the phone.
6. Mark and drill two 7mm holes for plastic wall anchors (not
included).
7. Insert the two anchors into the holes, and insert and tighten
the two screws (not included) leaving about 2.5 mm (1/8-
inch) exposed.
8. Align the key holes in the bracket over the screws and slide
the phone down assuring the phone is secure.
9. Remove, reverse and re-install the handset hook so that
the hook catches the groove in the handset receiver.
10. Hang the handset up on the handset hook.
11. Complete all wiring connections as described in “1.7.1
Phone connection”.
NOTE
It may be necessary to remove the phone and tighten or
loosen the screws for a secure mounting.
