Setup Menu
SETUP MENU See: Description
1=SETUP INPUTS Setup Inputs Configure digital inputs
2=SETUP COMMON ALARM
Setup Common
Alarm
Set up the common alarm to reset with silence
3=SETUP ZONES Setup Zones Define areas with 2-4 devices each
4=SETUP OUTPUTS Setup Outputs Configure digital outputs
5=SETUP SYSTEM INFORMATION* Setup System Info Set up features such as password and date & time*
6=SETUP OPERATION Setup Operation Set up rotation sequence, standby testing
7=OVERRIDE OUTPUT Override Output Manually override automatic control of outputs
8=CLEAR ALARMS&LOGS
Clear Alarms &
Logs
Clear active alarms; clear alarm and event logs
9=RETURN TO MAIN MENU
SELECT A NUMBER:
* Setup System Information features are:
• Change Password
• Set Date & Time/Automatic Daylight Saving Time
• Setup Site ID
• Backup and Upload Configuration File (Service Terminal Interface only)
• Factory Defaults
• Firmware Update (Service Terminal Interface only)
Note that two of these system features—Backup and Upload Configuration File and Firmware
Update—are unique to the Service Terminal Interface.

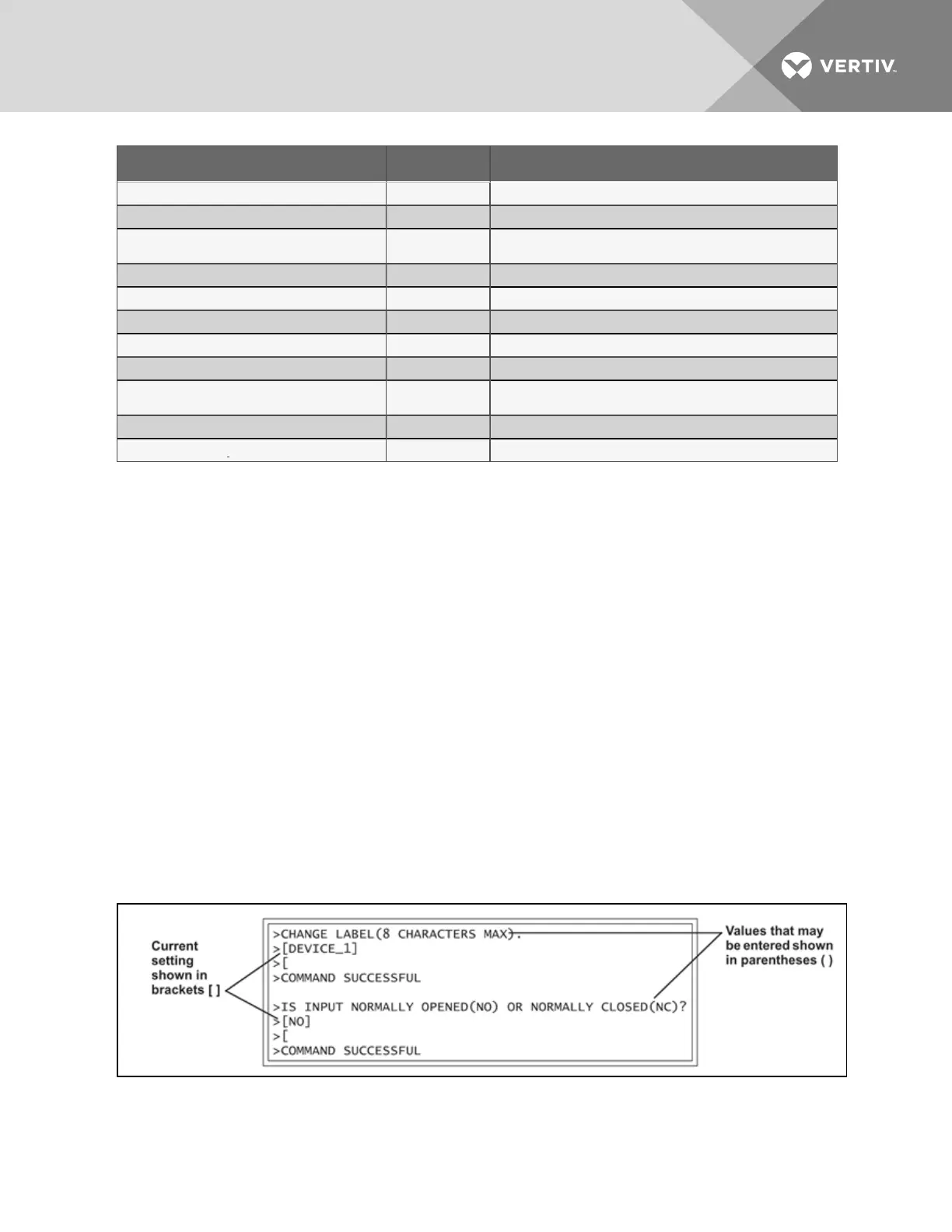

Tips on Using the Service Terminal Interface
Use the following tips when making changes in the Service Terminal Interface:
• Data that can be entered is shown in parentheses ( ) in prompt line.
• The current setting is shown in brackets [ ] in the line below the prompt
• To accept the current setting, press the Enter key.
• To change the current setting, enter the value and then press Enter.
• Pressing Escape will exit the current setup function or take you to the previous menu screen.
Setup Inputs
For details on this feature, see Setup System - Setup Inputs on page44.
