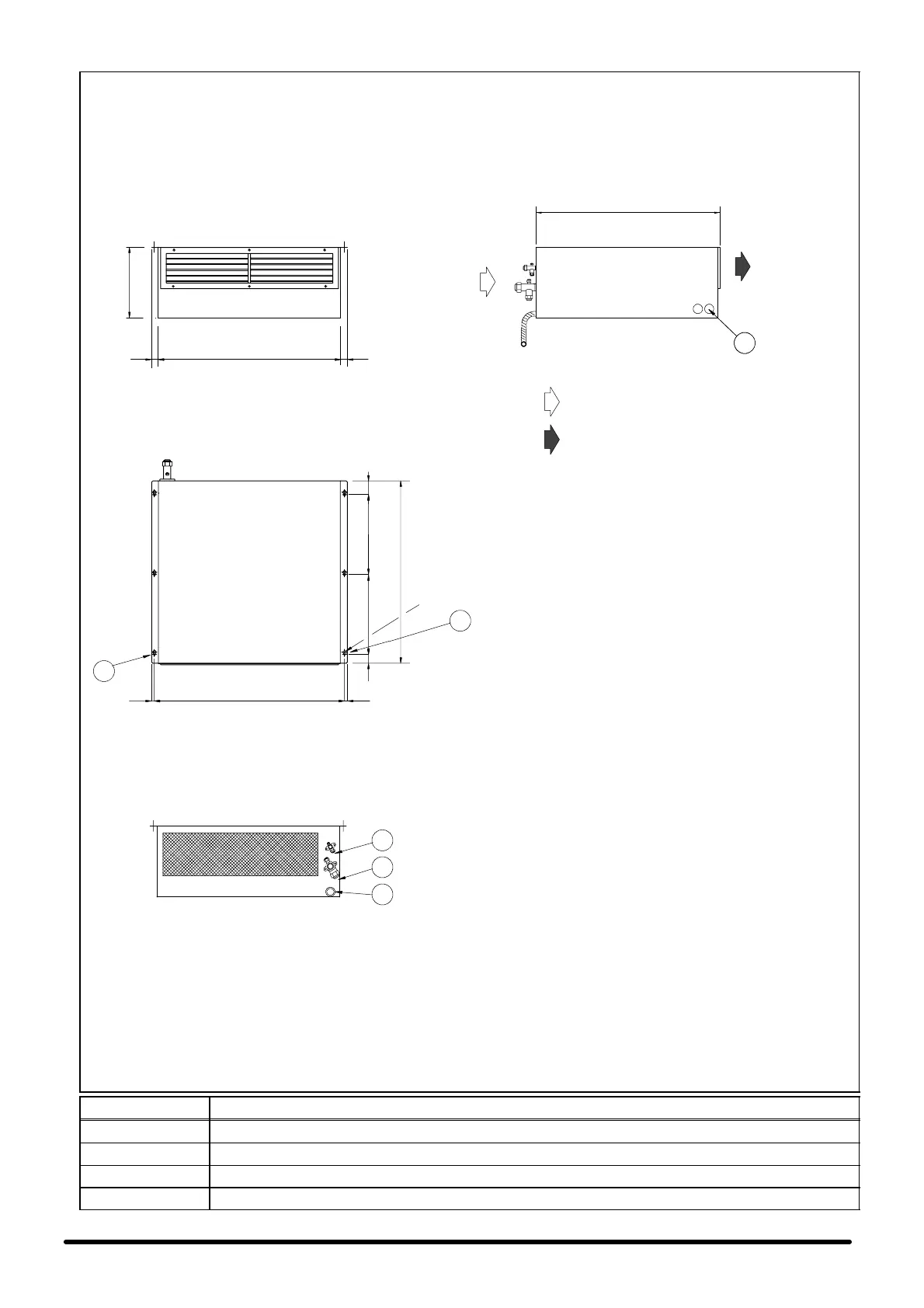

F i g . 1 --- O v e r a l l d i m e n s i o n s --- D i m e n s i o n i d i i n g o m b r o
F R O N T V I E W --- V I S T A F R O N T A L E
REAR VIEW --- VISTA POSTERIORE
conditioned air --- aria trattata
air return --- ripresa a ria
Fig. 1a --- Evaporator version without freecooling SE 05---06
Unità evaporante versione senza freecooling SE 05---06
800
80029 29
834 12
12
N . 6 H O L E S --- F O R I ø 8
SIDE VIEW --- VISTA LATERALE
TOP VIEW --- VISTA DALL’ALTO
800
350 6035040
310
E
S
U
I
E
E
E
POS. Description --- Descrizioni
E Electrical connections --- Collegamenti elettrici
S Condensate drain --- Scarico condensa
U Refrigerant outlet --- Uscita refrigerante
I Refrigerant inlet --- Ingresso refrigerante
