Lighting Controls Blue Box LT Series User Manual

44 THE BLUE BOX LT ADDING A NEW DEVICE
LCDBBAND04Sept08
DIGITAL TIME CLOCk (DTC) NAvIGATION BASICS
DTC CLOCk NAvIGATION BASICS
All devices can be programmed from the DTC (Digital
Time Clock) in the master Lighting Control Panel (LCP).
TAB moves the cursor through a screen
SWITCHES PAGE 1-1
#04: SWITCH 4
#05: SWITCH 5
#06: SWITCH 6
#07: SWITCH 7
#08: SWITCH 8
#09: SWITCH 9
#10: SWITCH 10
SCROLL to choose one item from a field.*
SWI ID05-5 toggle
EDIT: LCP-2 LOAD-1
Load 4
Load 3
Load 2
Load 1
* A “field” is a display in which many items can be selected.
This“eld” contains a list of possible
selections, but only displays one item
from that list at a time.

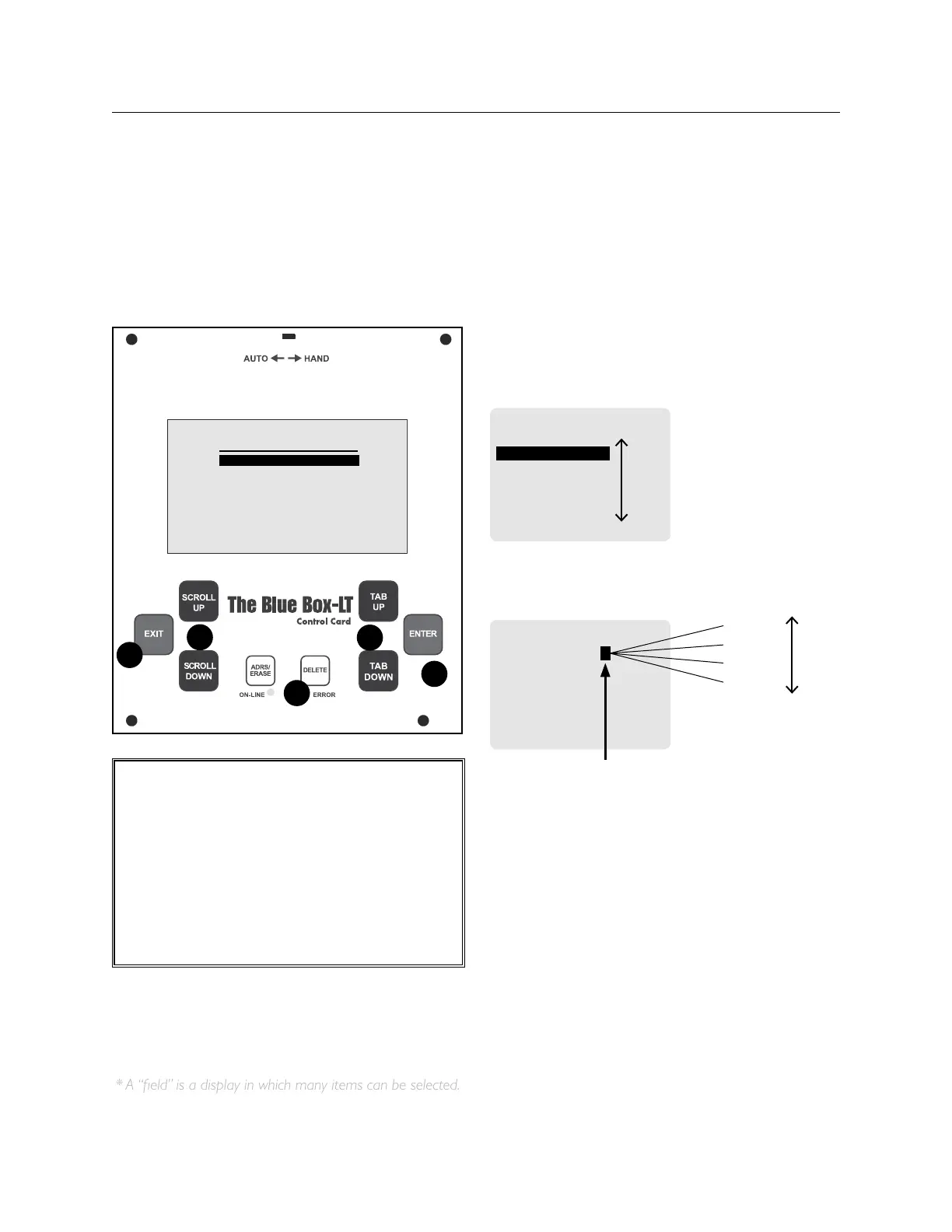

DTC CLOCk NAvIGATION BASICS
Most devices can be programmed from the DTC
(Digital Time Clock) in the master Lighting Control
Panel (LCP).
USER MENU
MANUAL OVERRIDE
REVIEW SCHEDULE
GROUP LOADS
PROGRAM SWITCH
SETUP MENU
1
3
4
5
2
CALL OUT LEGEND:
SCROLL through choices in one fi eld*1.
TAB to position the cursor2.
DELETE information or programming about 3.
an item. Use caution.
ENTER to select4.
EXIT to leave a screen.5.
TAB moves the cursor through a screen
SWITCHES PAGE 1-1
#04: SWITCH 4
#05: SWITCH 5
#06: SWITCH 6
#07: SWITCH 7
#08: SWITCH 8
#09: SWITCH 9
#10: SWITCH 10
SCROLL to choose one item from a fi eld.*
SWI ID05-5 TOGGLE
EDIT: LCP-2 LOAD-1
Load 4
Load 3
Load 2
Load 1
* A“fi eld” contains a list of possible selections, but only displayed one item from that list at a time.
This“ eld” contains a list of possible
selections, but only displays one item
from that list at a time.
