LCDBBPRIG03Sept08
THE BLUE BOX LT PARTS REPLACEMENT & INSTALLATION GUIDE 53
Navigate to SCAN BY SERIAL NUMBER screen: 13.
USER MENU > SETUP MENU > RESTRICTED
(PASSCODE 900001) > ADDRESSING –
BUS SCAN> BUS DIAGNOSTICS > MORE
DIAGNOSTICS > DEVICE MANAGEMENT >
SCAN BY SERIAL#
SERIAL# SCAN
BACK FWD |SAVE|
SERIAL# CE80
ADR: 1
LCP1
NO ADDRESS COLLISION FOUND ON
THIS CARD
ENTER to begin a system scan.14.
If collisions exist, contact Technical Support.15.
If no collisions exist or collisions have been 16.
resolved, the bus needs to be mapped so that
the devices can be programmed. Navigate to
the BUS MAP screen: USER MENU > SETUP
MENU > RESTRICTED (PASSCODE 900001) >
ADDRESSING – BUS SCAN> BUS MAP.
Re-program Groups
Any Groups which had relays in the LCP with the 17.
new control card will need to be modified to add
back the relays from that LCP. Relays from other
LCPs remain unaffected.

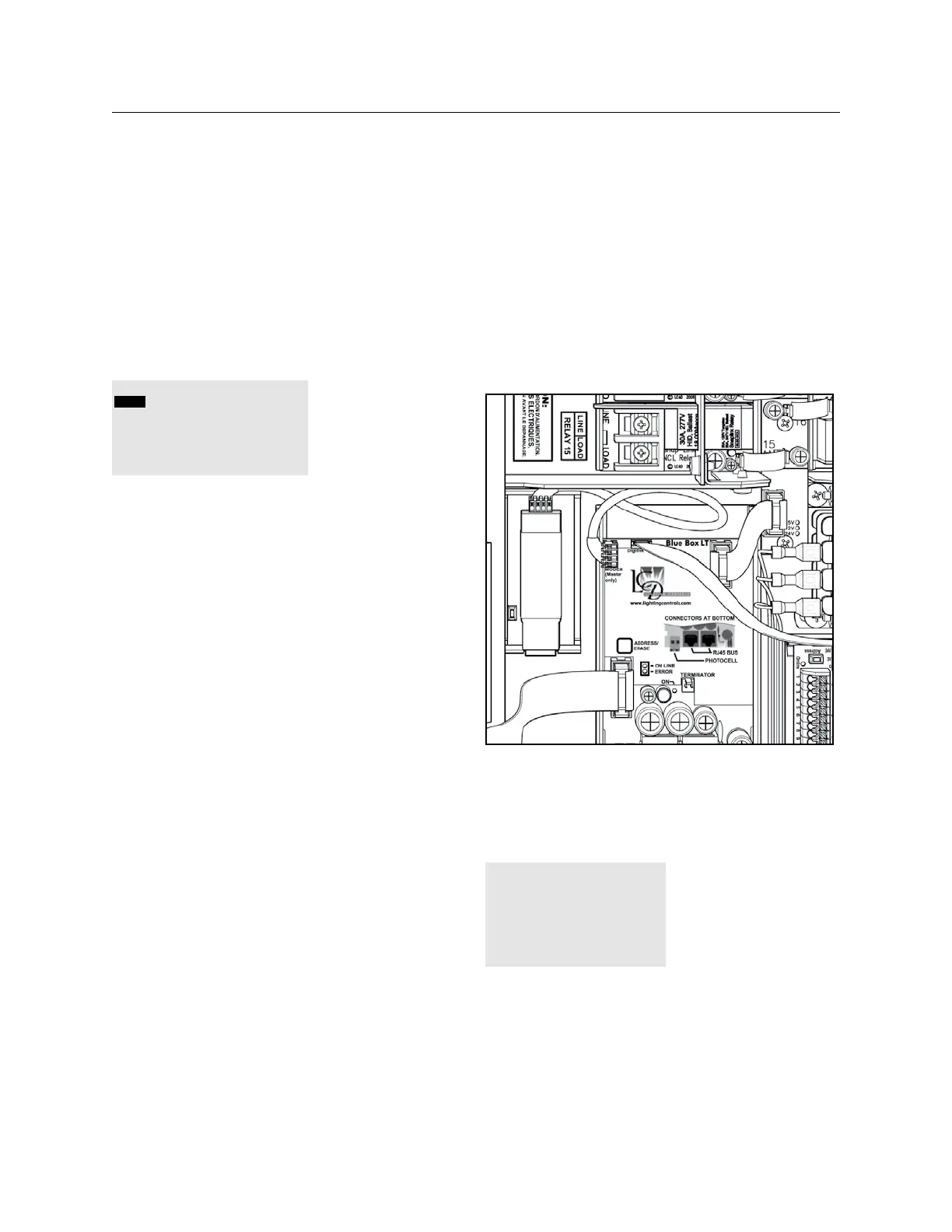

REPLACING A MODEM (MASTER PANELS ONLY)
To remove a defective modem
Disconnect the power/data cable connected to 1.
the modem.
Disconnect the RJ-12 (phone line)2.
Pry the modem out of the plastic track by applying 3.
a flat-blade screw driver to the slot located on
the side of the card.
To replace a defective Modem
Snap the new modem into the plastic track .4.
Re-connect cables. 5.
Re-power the Blue Box LT6.
After the defective part replacement installation 7.
is complete, return the part using the prepaid
USP return label and envelope to LC&D.
[Note: If the defective part is not returned within a
30-day period, your account will be automatically billed
for the part. ]
Modem
To verify replacement modem is operational:
Navigate to the DIAL UP HOST screen: USER 8.
MENU > SETUP MENU > RESTRICTED
(PASSCODE 900001) > REMOTE SYSTEM
MENU > DIAL UP HOST
DIALING UP HOST
ENTER THE COMPLETE
PHONE NUMBER OF THE
HOST AND HIT ENTER.
Refer to the DIAL UP HOST section in the O&M 9.
manual to place an outbound call to a cell phone
or land line.
A successful call means installation is complete. 10.
If the call was not successful, contact Technical
Support for assistance.
