Dante
®
Audio Interface
DIFFERENCE: The following section refers to the UCX-4x2-HC30D model. #new
UCX-4x2-HC30D model contains a special module that allows de-embedding the audio stream of the
incoming HDMI signal and transmitting as a 2-channel Dante
®
or AES67 source over the dedicated RJ45
connector. The chosen audio signal is mirrored to the analog audio port. #dante #audio
The same signal is sent to both analog and Dante audio outputs. Both can be muted at the same time by
Supported Audio
** The supported sample rates are 44.1, 48, 88,2 and 96 kHz.
Dante
®
Important Notes
▪ The AES67 mode is supported by the UCX-4x2-HC30D which can be set in the Dante
®
Controller software.
▪ Multichannel or encoded audio format cannot be de-embedded. In this case, no audio is sent to the
Dante
®
network.
Input audio type Signal support
supported
Multichannel not supported
not supported
Settings and Signal Routing

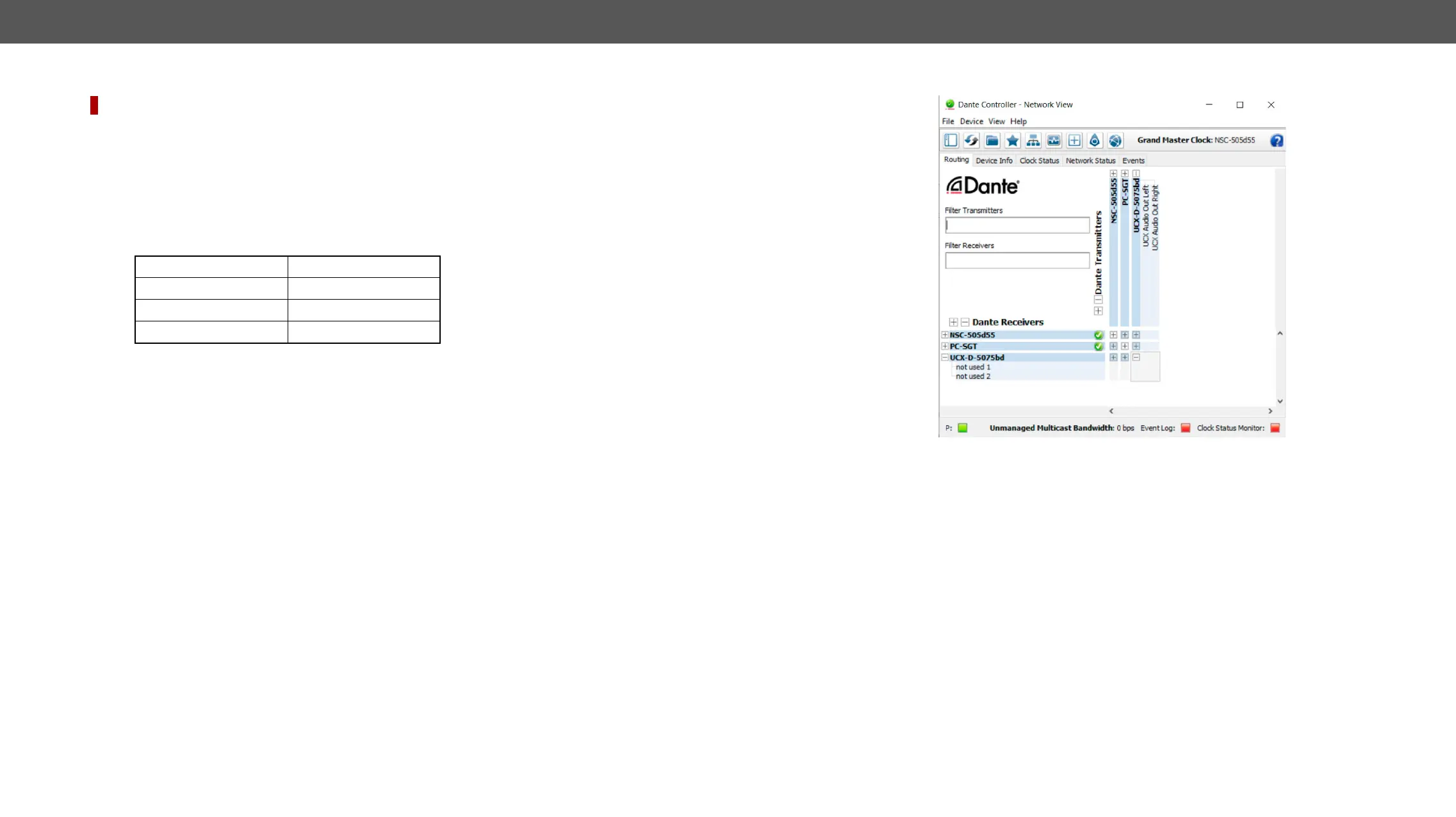

All these features are available in the Dante Controller software which can be downloaded from manufacturer's
web page:
