Port Properties Window
Clicking on the port tile opens the Port properties window. This section shows the available settings and
status information by port types. #lock #unlock #mute #unmute
Welcome Screen
#welcomescreen
ATTENTION!
of them can be selected to any output. Busy label on the crosspoint tile refers to the limitation.
General
Port name
The name of a port can be changed by typing the new name and clicking on the Set button. The following
dot (.). Max length: 63 characters.
Lock #lock #unlock
The port can be locked to the currently connected output ports by putting the tick. If the port is locked, the
crosspoint state of this port cannot be changed.
Mute #mute #unmute
the input port.

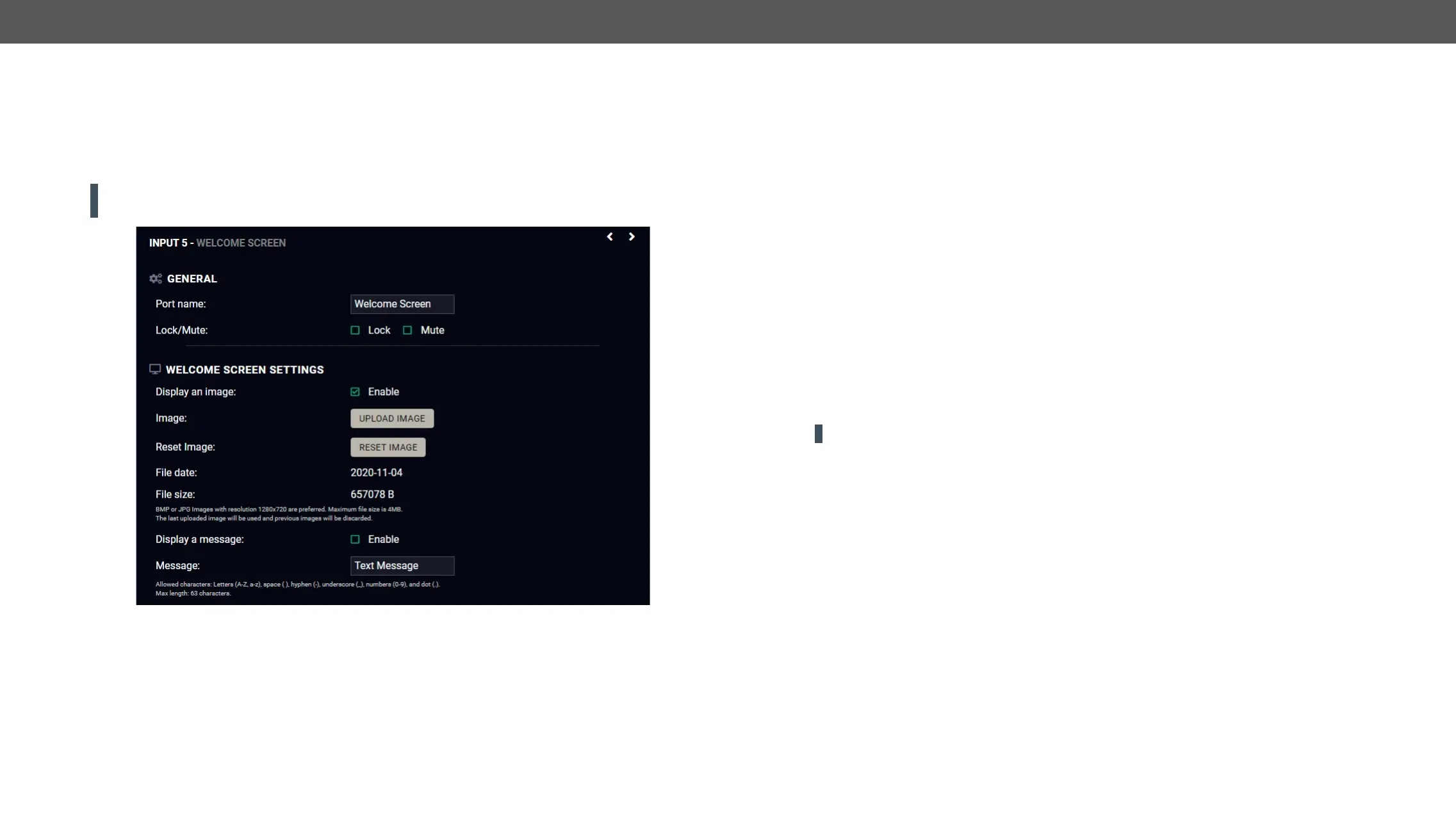

Welcome Screen Settings
Display Welcome Screen Image
Put a tick to Display Welcome Screen Image to enable the appearance of the internal image.
Upload Image
Click to the Upload Image Button to browse
ATTENTION! Uploading a new image will overwrite the previous one.
Reset Image
Clicking on reset image button restores the factory default state.
Display Welcome Screen Message
Put a tick to Display Welcome Screen Message to enable the appearance of the text message.
Welcome Screen Message
space ( ) and dot (.). Max length: 63 characters.
