 UCX series – User's Manual 53

Creating an EDID - Easy EDID Creator
Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID,

Creator it is possible to create custom EDIDs in four simple steps. By clicking on the Create button below
Source panel, Easy EDID Creator is opened in a new window. For more details about EDID Editor please visit
our website (www.lightware.com) and download the EDID Editor Application note.

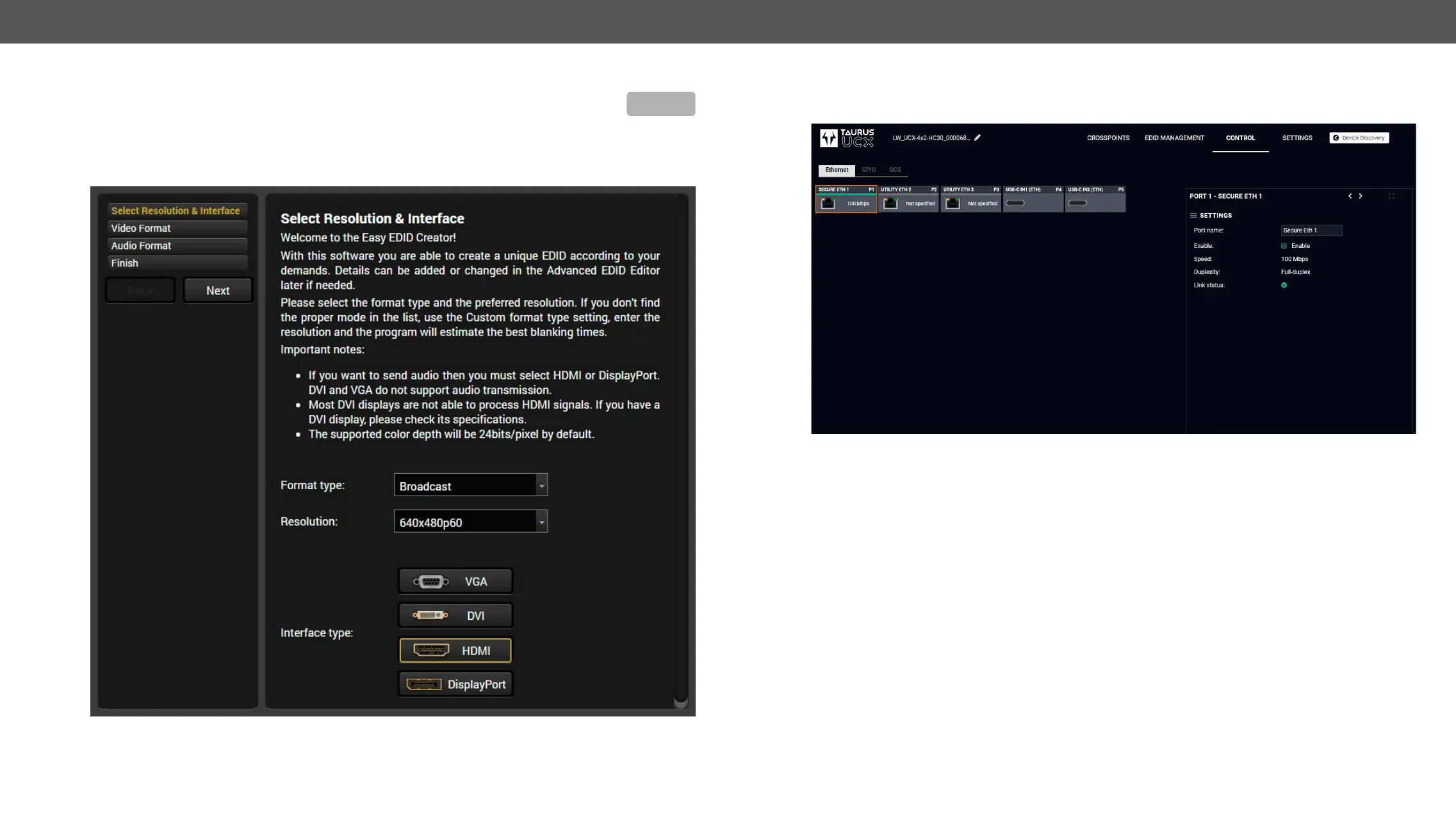

EDID Creator Window
CREATE
Control Menu
Ethernet
Ethernet tab in Control menu
Five ports are displayed in the Ethernet settings: Three of them belong to the RJ-45 Ethernet connectors. You
can check the status of the Ethernet line by each ports: the speed and the duplexity of the connection. The

The following settings are available for each ports:
▪ Rename the port
▪ 




