USE AND MAINTENANCE MANUAL – DLC
NET
Series
Use as interface with indicator
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016

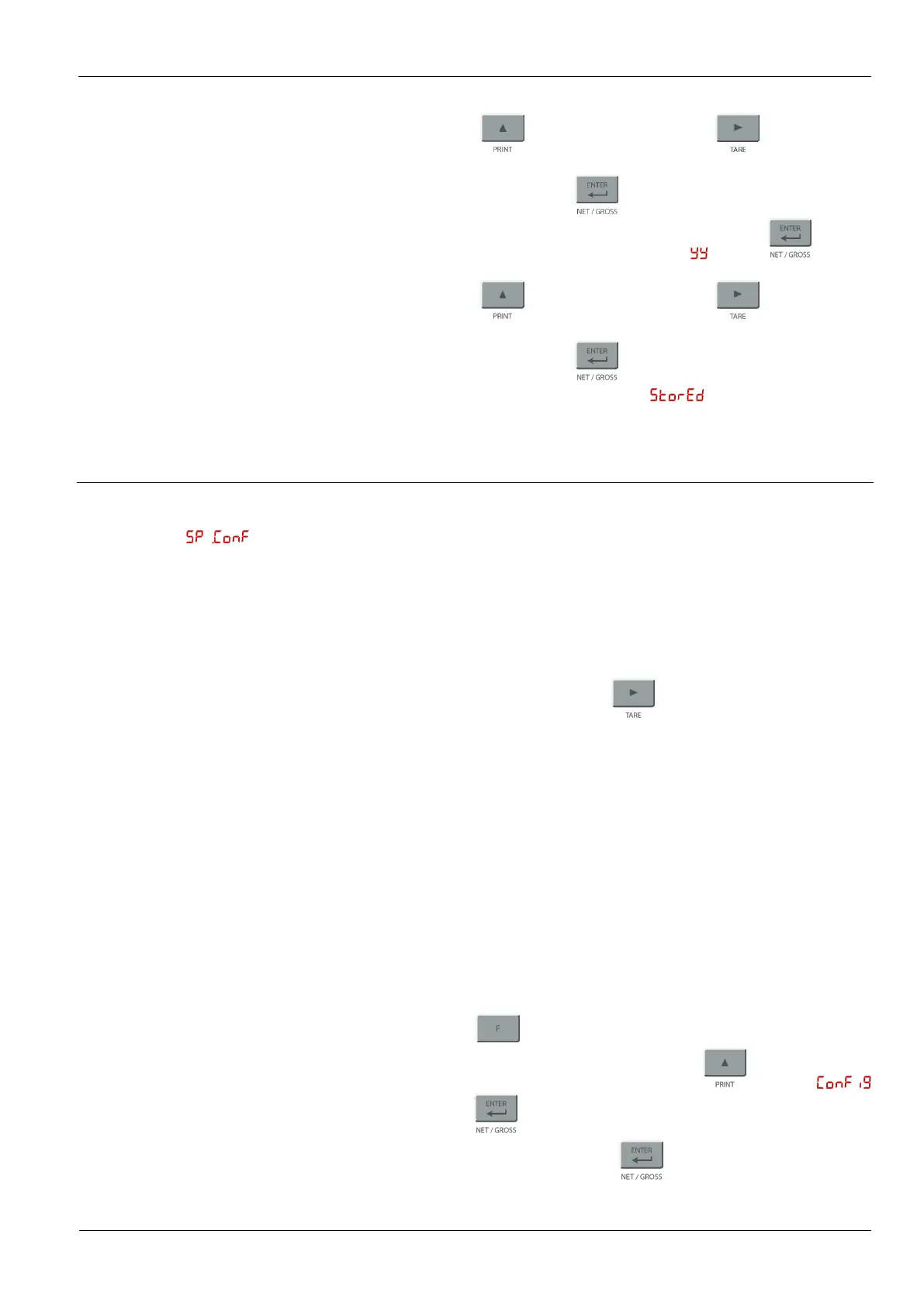

The display will show current month and day with the first digit flashing.
Use the buttons to increase the digit and to move on to
editing the next one.
Once editing is complete press to confirm the month and day.
The last parameter the display show will be . Press to start
editing the year.
Use the buttons to increase the digit and to move on to
editing the next one.
Once editing is complete press to confirm.
At this point the instrument will show and the procedure is
finished.
5.6 Setpoint use and configuration
5.6.1 Setpoint intervention
mode ( )
The setpoint outputs are available for the expansion board -EB.
The mode of operation of the setpoint is normally referred to the gross weight of
the scale. This means that the tare button does not change the set value.
It is possible to select, for each of setpoint, the way of action refers to the net
weight.
In this mode, when you press the button , the set point is recalculated
automatically and stored, that is added (in algebraic mode) to the set the tare
value previously acquired.
The setpoint concerned shall take both increase that to decrease the weight on the
scale.
The intervention of the set point can be selected to increased or to decreased
weight. They therefore define a high and a low alarm:
High Alarm: relative to setpoint output goes into conduction when the
weight is equal to or greater than the set point.
Low Alarm: relative to setpoint output goes into conduction when the
weight is equal to or below than the set point.
To select the operating mode:
Press the button to access the top-level configuration menu.
Move through the menu by pressing the button until the
menu and press to enter the menu.
Enter any password (if set) and press to confirm.
