Page 13 / 43
3. Commissioning
Commissioning involves the procedures required to ensure that the height of an
electric height-adjustable desk can be adjusted with the COMPACT control unit.
Requirements for commissioning:
• The COMPACT control unit must be mounted (as described in section 2)
• The table legs for adjusting the desktop must be mounted
Danger:
Qualified technicians have the necessary electrical engineering training
and are familiar with this user manual.
3.1 COMPACT sockets
The COMPACT control unit (COMPACT-3 can drive three motors) has the following
sockets:
S
1
2
3
P
F
D

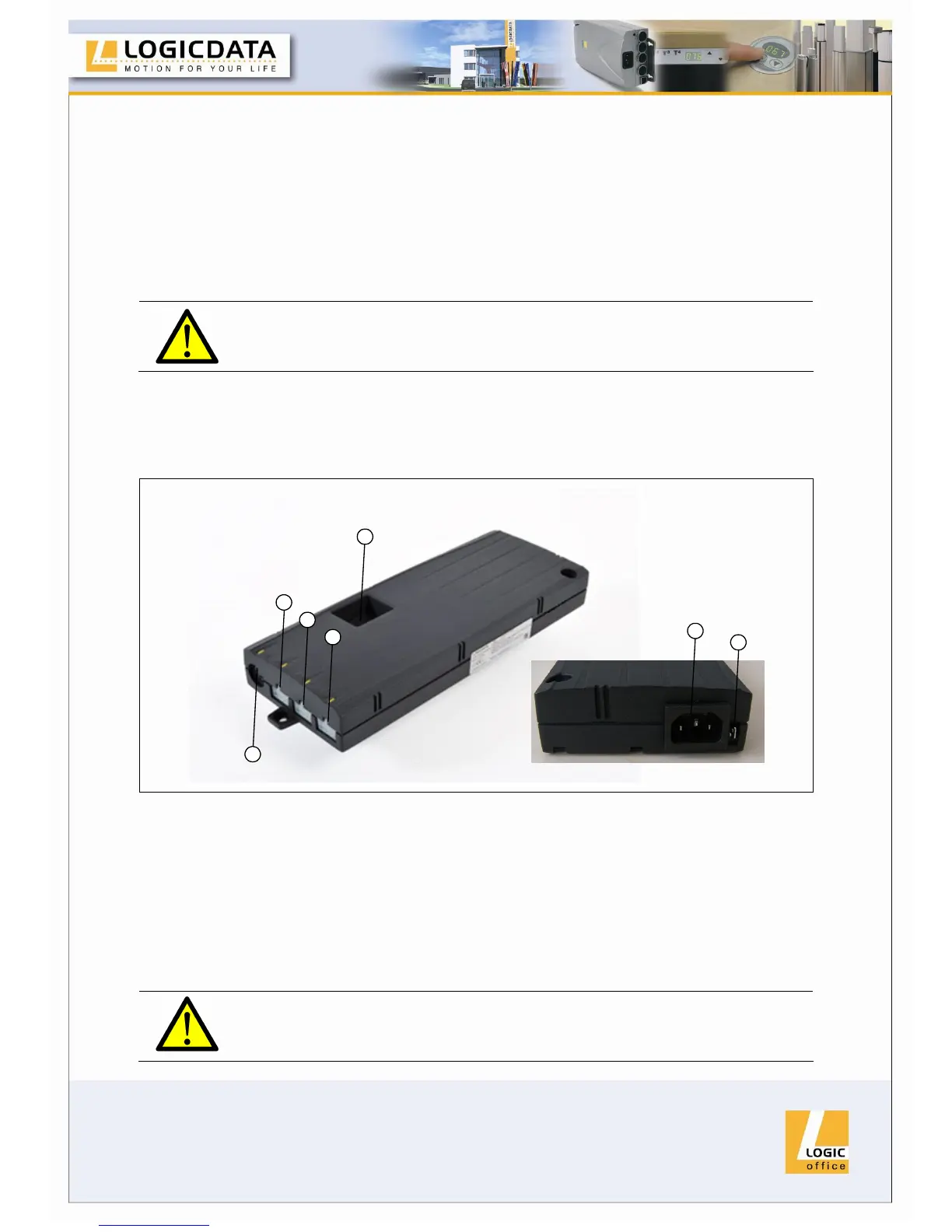

Figure 4: Sockets
Motor socket 1 (M1)
Motor socket 2 (M2)
Motor socket 3 (M3)
S Handswitch socket (HS)
P Mains socket
F Functional earth, cable lug for earthing the desk frame (6,3x0,8mm lug)
D Logic Connector DATA for sensors and cascading
Danger: it is not allowed to connect self constructed products to
LOGICDATA motor controls. To prevent damage of the unit, use only
components suitable for LOGICDATA motor controls.
