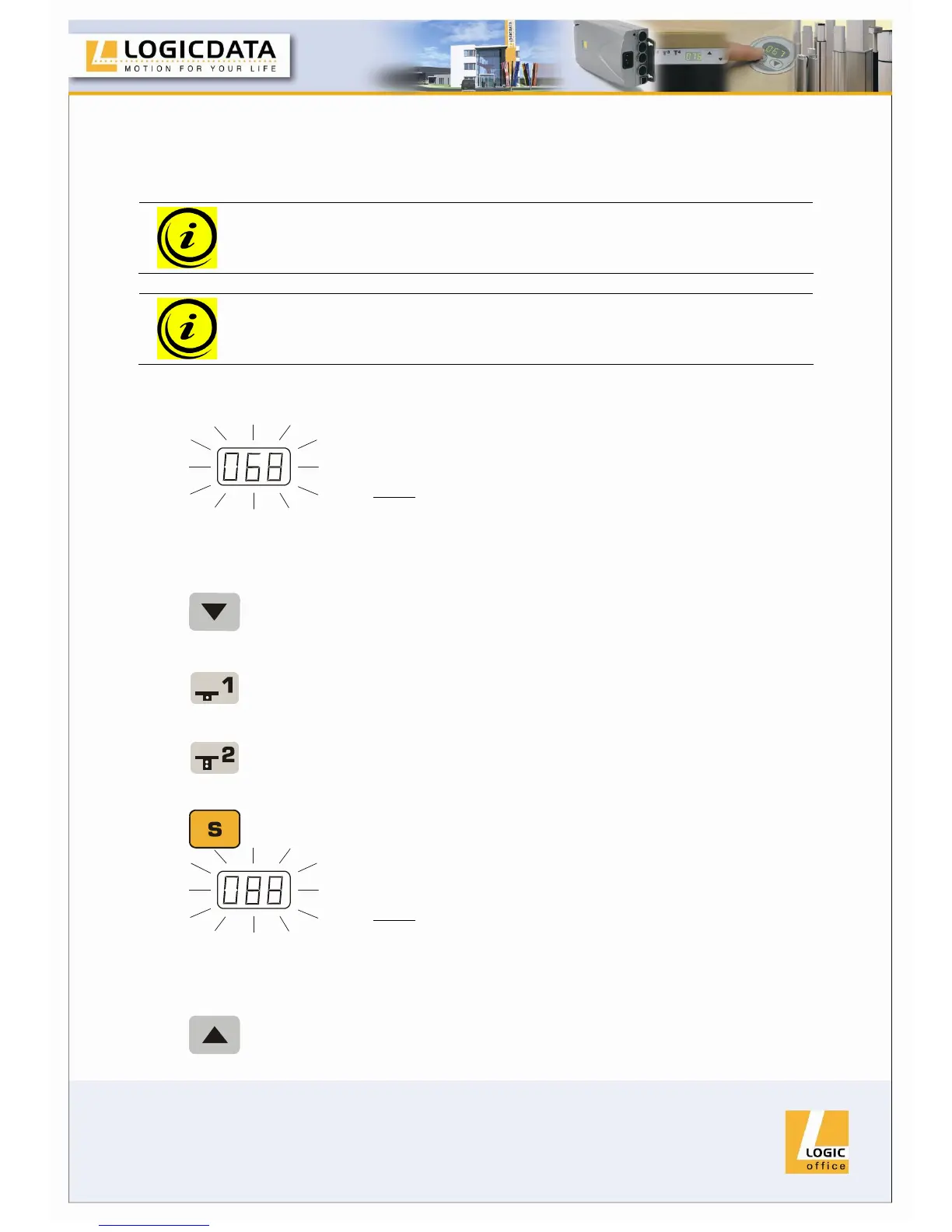

4.2.6 Limit position calibration
The limit positions must be calibrated during commissioning after the control unit has
been installed.
Note: there is the option of having all the settings required for
commissioning carried out at the factory.
Note: a handswitch with display and memory keys is necessary.
To calibrate the limit positions, proceed as follows:
1.
068 flashes on the display.
Note:
068 is shown if the handswitch display is set up to show
the height in centimetres.
If the display is set up to show the height in inch, the
display shows 027 in this step!
2.
Press the desktop down key until the desktop reaches
the lowest position.
3.
Set the current desktop height on the display.
Press memory position key 1 to increase the desktop
position displayed (movement locked in every
direction).
Press memory position key 2 to decrease the desktop
position displayed (movement locked in every
direction).
4.
Press the memory key.
088 will flash on the display.
Note:
088 is shown if the handswitch display is set up to show
the height in centimetres.
If the display is set up to show the height in inch, the
display shows 035 in this step!
5.
Press the desktop up key until the desktop reaches the
highest position.
