Page 31 / 43
COMPACT-2
Output Power and sum curr
channels
Hi Power cycle:
20s UP: 14A@20V 280W
20s DOWN: 3,5A@33V 115,5W
Pause: 9min
Normal cycle 1/9:
30s UP: 11A@24V 264W
30s DOWN: 3,5A@33V 115,5W
Pause: 9min
Normal cycle 2/18:
2min move: 3,5A@33V 115,5W
Pause: 18min
Max. current per motor channel 8A per motor channel
Maximum sum current restricted,
values shown above
Weight (typical) 490g
Nameplate

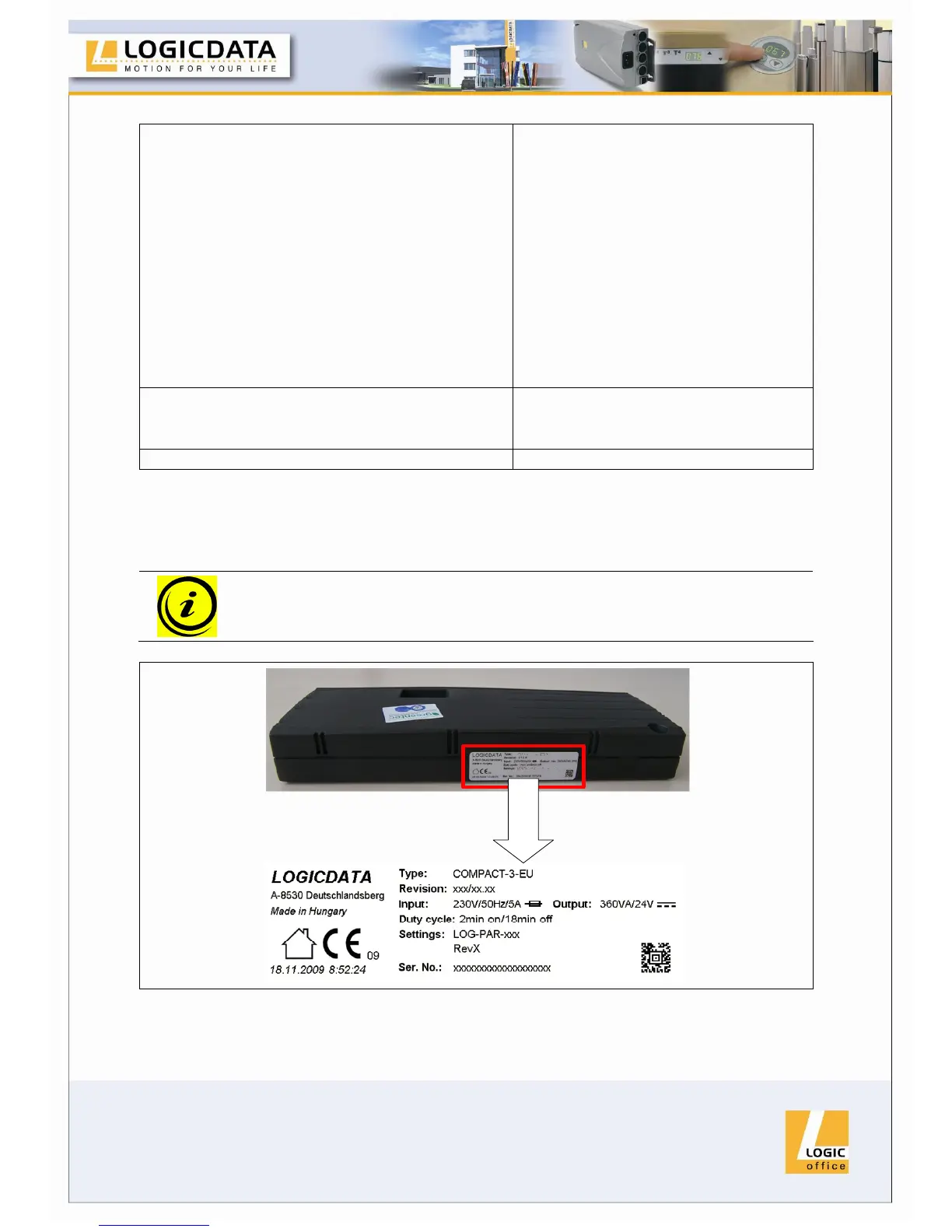

The figure below shows the nameplate and its location on the control unit.
Note: the details on the nameplate depend on the COMPACT control
unit model (see technical data).
Figure 6: Nameplate
