4.2 DIMENSIONS
200,0 mm
7.874”
84,5 mm
3.326”
218,2 mm
8.590”
35,0 mm
1.377”

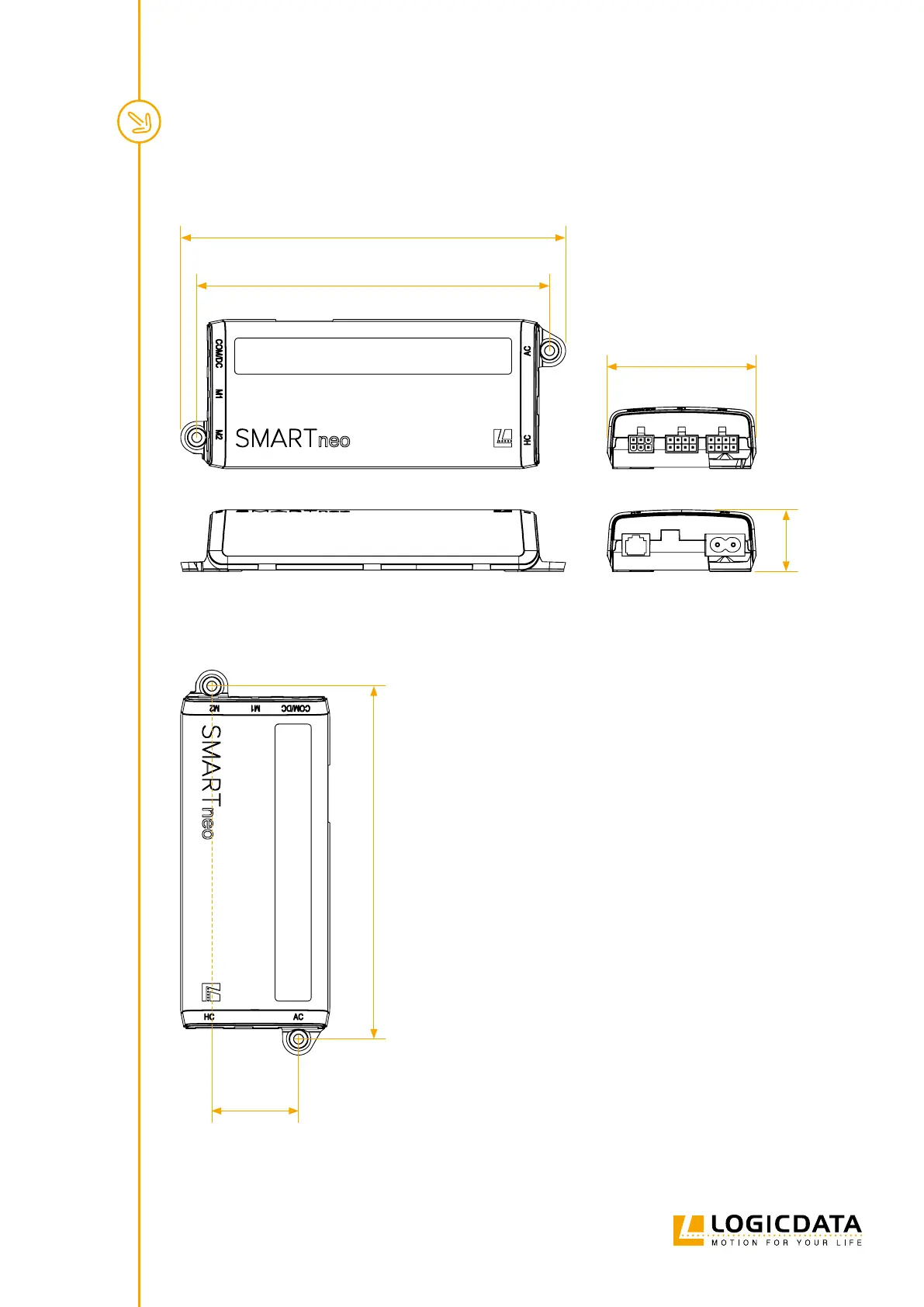

Fig. 3: Dimensions SMARTneo-2G / SMARTneo-3G
4.2.1 DRILLING TEMPLATE
200,0 mm (± 0,35 mm)
7.874” (± 0.014”)
49,2 mm
(± 0,15 mm)
1.937”
(± 0.006”)
Fig. 4: Drilling Template SMARTneo-2G / SMARTneo-3G
