Using the Main Menu17

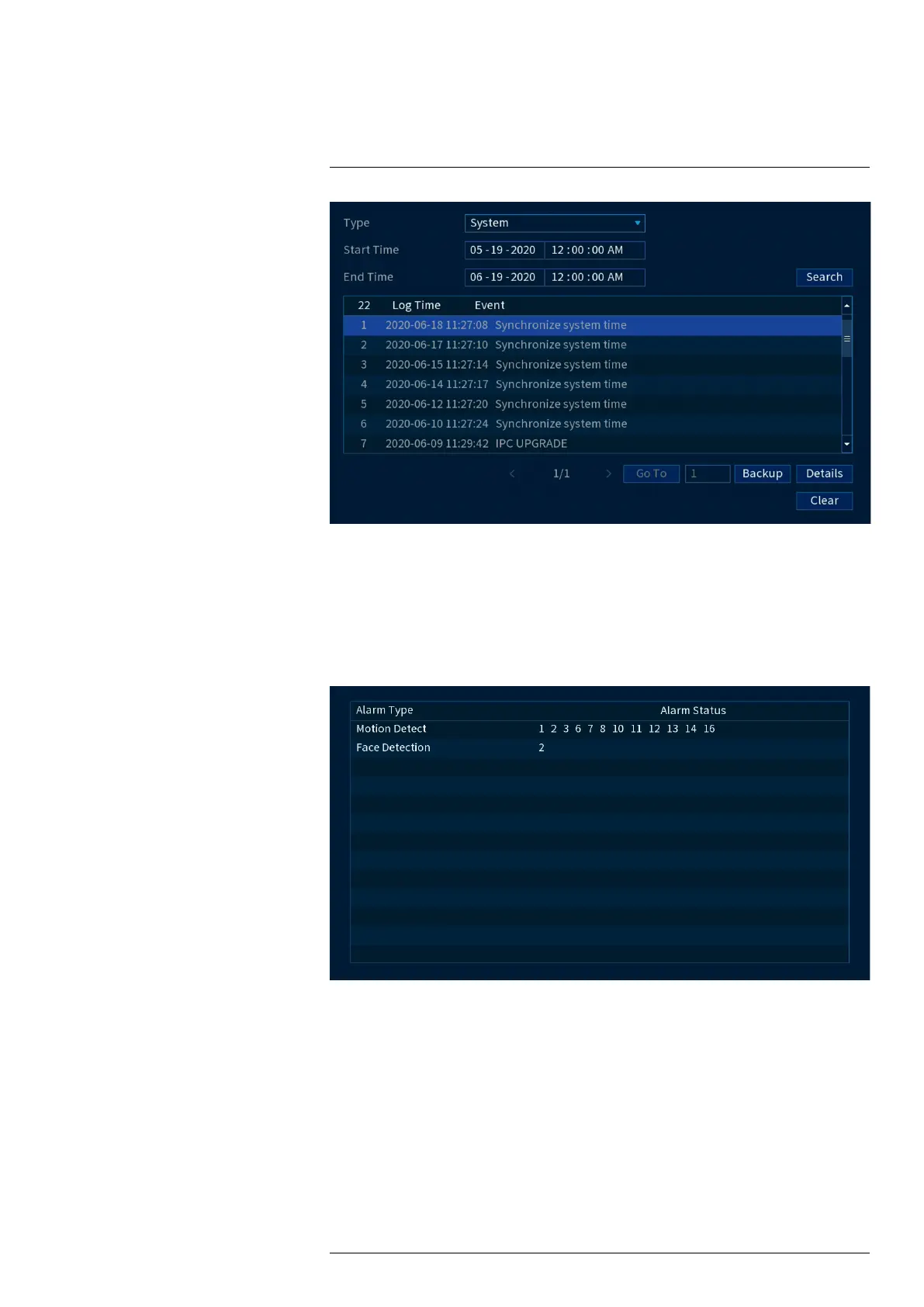

To access the log menu:
1. From the Live View display, right-click to open the Quick Menu, then click Main Menu.
2. Click INFORMATION, then click the Log tab on the side panel.
17.5.5 Alarm
View a summary of active system alarms. Activated alarms are highlighted in white. Additional
info such as channels that are currently detecting motion is shown.
The following alarms are shown in the Alarm Status menu:
• Motion Detect: Shows channels with active motion alarms.
• Smart Motion: Shows channels with active smart motion alarms.
To access Alarm Status:
1. From the Live View display, right-click to open the Quick Menu, then click Main Menu.
2. Click INFORMATION, then click the Alarm tab on the side panel.
17.5.6 Online Users
View all users connected to the system using computers or mobile devices.
#LX400113; r. 9.0/57191/57191; en-US 66
