Using the Main Menu16

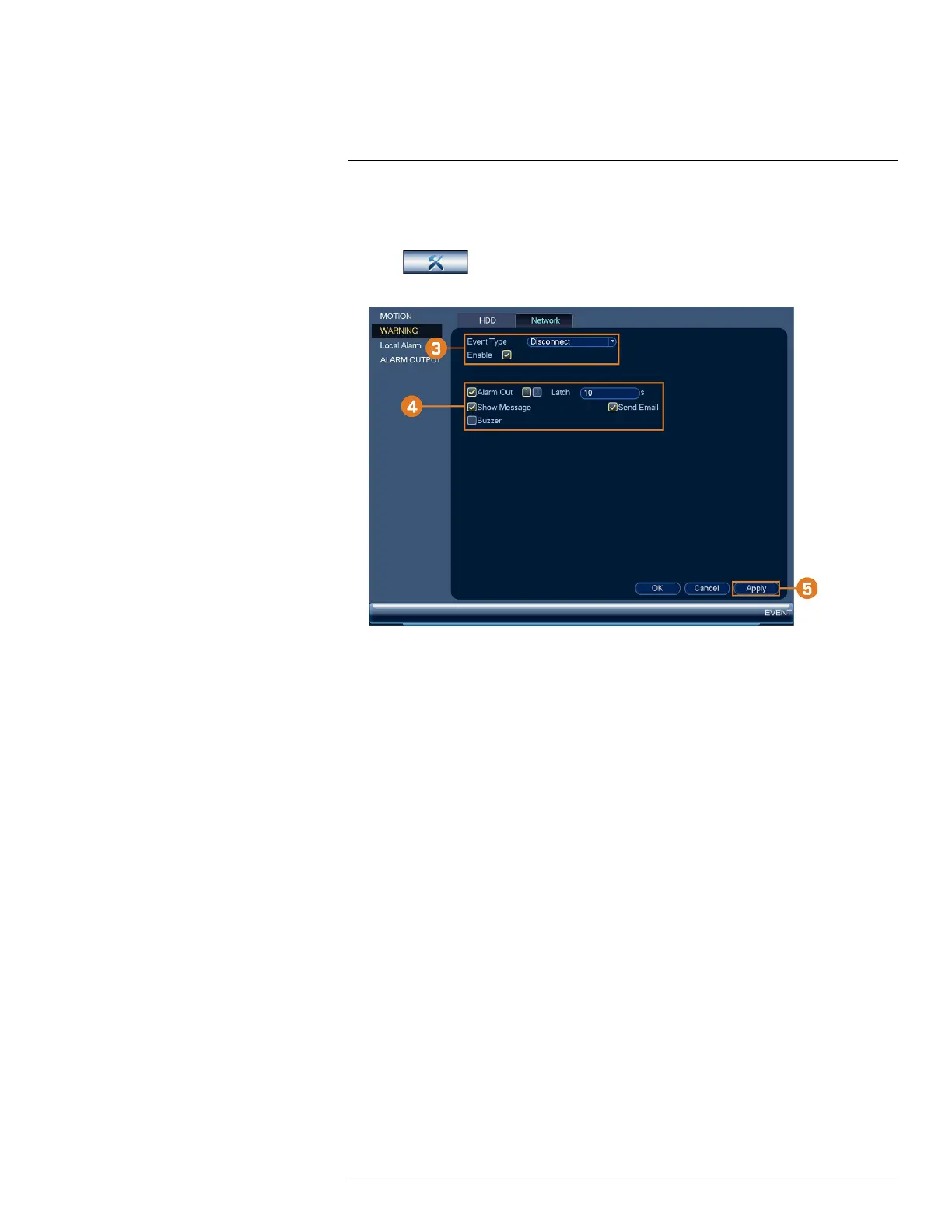

To configure network warnings:
1. From the Live View display, right-click to open the Quick Menu, then click Main Menu.
2. Click
, then click EVENT. Click the WARNING tab on the side panel, then click
the Network tab on the top panel.
3. Under Event Type, select the event type you would like to configure. Check Enable to acti-
vate the selected warning.
• Disconnect: The system has lost connection to the network.
• IP Conflict: More than one device on your network has the same IP address.
• MAC Conflict: More than one device on your network has the same MAC address.
• All: Configure responses for all network events.
4. Configure the following for the selected event type:
• Alarm Out: Check the box to activate alarm output devices (not included) when the se-
lected event occurs. Select the alarm output devices that will be activated, then enter the
number of seconds the alarm output device(s) will activate after the selected event occurs
next to Latch.
• Show Message: Check to show a popup message when the selected event occurs.
• Send Email: Check to enable email alerts. You must configure email alerts before you will
be able to receive them (see 16.4.4 Configuring Email Alerts, page 78).
• Buzzer: Check to activate the system buzzer.
5. Click Apply to save changes.
16.4.11 Configuring Fan Warnings
Fan warnings will notify you if there is an issue with the system’s cooling fan.
To configure fan warnings:
1. From the Live View display, right-click to open the Quick Menu, then click Main Menu.
#LX400113; r. 3.0/56326/56332; en-US 85
