MAINTENANCE MANUAL OF ENGINE
103

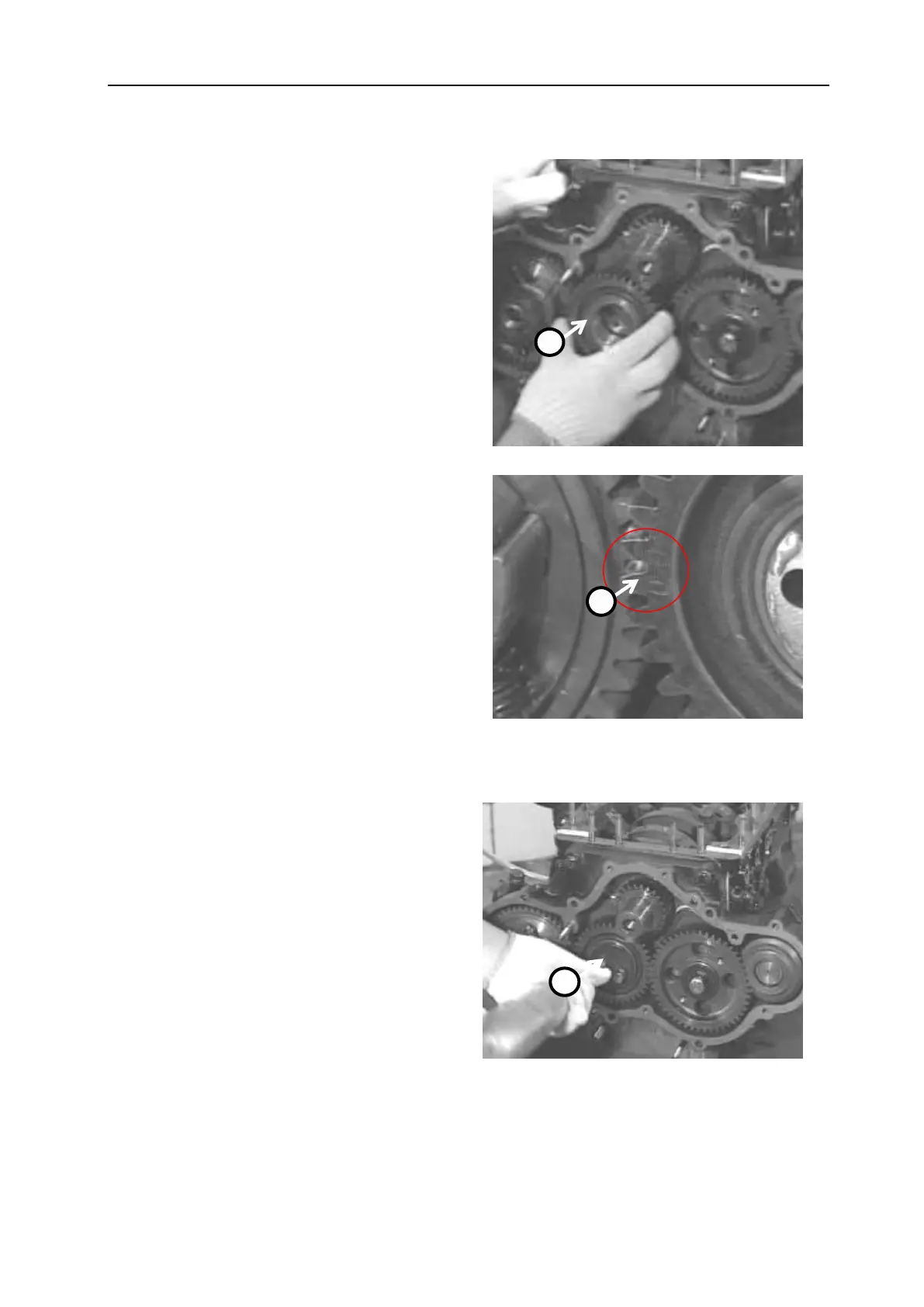

8. Install the intermediate idle gear.
A-Intermediate idle gear
B-Align marking
Attention: During installation of the intermediate
idle gear, it is required to align the three timing
marks with corresponding timing marks of the high
pressure fuel pump gear, camshaft gear, crankshaft
timing gear, and finally tighten the bolts.
9. Tighten the intermediate idle gear A.
A-Intermediate idle gear
A
B
A
