I

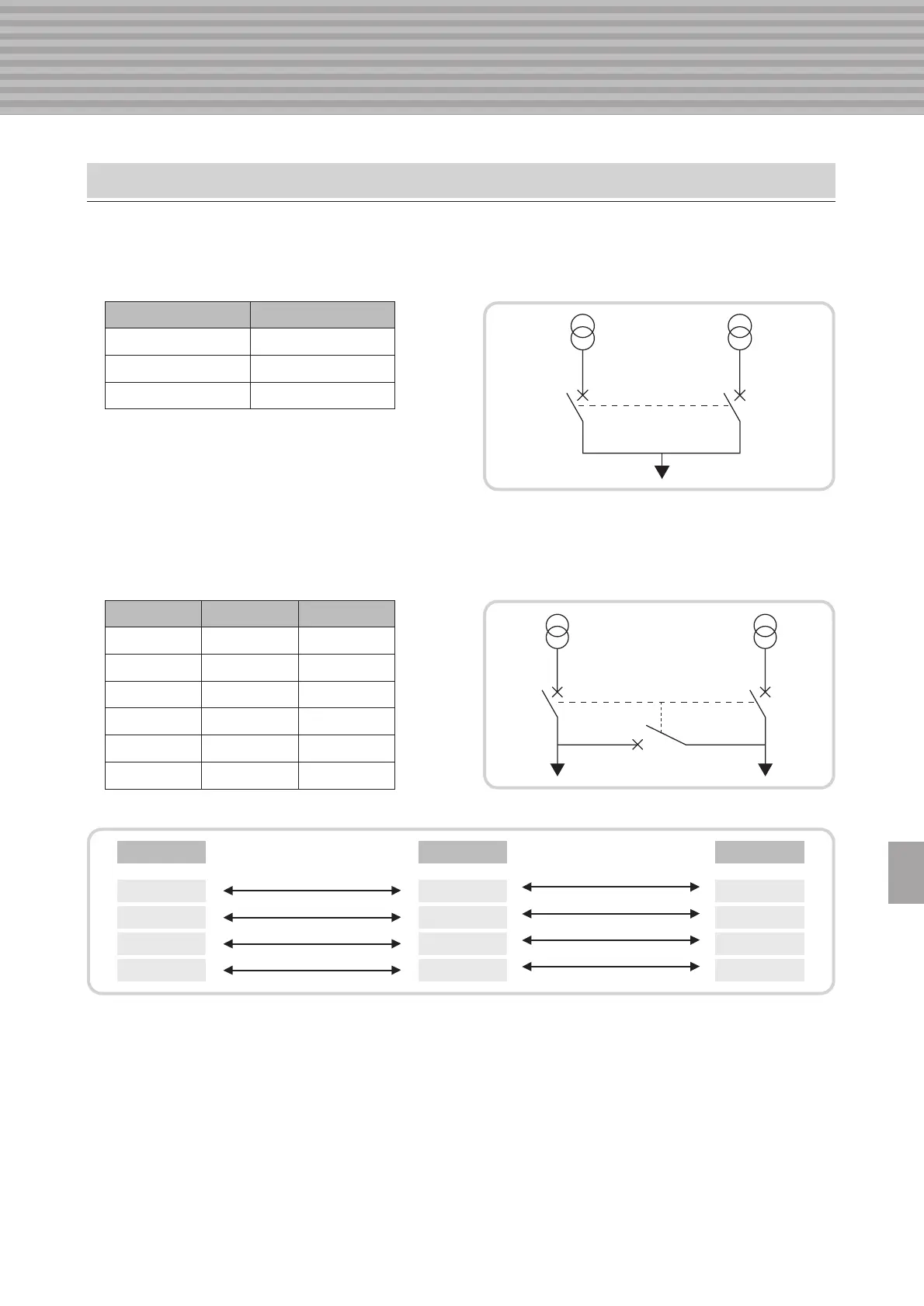

2. In Case of 2 ACBs with ATS Controller
If one of ACB is closed, another is not closed mechanically or electrically due to interlocking system.
Operating Status
ACB1
ACB2
OFF OFF
ON OFF
OFF ON
3. In Case of 3 ACBs with ATS Controller
If two ACBs among three of them are closed, the other is not closed mechanically or electrically due to
interlocking system.
Operating Status
5. WIRE Type
Interlocking is available regardless of Ampere Frame and number of poles. The standard length of wire is 2m.
4. BAR Type
ACB1 ACB2 ACB3
OFF OFF OFF
ON OFF OFF
ON ON OFF
OFF ON ON
OFF OFF ON
ON OFF ON
ACB1 ACB2 ACB3
2000AF 2000AF 2000AF
4000AF 4000AF 4000AF
3Pole 3Pole 3Pole
4Pole 4Pole 4Pole
ACB1
ACB1
ACB2
ACB3
ACB2


