LS Industrial Systems Metasol Series - Key Configuration; LED Information; N Type KEY; LED; A, P, S Type KEY; LED

30
Technical catalog for Susol & Metasol ACB
Technical catalog for Susol & Metasol ACB
D
D






No
LED Type
Function
Menu
TAP
Up cursor
Down cursor
Enter
Reset/ESC
Measurement display Menu Display, Menu display Measurement Display
Fixed Display : A Type / Move the Screen(Left / Right) : P, S Type
Move the cursor up on screen or increment a setting value
Move the cursor down on screen or decrement a setting value
Enter into secondary menu or setting input
Reset errors or ESC from menu
LED Information
Key Configuration






No
Operational Mode
Alarm
Batt/SP
Ir
Isd/Ii
Ig
COMM
LED Indicating an overload (Turn on above 90%, Blink above 105%)
Self-Protection LED and Battery test LED
LED Indicating long-time delay
LED indicating short-time or instantaneous tripping
LED indicating ground-fault
LED indicating Communication
LED Type

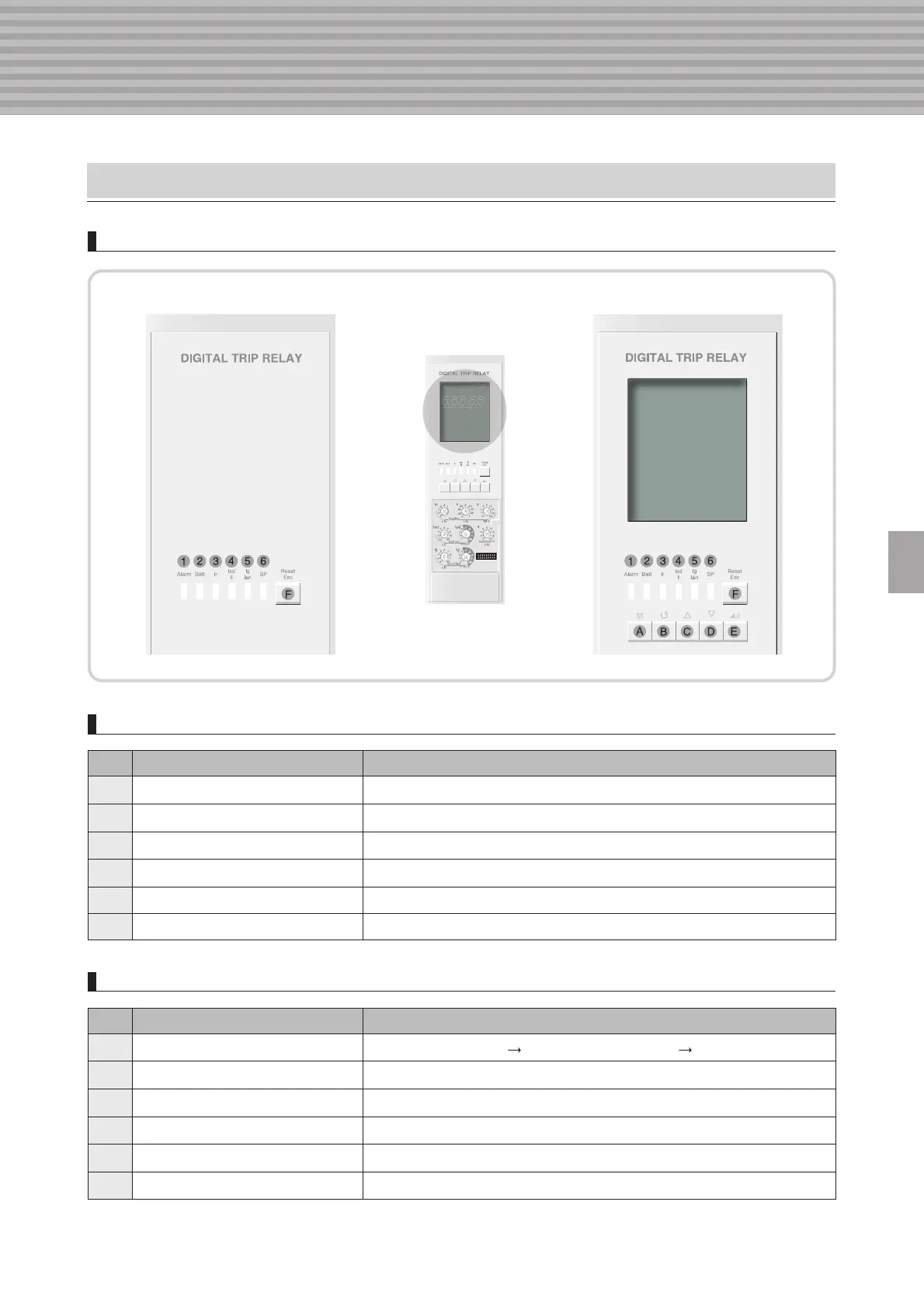

N Type KEY / LED / A, P, S Type KEY / LED
N Type KEY / LED A, P, S Type KEY / LED

