Technical catalog for Susol & Metasol ACB
Technical catalog for Susol & Metasol ACB
A
OCR with Multi-functions is to Satisfy Using Conditions for Diverse Customers’ Demand.
N Type A Type
P/ S Type
N Type (Normal)
A Type (Ammeter)
P Type (Power Meter)
S Type (Supreme)
Operate as a current relay with its self-power
Current Meter + Current Relay + DO Control (3scores) + Communication
Current / Voltage / Frequency / Energy Meter Type + Current Relay
+ Voltage + Frequency Relay + Communication
Every function of P type + Harmonics Analysis (63 harmonics)
+ Record Fault Frequency
L / S / I / G / Thermal / 

UV/OV/OF/UF/rP/Vun/Iun
Measurement :
V/A/W/Wh/F/PI
Harmornics(63rd)/
Waveform (S Type)
Communication (RS485)/
Fault waveform
ZSI / Override/MCR
SMPS : 110 ~ 220V
DC24 / 48V
Self Power
Timer mounted
Fault info. Kept by Battery
(256 faults + LED)
(Fault Info. + Fault waveform)
L / S / I / G / Thermal
ZSI / Override / MCR
Communication (RS485)
SMPS : 110 ~ 220V
DC24 / 48V
Self Power
Timer mounted
Fault info. Kept by Battery
(10 faults + LED)
(Fault / Current / Time / Date)
ZSI / Override/MCR
L / S / I / G / Thermal
Self Power
Timer mounted
Fault info. Kept by Battery
(LED)
12bit ADC
 SType

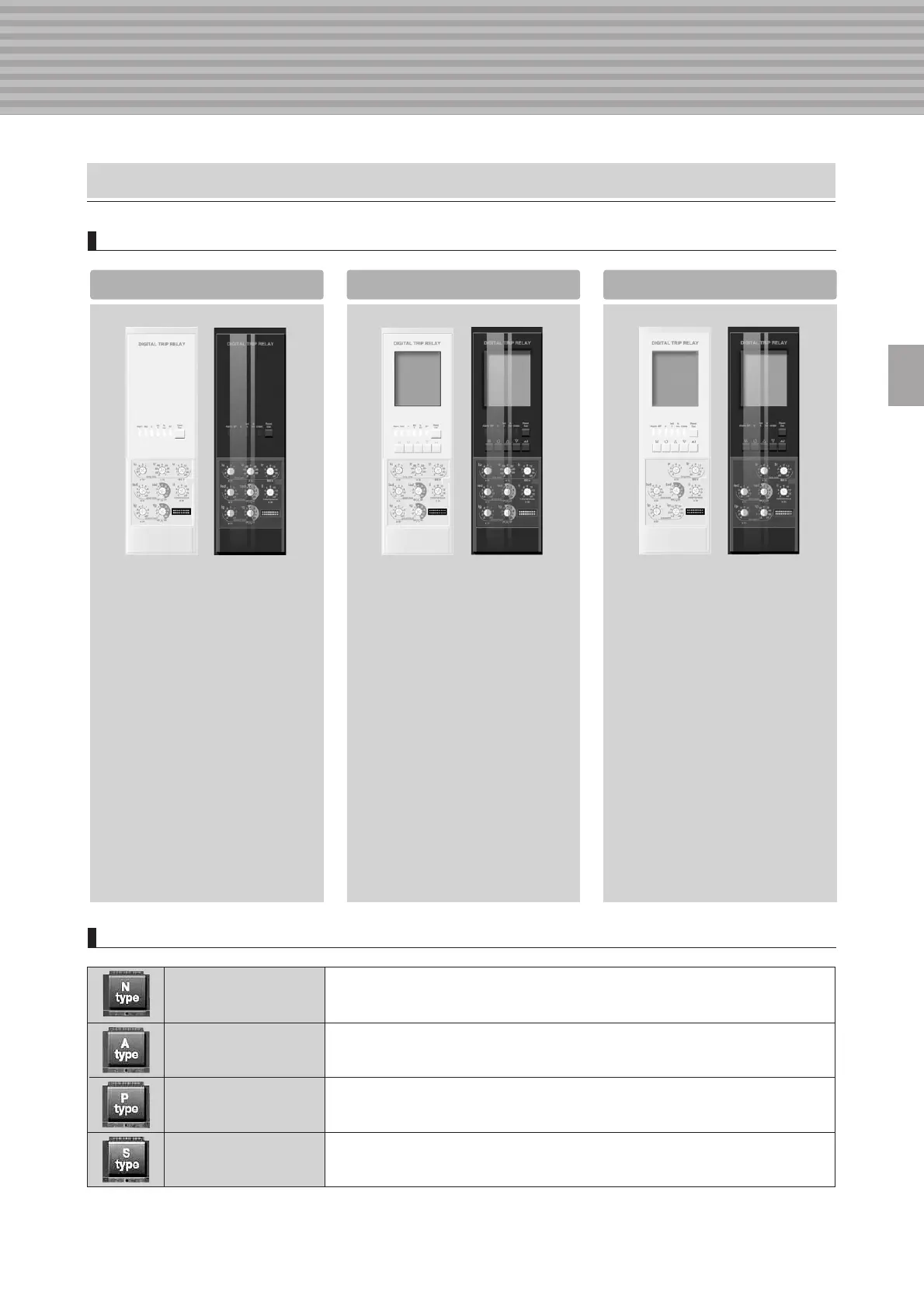

3. Introduction of Digital Trip Relay
OCR Characteristics by Each Type
Susol Metasol Susol Metasol Susol Metasol
