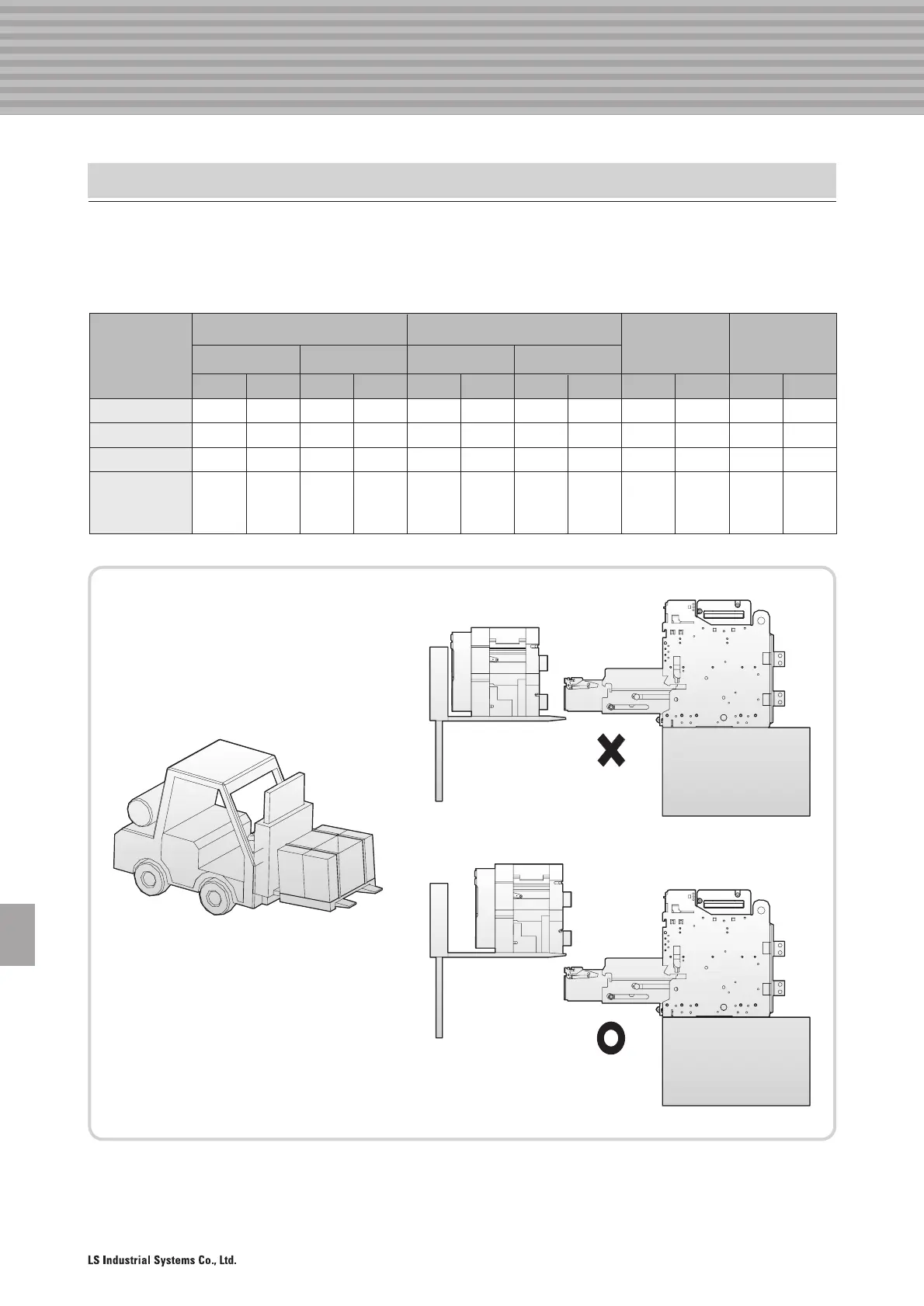

1. Transporting and Storage
Fig 1. Lifting by forklift
When lifting products with forklift, be careful with the bottom plane not to be beyond the rear side of products.
(Refer to fig.1)
This breaker and cradle are designed to move easily by overhead lifting devices such as hoisters. You can use lifting
hooks which is optional to move them without difficulty. All the carrying devices should be suited to the product’s
permissible weight which is presented in Table.1. In case of using forklift, refer to figure.1.
Type
2,000AF 4,000AF
Fixed Type
Draw-out Type
Cradle
Draw-in/ Out
Load
[kgf.cm]
3P
34
63
29
60/35
4P
44
74
32
70/45
3P
38
70
33
70/45
4P
47
85
40
80/50
3P
44
87
44
105/54
4P
55
103
50
110/55
3P
63
104
58
125/58
4P
100
147
70
135/60
3P
76
145
78
160/65
4P
94
173
90
170/70
3P
103
186
102
190/75
4P
130
230
124
195/85
1,600A 2,000A 3,000A
5,000AF 6,300AF
4,000A [Fork-Type]
Handling and Maintenance
[Based on kgf, IEC]
